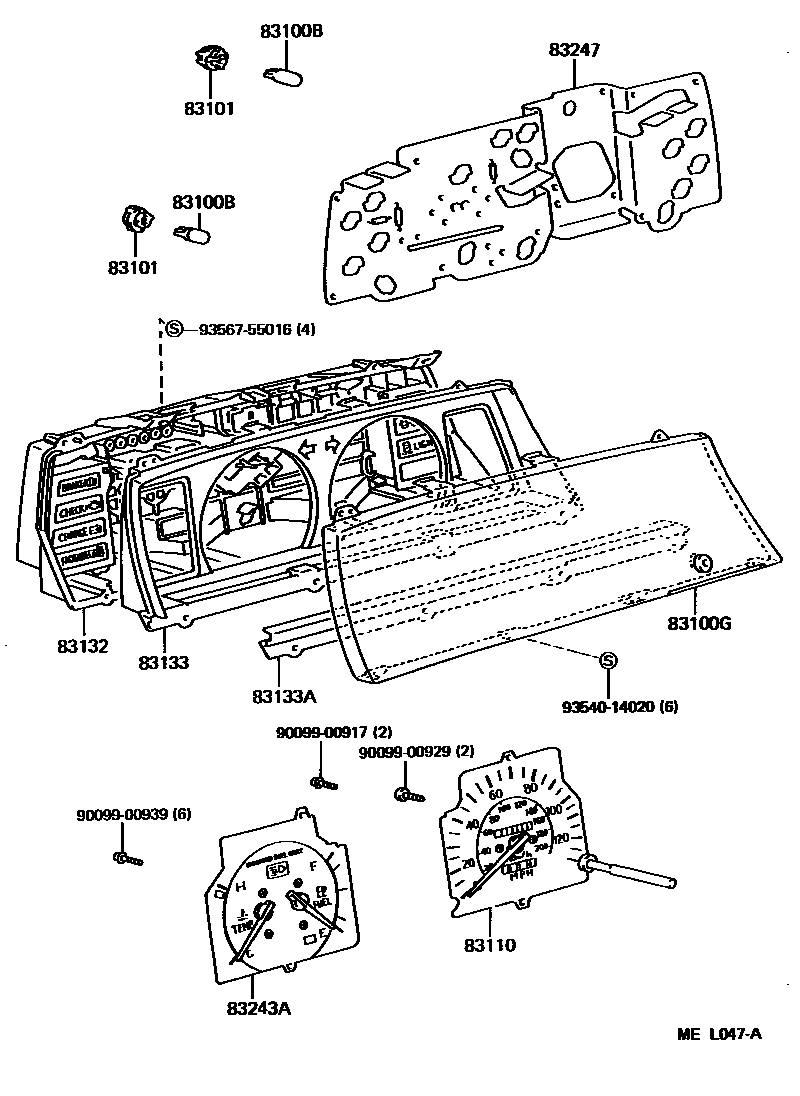

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main83109-10010i198807-199109
12V 1.4W,ORANGE CAP
main83109-24020×4i198807-199109
12V3.4W W(GREEN CAP)
main90981-11018×10i198807-199109
12V 1.2W W/O SOCKET
main99132-12034×15i198807-199109
12V 3.4W
83100GGLASS, COMBINATION METER
main83138-32050i198807-199109
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×14i198807-199109
NO.1
main83101-14040×11i198807-199109
NO.2
83110SPEEDOMETER ASSY
main83110-03050i199002-199102
W(TACHOMETER)
main83110-03051i199102-199109
W(TACHOMETER)
main83110-03060i199002-199102
W(TACHOMETER)
main83110-03061i199102-199109
W(TACHOMETER)
main83110-03070i199002-199102
main83110-03071i199102-199109
main83110-03080i199002-199102
main83110-03081i199102-199109
main83110-32522i198909-199002
W(TACHOMETER)
sub83110-32523
main83110-32562i198909-199002
sub83110-32563
main83110-32570i198807-198908
main83110-32571i198908-199002
sub83110-32572
main83110-32580i198807-198908
W(TACHOMETER)
main83110-32581i198908-199002
W(TACHOMETER)
sub83110-32582
83132CASE, COMBINATION METER
main83132-32500i198807-199109
W(TACHOMETER)
main83132-32520i198807-199109
main83132-32540i198807-199109
83133PLATE, COMBINATION METER, NO.1
main83133-32550i198807-199109
main83133-32690i198807-199109
W(TACHOMETER)
83133APLATE, COMBINATION METER, NO.2
main83133-32610i198807-199109
83243AGAUGE SUB-ASSY, FUEL RECEIVER
main83243-32670i198807-199109
W(TACHOMETER)
main83243-32690i198807-199109
main83243-32710i198909-199109
W(TACHOMETER)
83247PLATE, METER CIRCUIT
main83247-32480i198807-199109
main83247-32780i198807-199109
main83247-32880i198807-199109
W(TACHOMETER)
main83247-3H310i198909-199109
9009900917
main90099-00917
9009900929
main90099-00929
9009900939
main90099-00939
9354014020
main93540-14020
9356755016
main93567-55016
