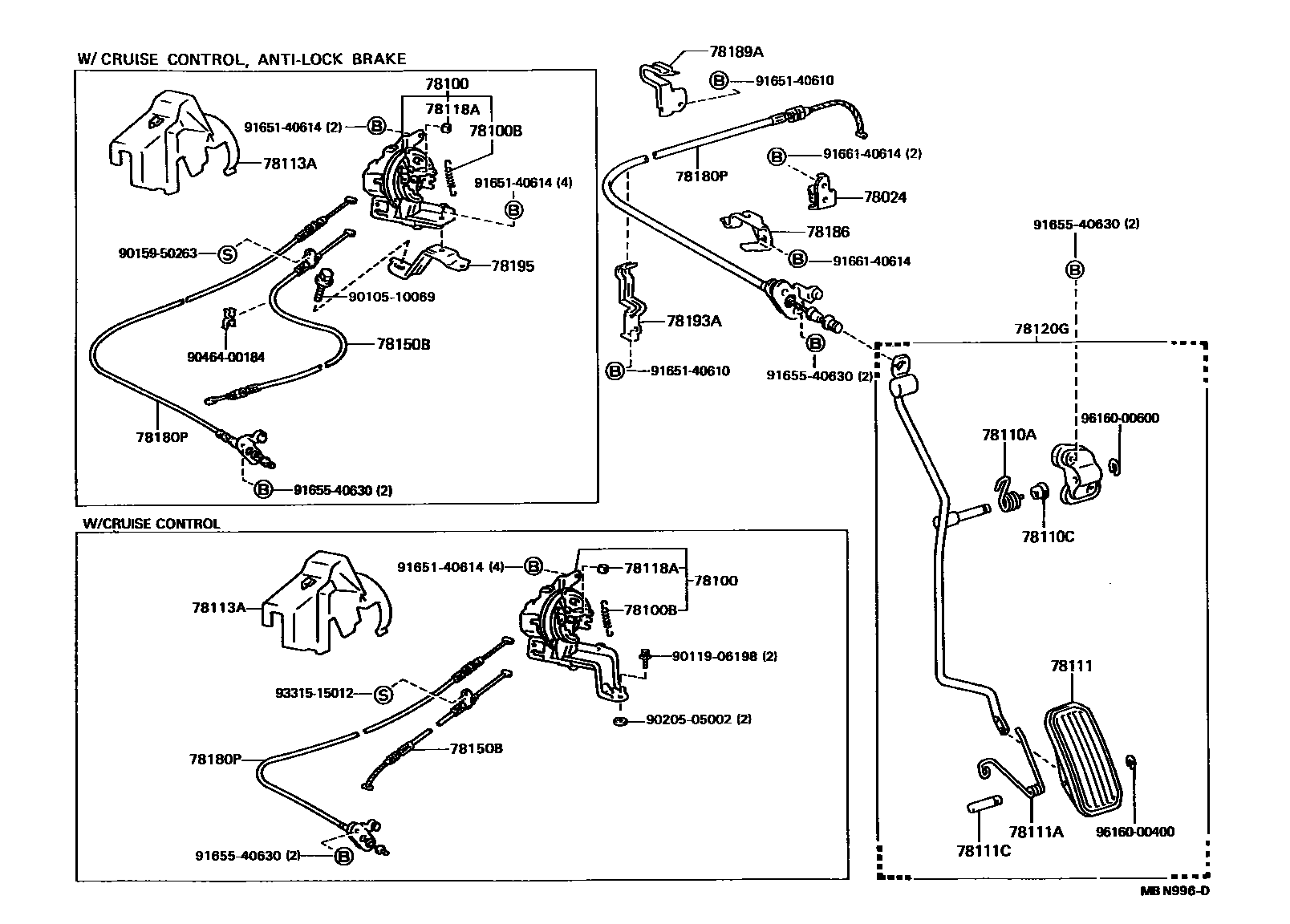

ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78100LINK ASSY, ACCELERATOR
W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)
W(CRUISE CONTROL)
78100BSPRING (FOR ACCELERATOR LINK)
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78110CBUSH (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78113ACOVER, AUTO DRIVE ACCELERATOR LINK
78118ASTOPPER, ACCELERATOR PEDAL
78120GROD ASSY, ACCELERATOR PEDAL
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
W(CRUISE CONTROL)
W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)
78180PCABLE ASSY, ACCELERATOR CONTROL
W(CRUISE CONTROL)
W(CRUISE CONTROL)
W(CRUISE CONTROL)
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3
78195BRACKET, ACCELERATOR LINK
9010510069
main90105-10069
9011906198
main90119-06198
9015950263
main90159-50263
9020505002
main90205-05002
9046400184
main90464-00184
9165140610
main91651-40610
9165140614
main91651-40614
9165540630
main91655-40630
9166140614
main91661-40614
9331515012
main93315-15012
9616000400
main96160-00400
9616000600
main96160-00600
29 parts on this diagram · 2 diagrams in section
