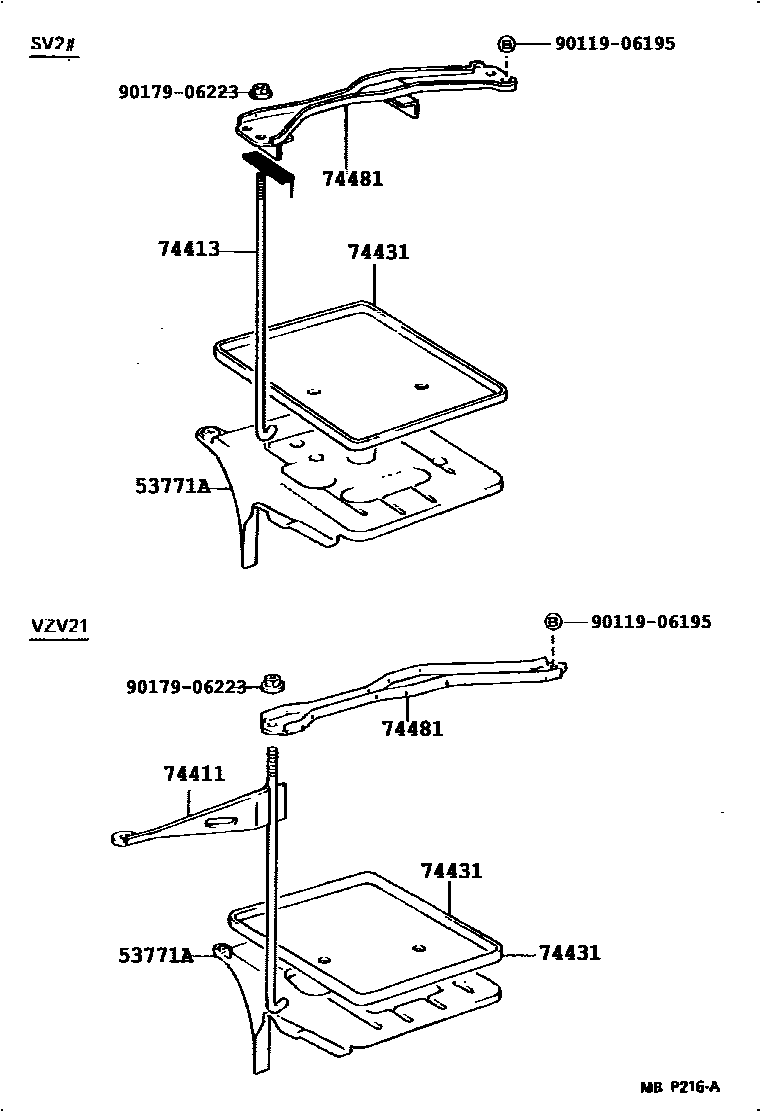

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-32020iSV21,VZV21198807-199109

74411CARRIER, BATTERY

main74403-32050iVZV21198909-199109

74413BOLT, BATTERY CLAMP

main74451-03010iSV21199011-199109

(L)

main74451-32010iSV21198807-199109

(J)

74431TRAY, BATTERY

main74431-03010iSV21,VZV21198807-199109

74481CLAMP, BATTERY HOLD DOWN

main74404-03010iSV21,VZV21..DX,LE198904-199109

(L)

main74404-03010iSV21..STD198904-199109

COLD SPEC,(L)

main74404-32050iSV21..4FC..(DX,LE)199003-199109

TAIWAN SPEC

main74404-32050iSV21..STD198807-199109

main74404-32070iSV21..STD198807-199109

COLD SPEC,(J)

main74404-32070iSV21..STD198807-199109

(J)

9011906195

main90119-06195

9017906223

main90179-06223

7 parts on this diagram · 1 diagram in section
