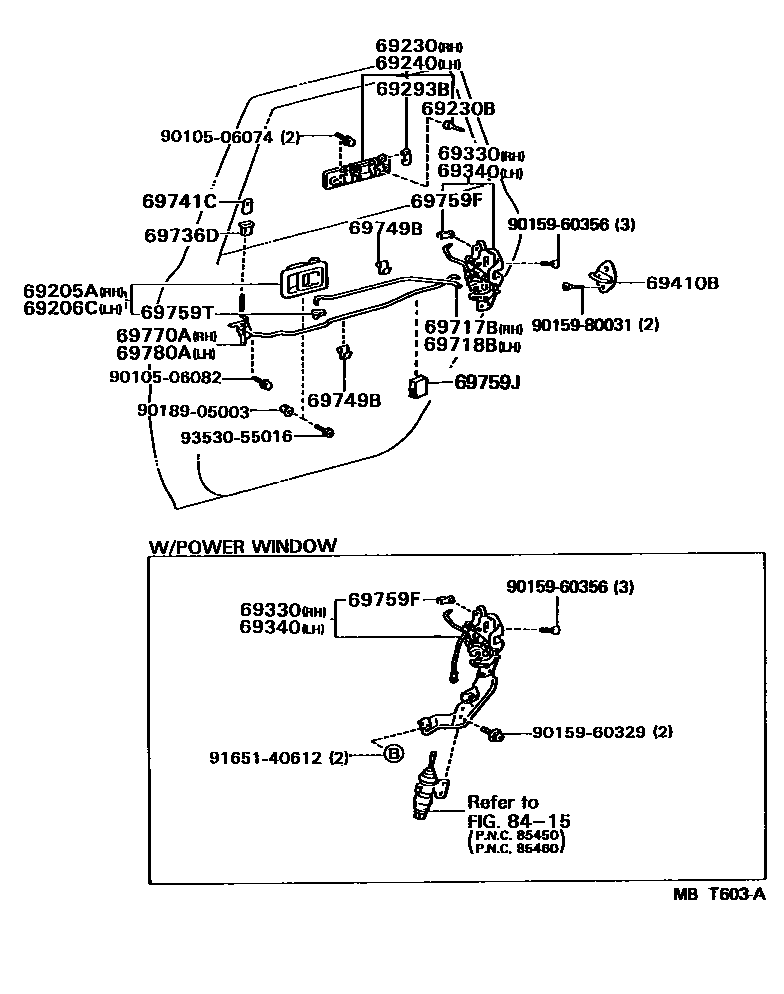

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
BLACK,202
RED MICA,3H4
GRAY M,167
GRAY M,167 ,29H
LIGHT BLUE M.M,8G2
ORANGISH GOLD M,4J8
DARK BROWN MICA,4J7
SUPER WHITE 2,040
DARK RED MICA,3J5
SILVER M,173
DARK BLUE M,8G5
BEIGE MICA M,4J1
RED MICA M,3J9
SUPER SILVER M 3,176
BLUE M,8J3
DARK BLUEISH GRAY M,185 ,20S
DARK BLUEISH GRAY M,185
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
BLACK,202
RED MICA,3H4
GRAY M,167
GRAY M,167 ,29H
LIGHT BLUE M M,8G2
ORANGIISH GOLD M,4J8
DARK BROWN MICA,4J7
SUPER WHITE 2,040
DARK RED MICA,3J5
SILVER M,173
DARK BLUE M,8G5
BEIGE MICA M,4J1
RED MICA M,3J9
SUPER SILVER M 3,176
BLUE M,8J3
DARK BLUEISH GRAY M,185 ,20S
DARK BLUEISH GRAY M,185
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69330LOCK ASSY, REAR DOOR, RH
W(POWER WINDOW)
69340LOCK ASSY, REAR DOOR, LH
W(POWER WINDOW)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69736DGUIDE, REAR DOOR LOCKING LINK
69741CKNOB, REAR DOOR LOCK CONTROL
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
LH
RH
69759JSILENCER, DOOR LOCK LINK
69759TSNAP, REAR DOOR INSIDE HANDLE
RH
LH
RH
LH
RH
RH
LH
LH
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
8415
9010506074
main90105-06074
9010506082
main90105-06082
9015960329
main90159-60329
9015960356
main90159-60356
9015980031
main90159-80031
9018905003
main90189-05003
9165140612
main91651-40612
9353055016
main93530-55016
28 parts on this diagram · 1 diagram in section
