INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

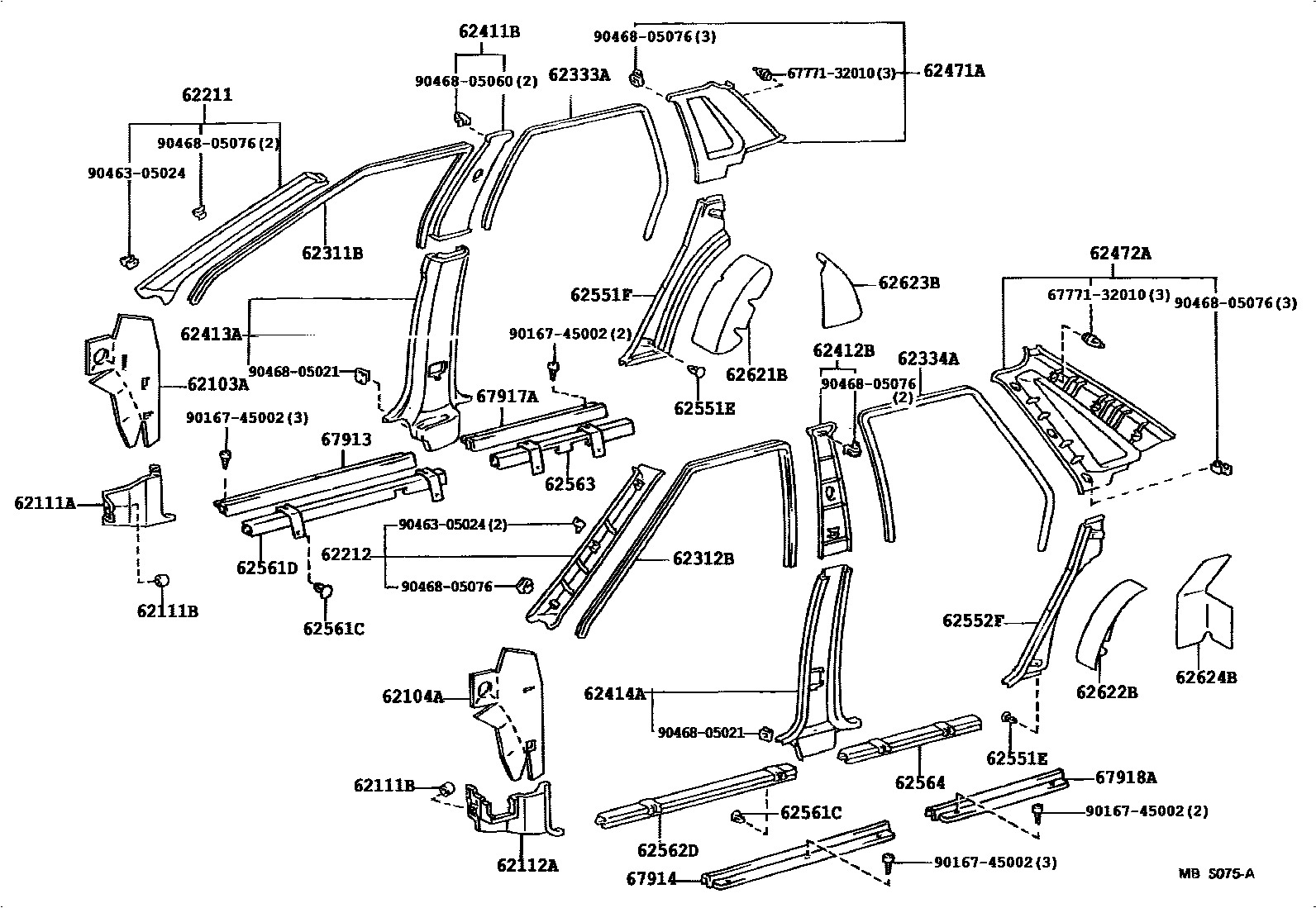

Parts diagram
62103AINSULATOR SUB-ASSY, COWL SIDE, RH
main62105-03010i198807-199109
62104AINSULATOR SUB-ASSY, COWL SIDE, LH
main62106-03010i198807-199109
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62101-03010-D0i198807-199109
MAROON,TRIM3#
main62101-03010-E0i198807-199109
BROWN,TRIM4#
main62101-03010-J0i198807-199109
DARK BLUE,TRIM8#
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06074×2i198807-199109
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62102-03010-D0i198807-199109
MAROON,TRIM3#
main62102-03010-E0i198807-199109
BROWN,TRIM4#
main62102-03010-J0i198807-199109
DARK BLUE,TRIM8#
62211GARNISH, FRONT PILLAR, RH
main62210-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62210-03010-D0i198807-199109
MAROON,TRIM3#
main62210-03010-E0i198807-199109
BROWN,TRIM4#
main62210-03010-J0i198807-199009
LIGHT BLUE,TRIM8#
62212GARNISH, FRONT PILLAR, LH
main62220-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62220-03010-D0i198807-199109
MAROON,TRIM3#
main62220-03010-E0i198807-199109
BROWN,TRIM4#
main62220-03010-J0i198807-199109
LIGHT BLUE,TRIM8#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62311-03010-D0i198807-199109
MAROON,TRIM3#
main62311-03010-E0i198807-199109
BROWN,TRIM4#
main62311-03010-J0i198807-199109
DARK BLUE,TRIM8#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62312-03010-D0i198807-199109
MAROON,TRIM3#
main62312-03010-E0i198807-199109
BR0WN,TRIM4#
main62312-03010-J0i198807-199109
DARK BLUE,TRIM8#
62333ATRIM, REAR DOOR OPENING, RH
main62333-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62333-03010-D0i198807-199109
MAROON,TRIM3#
main62333-03010-E0i198807-199109
BROWN,TRIM4#
main62333-03010-J0i198807-199109
DARK BLUE,TRIM8#
62334ATRIM, REAR DOOR OPENING, LH
main62334-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62334-03010-D0i198807-199109
MAROON,TRIM3#
main62334-03010-E0i198807-199109
BROWN,TRIM4#
main62334-03010-J0i198807-199109
DARK BLUE,TRIM8#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62411-03010-D0i198807-199109
MAROON,TRIM3#
main62411-03010-E0i198807-199109
BROWN,TRIM4#
main62411-03010-J0i198807-199109
LIGHT BLUE,TRIM8#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62412-03010-D0i198807-199109
MAROON,TRIM3#
main62412-03010-E0i198807-199109
BROWN,TRIM4#
main62412-03010-J0i198807-199109
LIGHT BLUE,TRIM8#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62413-03010-D0i198807-199109
MAROON,TRIM3#
main62413-03010-E0i198807-199109
BROWN,TRIM4#
main62413-03010-J0i198807-199109
DARK BLUE,TRIM8#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62414-03010-D0i198807-199109
MAROON,TRIM3#
main62414-03010-E0i198807-199109
BROWN,TRIM4#
main62414-03010-J0i198807-199109
DARK BLUE,TRIM8#
62471AGARNISH, ROOF SIDE, INNER RH
main62470-03020-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62470-03020-D0i198807-199109
MAROON,TRIM3#
main62470-03020-E0i198807-199109
BROWN,TRIM4#
main62470-03020-J0i198807-199109
LIGHT BLUE,TRIM8#
62472AGARNISH, ROOF SIDE, INNER LH
main62480-03020-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62480-03020-D0i198807-199109
MAROON,TRIM3#
main62480-03020-E0i198807-199109
BROWN,TRIM4#
main62480-03020-J0i198807-199109
LIGHT BLUE,TRIM8#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
main90467-06018-B0×4i198807-199109
MEDIUM GRAY,TRIM1#
main90467-06018-D0×4i198807-199109
MAROON,TRIM3#
main90467-06018-E0×4i198807-199109
BROWN,TRIM4#
main90467-06018-J0×4i198807-199109
DARK BLUE,TRIM8#
62551FGARNISH, REAR SEAT SIDE, RH
main62551-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62551-03010-D0i198807-199109
MAROON,TRIM3#
main62551-03010-E0i198807-199109
BROWN,TRIM4#
main62551-03010-J0i198807-199109
DARK BLUE,TRIM8#
62552FGARNISH, REAR SEAT SIDE, LH
main62552-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main62552-03010-D0i198807-199109
MAROON,TRIM3#
main62552-03010-E0i198807-199109
BROWN,TRIM4#
main62552-03010-J0i198807-199109
DARK BLUE,TRIM8#
62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)
main90467-11021-01×6i198807-199109
BLACK,TRIM1#,3#,4#,8#
sub90467-11068
62561DPROTECTOR, ROCKER PANEL, INNER FRONT RH
main62561-03010i198807-199109
62562DPROTECTOR, ROCKER PANEL, INNER FRONT LH
main62562-03010i198807-199109
62563PROTECTOR, ROCKER PANEL, INNER REAR RH
main62563-03010i198807-199109
62564PROTECTOR, ROCKER PANEL, INNER REAR LH
main62564-03010i198807-199109
62621BPAD, QUARTER WHEEL HOUSE, INNER FRONT RH
main62621-03010i198807-199109
62622BPAD, QUARTER WHEEL HOUSE, INNER FRONT LH
main62622-03010i198807-199109
62623BPAD, QUARTER WHEEL HOUSE, INNER REAR RH
main62623-03010i198807-199109
62624BPAD, QUARTER WHEEL HOUSE, INNER REAR LH
main62624-03010i198807-199109
67913PLATE, FRONT DOOR SCUFF, RH
main67913-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main67913-03010-D0i198807-199109
MAROON,TRIM3#
main67913-03010-E0i198807-199109
BROWN,TRIM4#
main67913-03010-J0i198807-199109
DARK BLUE,TRIM8#
67914PLATE, FRONT DOOR SCUFF, LH
main67913-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main67913-03010-D0i198807-199109
MAROON,TRIM3#
main67913-03010-E0i198807-199109
BROWN,TRIM4#
main67913-03010-J0i198807-199109
DARK BLUE,TRIM8#
67917APLATE, REAR DOOR SCUFF, RH
main67917-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main67917-03010-D0i198807-199109
MAROON,TRIM3#
main67917-03010-E0i198807-199109
BROWN,TRIM4#
main67917-03010-J0i198807-199109
DARK BLUE,TRIM8#
67918APLATE, REAR DOOR SCUFF, LH
main67917-03010-B0i198807-199109
MEDIUM GRAY,TRIM1#
main67917-03010-D0i198807-199109
MAROON,TRIM3#
main67917-03010-E0i198807-199109
BROWN,TRIM4#
main67917-03010-J0i198807-199109
DARK BLUE,TRIM8#
6777132010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32010
9016745002
main90167-45002
9046305024
main90463-05024
9046805021
main90468-05021
9046805060
main90468-05060
9046805076
main90468-05076

39 parts on this diagram · 1 diagram in section
