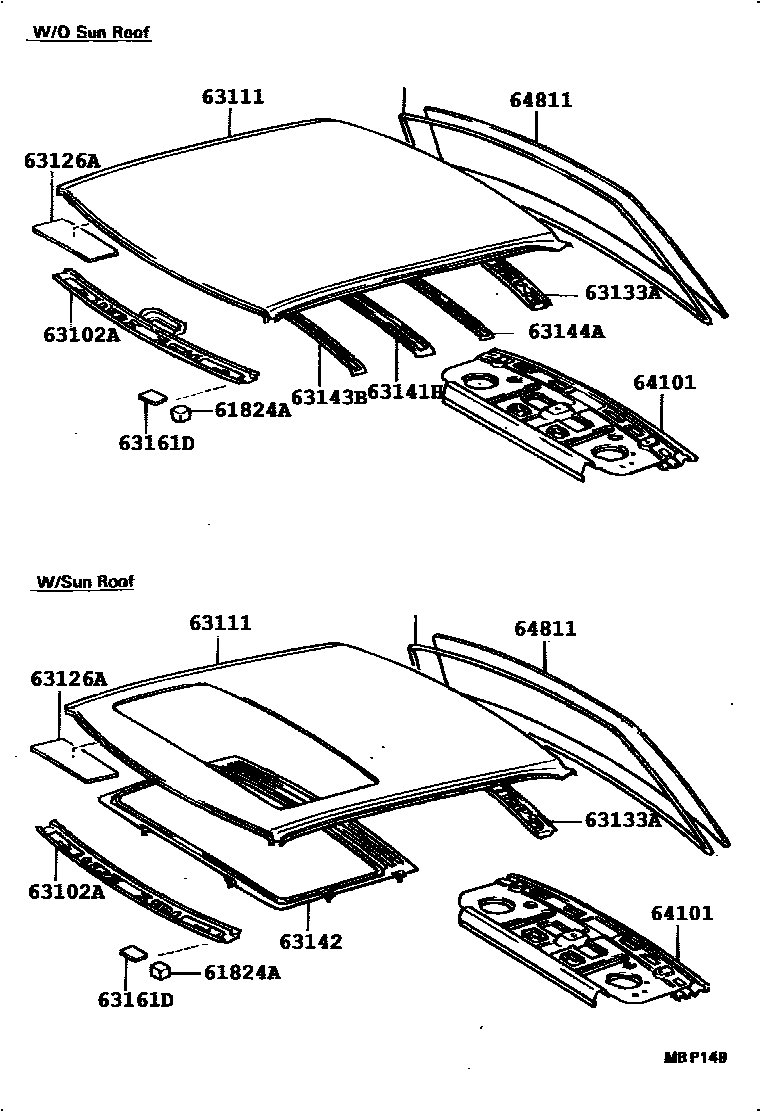

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

61824APLATE, NOISE CONTROL, NO.1

main61824-03020iSV21,VZV21198807-199109

60 X 60 X 60

main61824-03030iSV21,VZV21198807-199109

60 X 60 X 30

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-03010iSV21,VZV21..LE198807-199109

main63102-03020iSV21,VZV21..DX,STD198807-199109

W(MOON ROOF)

63111PANEL, ROOF

main63111-03010iSV21,VZV21198807-199109

main63111-03020iSV21,VZV21..DX,LE198807-199109

W(MOON ROOF)

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-32010iSV21,VZV21198807-199109

63133AFRAME, BACK WINDOW, UPPER

main63133-32020iSV21,VZV21198807-199109

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-32030iSV21,VZV21198807-199109

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-32020iSV21,VZV21..DX,LE198807-199109

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-32010iSV21,VZV21198807-199109

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-32010iSV21,VZV21198807-199109

63161DPLATE, ROOF HEADER PANEL, NO.1

main63161-03010iSV21,VZV21198807-199109

64101PANEL SUB-ASSY, UPPER BACK

main64101-03010iSV21,VZV21..LE198807-199109

main64101-03010iSV21,VZV21..DX198908-199109

W(SPLIT SEAT)

main64101-03020iSV21,VZV21..DX,STD198807-199109

64811GLASS, BACK WINDOW

main64811-03011iSV21,VZV21198807-199109

*EHTT,T=4.0,BLUE

main64811-03021iSV21,VZV21..LE198807-199109

*EHTT,T=4.0,BRONZE

main64811-03031iSV21,VZV21..LE198807-199109

*EHTT,T=4.0,BLUE,W(ANTENNA)

main64811-03041iSV21,VZV21..LE198807-199109

*EHTT,T=4.0,BRONZE,W(ANTENNA)

12 parts on this diagram · 2 diagrams in section
