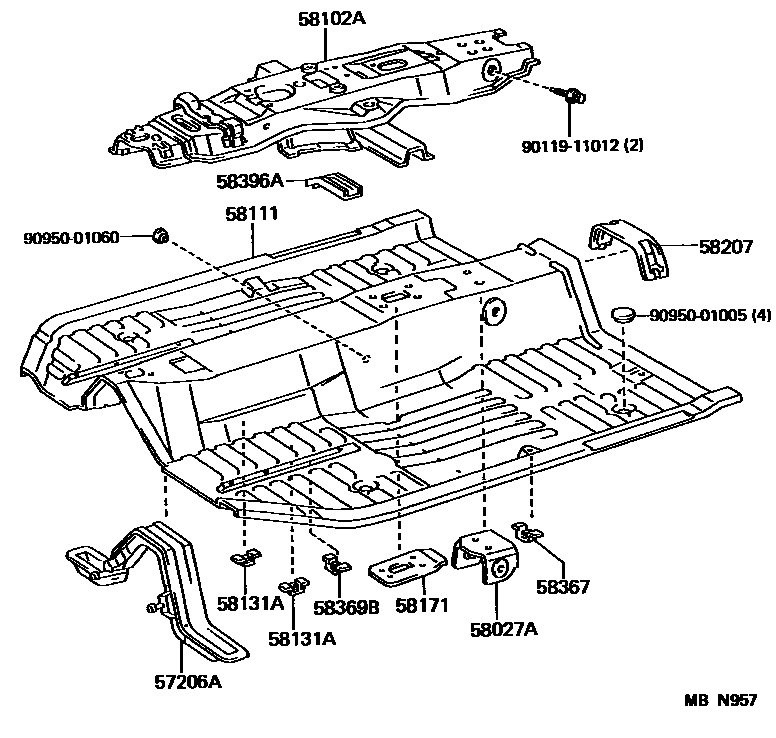

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-32010iSV21,VZV21198807-199109

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-32020iSV21,VZV21198807-199109

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-03900iSV21,VZV21198807-199109

58111PAN, FRONT FLOOR

main58111-03010iSV21,VZV21..4FC198807-199109

main58111-03020iSV21,VZV21..5F198807-199109

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-32010iSV21,VZV21198807-199109

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-03010iSV21,VZV21198807-199109

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-32020iSV21,VZV21198807-199109

58367BRACKET, FUEL TUBE CLAMP

main58266-22040iSV21,VZV21198807-199109

58369BBRACKET, FUEL TUBE, NO.3

main58369-32010iSV21,VZV21198807-199109

58396ABRACKET, WIRE HARNESS CLAMP

main58396-32010iSV21,VZV21198807-199109

9011911012

main90119-11012

9095001005

main90950-01005

9095001060

main90950-01060

13 parts on this diagram · 2 diagrams in section
