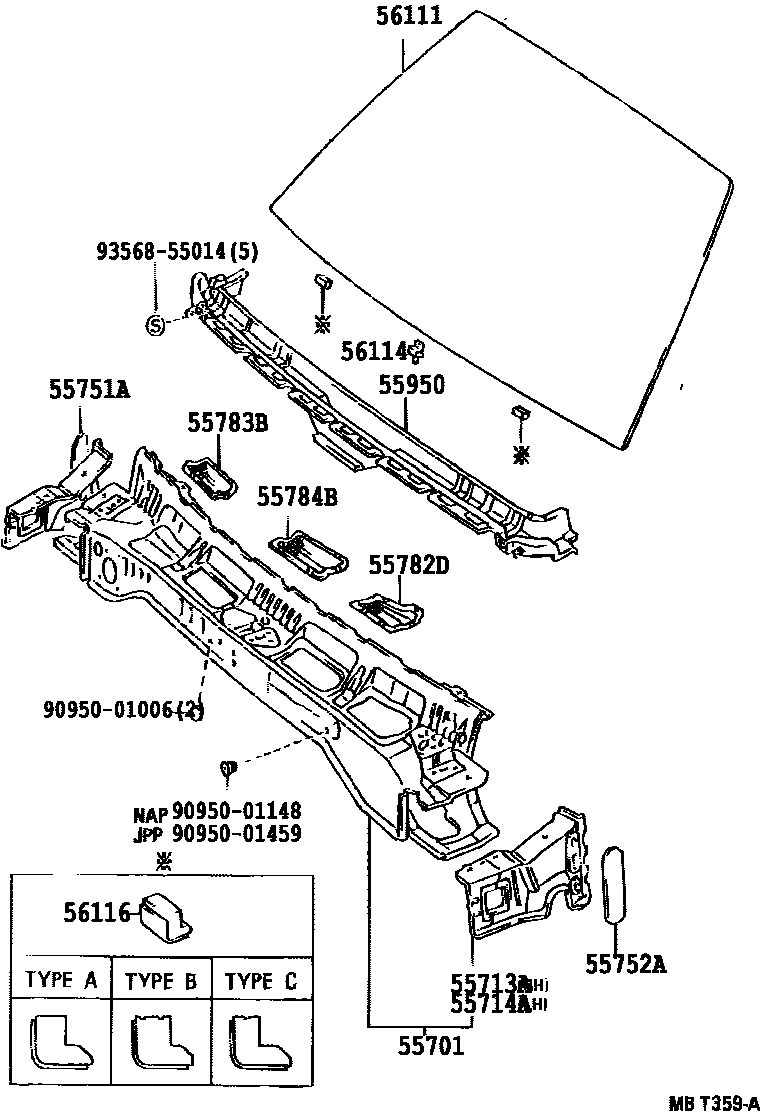

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-03010iSV21198807-198810

sub55700-03011

main55700-03011iSV21,VZV21198810-199109

55713APANEL, COWL TOP SIDE, RH

main55713-32020iSV21,VZV21198807-199109

55714APANEL, COWL TOP SIDE, LH

main55714-32020iSV21,VZV21198807-199109

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-03010iSV21,VZV21198807-199109

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55751-03010iSV21,VZV21198807-199109

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-03010iSV21,VZV21198807-199109

(L)

main55782-32030iSV21,VZV21198903-199109

(J)

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-03010iSV21,VZV21198807-199109

(L)

main55783-32030iSV21,VZV21198903-199109

(J)

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-03010iSV21,VZV21198807-199109

(L)

main55784-32030iSV21,VZV21198903-199109

(J)

55950NOZZLE ASSY, DEFROSTER

main55950-03010iSV21,VZV21198807-199109

56111GLASS, WINDSHIELD

main56111-03010iSV21,VZV21..DX,STD198807-199109

*TL,T=5.3

main56111-03021iSV21,VZV21..LE198807-199109

*TL,T=5.3

main56111-03030iSV21,VZV21..LE198807-199109

*TL,T=5.3,BRONZE

56114RETAINER, WINDSHIELD GLASS

main56114-03010iSV21,VZV21198807-199109

(L)

main56114-32010iSV21,VZV21198903-199109

(J)

56116SPACER, WINDSHIELD GLASS

main56116-32040iSV21,VZV21198807-199109

TYPE A

sub56116-32060

main56116-32060iSV21,VZV21198810-199109

TYPE C

9095001006

main90950-01006

9095001148

main90950-01148

9095001459

main90950-01459

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
