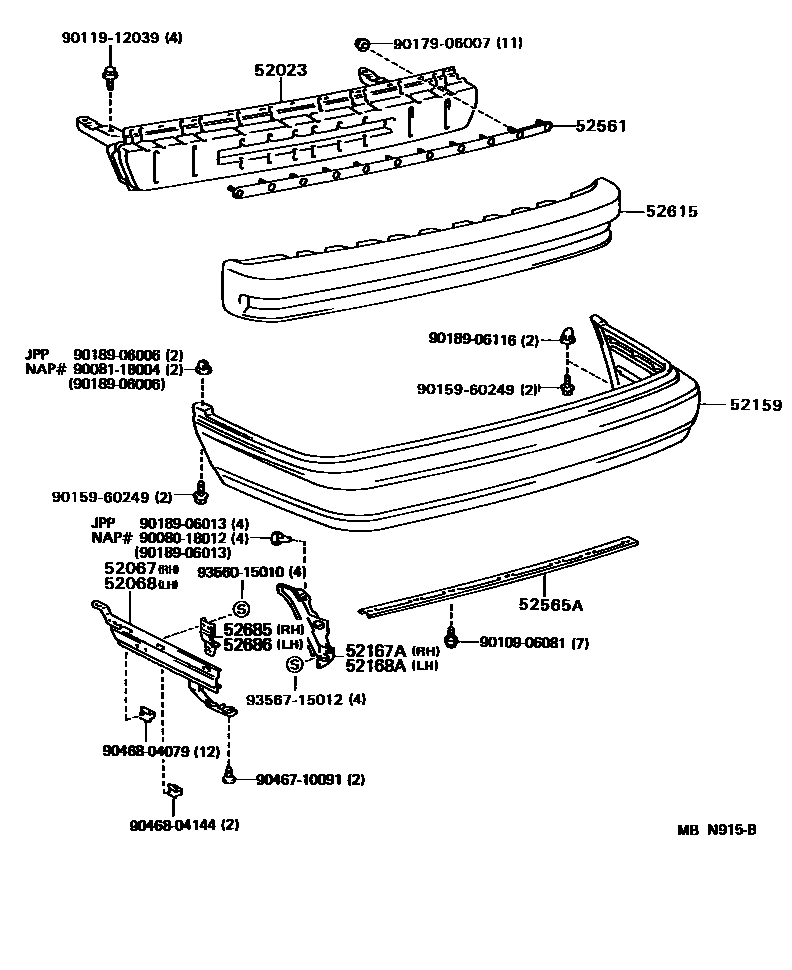

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-03010iSV21,VZV21198807-199109

52067SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH

main52067-32010iSV21,VZV21198807-199109

52068SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH

main52068-32010iSV21,VZV21198807-199109

52159COVER, REAR BUMPER

main52159-03010-A0iSV21,VZV21..DX,STD199009-199109

BLACK,040 ,176 ,185 ,202 ,3J5 ,3J9 ,4J1 ,8G2 ,8G5 ,8J3

main52159-03010-A0iSV21..DX,STD198807-198909

BLACK,040 ,167 ,173 ,202 ,3H3 ,3H4 ,4J6 ,4J7 ,8D8 ,8E3

main52159-03010-A0iSV21,VZV21..DX,STD198909-199009

BLACK,040 ,167 ,173 ,202 ,3H4 ,3J5 ,4J7 ,4J8 ,8G2 ,8G5

main52159-03900iSV21,VZV21..DX,LE198807-199109

52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH

main52167-03010iSV21,VZV21198807-199109

52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH

main52168-03010iSV21,VZV21198807-199109

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-03010iSV21,VZV21198908-199109

main52561-32030iSV21,VZV21198807-199109

52565ARETAINER, REAR BUMPER, LOWER

main52565-03010iSV21,VZV21198807-199109

52615ABSORBER, REAR BUMPER ENERGY

main52615-03010iSV21,VZV21198807-199109

52685SUPPORT, REAR BUMPER SIDE, NO.3 RH

main52685-03010iSV21,VZV21198807-199109

52686SUPPORT, REAR BUMPER SIDE, NO.3 LH

main52685-03010iSV21,VZV21198807-199109

9008018012

main90080-18012

9008118004

main90081-18004

9010906081

main90109-06081

9011912039

main90119-12039

9015960249

main90159-60249

9017906007

main90179-06007

9018906006

main90189-06006

9018906013

main90189-06013

9018906116

main90189-06116

9046710091

main90467-10091

9046804079

main90468-04079

9046804144

main90468-04144

9356015010

main93560-15010

9356715012

main93567-15012

25 parts on this diagram · 1 diagram in section
