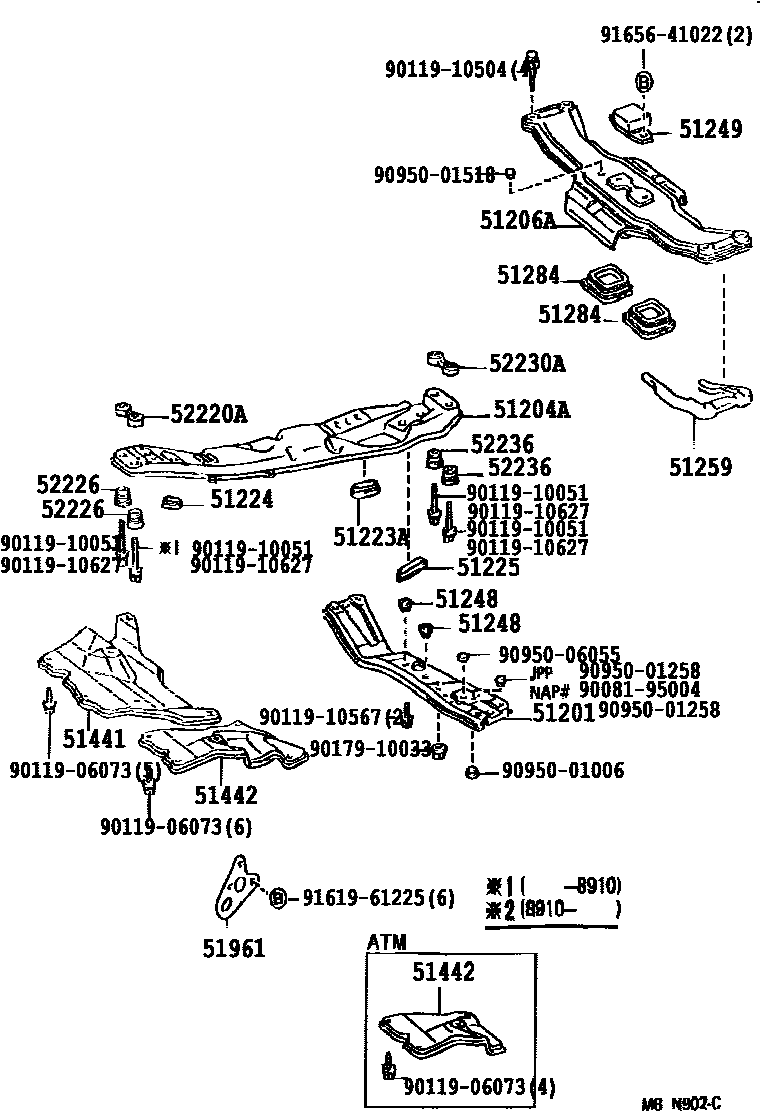

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-32020iSV21,VZV21198807-199109

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-32021iSV21198807-198904

main51204-32022iSV21198904-199002

sub90119-10567

main51204-32024iSV21,VZV21199004-199109

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-32010iSV21,VZV21198807-199109

51223ACOVER, ENGINE MOUNTING HOLE

main51223-32020iSV21,VZV21198807-199109

51224COVER, ENGINE MOUNTING HOLE, NO.2

main51224-32010iSV21,VZV21198807-199109

51225COVER, ENGINE MOUNTING HOLE, NO.3

main51225-32010iSV21,VZV21198807-199109

51248SPACER, FLAME CROSSMEMBER

main51248-32010×2iSV21,VZV21198807-199004

51249DAMPER, REAR SUSPENSION MEMBER

main51249-32010iSV21,VZV21198807-199109

51259PROTECTOR, REAR SUSPENSION MEMBER EDGE

main51259-32010iSV21,VZV21198807-199109

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-03010×2iSV21,VZV21198807-199109

51441COVER, ENGINE UNDER, NO.1

main51441-03010iSV21,VZV21198807-199109

51442COVER, ENGINE UNDER, NO.2

main51442-03010iSV21,VZV21..5F198807-199109

main51442-03020iSV21,VZV21..4FC198807-199109

51961HOOK, NO.1

main51963-32010×2iSV21,VZV21198807-199109

52220ACUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER

main52220-03010iSV21,VZV21198909-199109

(L)

main52220-32050iSV21,VZV21198807-199109

(J)

52226CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER

main52226-03010×2iSV21,VZV21198909-199109

(L)

main52226-32030×2iSV21,VZV21198807-199109

(J)

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-03010iSV21,VZV21198909-199109

(L)

main52230-32040iSV21,VZV21198807-199109

(J)

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-03010×2iSV21,VZV21198909-199109

(L)

main52236-32030×2iSV21,VZV21198807-199109

(J)

9008195004

main90081-95004

9011906073

main90119-06073

9011910051

main90119-10051

9011910504

main90119-10504

9011910567

main90119-10567

9011910627

main90119-10627

9017910033

main90179-10033

9095001006

main90950-01006

9095001258

main90950-01258

9095001518

main90950-01518

9095006055

main90950-06055

9161961225

main91619-61225

9165641022

main91656-41022

30 parts on this diagram · 1 diagram in section
