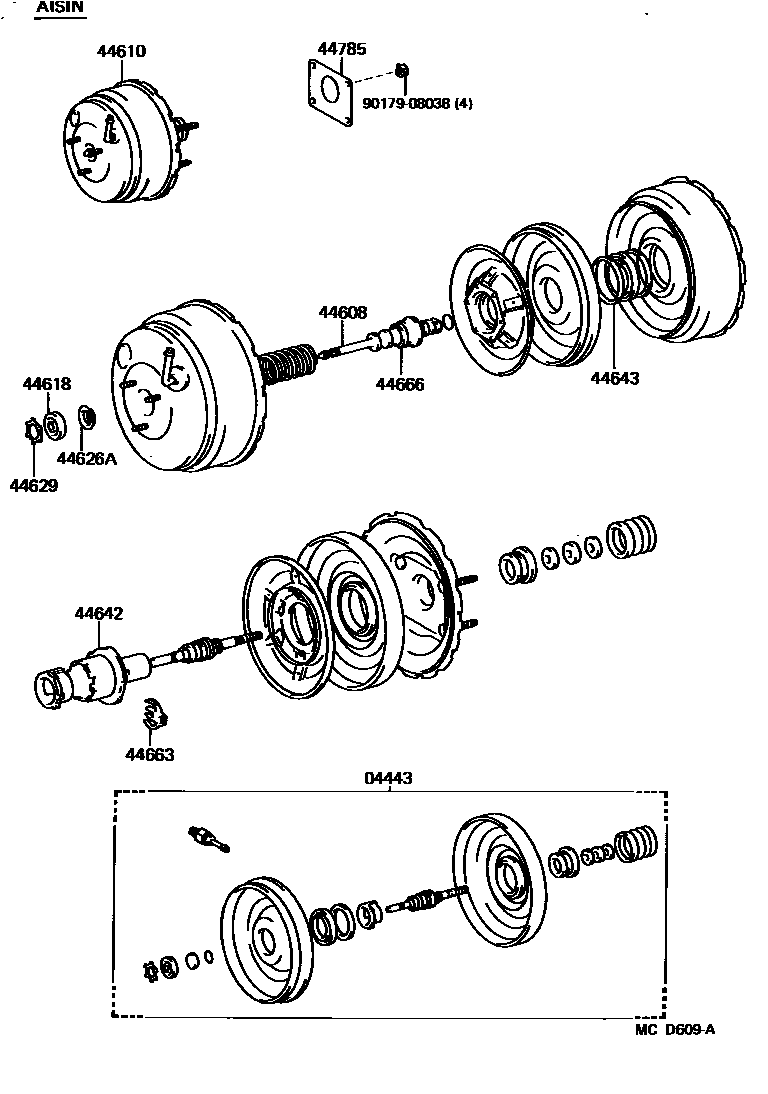

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-32270iSV21,VZV21198807-199109

main04443-32440iVZV21..LE198909-199109

W(*66)

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-20800iSV21,VZV21198807-199109

44610BOOSTER ASSY, BRAKE

main44610-03010iSV21,VZV21198811-198911

sub44610-03011

main44610-03011iSV21,VZV21198911-199109

main44610-32260iSV21198807-198811

sub44610-32300

main44610-32340iVZV21..LE198909-199109

W(*66)

44618SEAL, BOOSTER BODY

main44621-14030iSV21,VZV21198807-199109

44626ARETAINER, BOOSTER BODY SEAL

main44626-60010iSV21,VZV21198807-199109

44629RING, CIRCULAR INTERNAL

main44628-60010iSV21,VZV21198807-199109

44642PISTON, BRAKE BOOSTER

main44642-20800iSV21,VZV21198807-199109

44643RETAINER, DIAPHRAGM

main44643-20800iSV21,VZV21198807-199109

44663KEY, VALVE STOPPER

main44635-20800iSV21,VZV21198807-199109

44666CASE, REACTION DISC

main44657-30560iSV21,VZV21198807-199109

main44657-50010iVZV21..LE198909-199109

W(*66)

44785GASKET, BRAKE BOOSTER

main44785-32010iSV21,VZV21198807-199109

9017908038

main90179-08038

12 parts on this diagram · 3 diagrams in section
