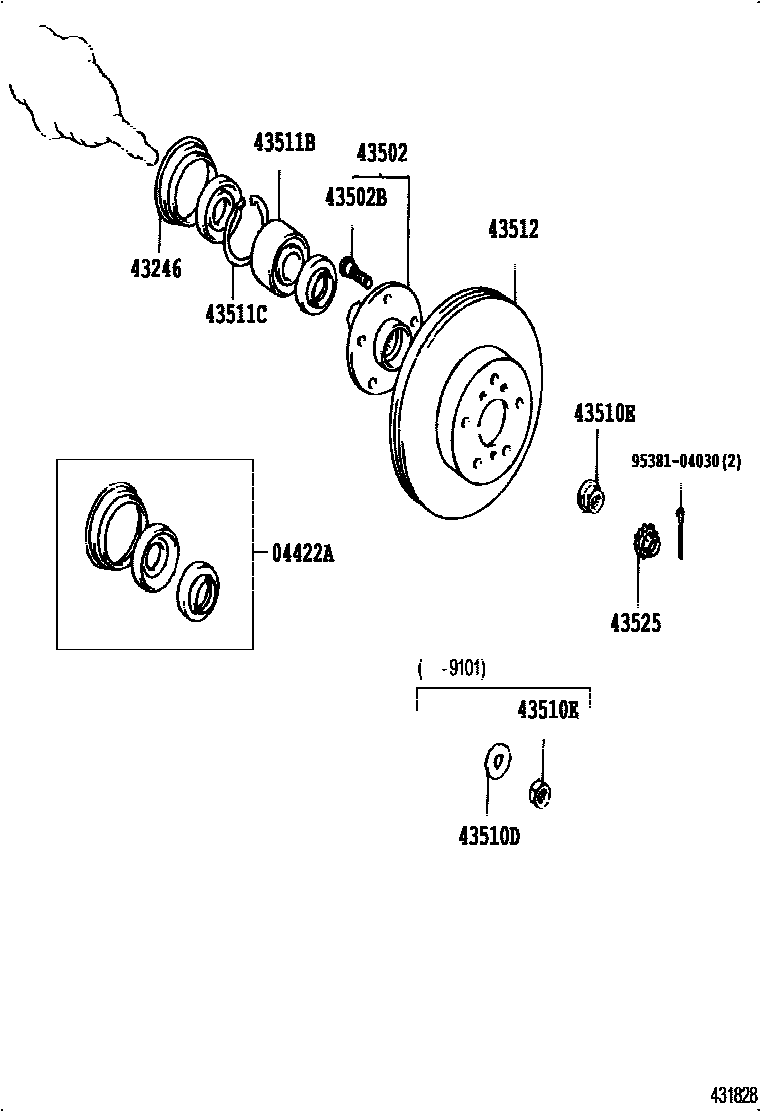

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-32010iSV21,VZV21198807-199109

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-32011iSV21,VZV21198807-199109

43502HUB SUB-ASSY, FRONT AXLE

main43502-32040iSV21198807-198908

sub43502-32050

main43502-32050iSV21,VZV21198908-199109

main43503-32020iVZV21..LE198904-199109

W(ABS)

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02049iSV21,VZV21198807-199109

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20012iSV21,VZV21198807-199101

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iSV21,VZV21198807-199101

43511BBEARING (FOR FRONT AXLE HUB)

main90080-36012iSV21,VZV21198812-199109

main90369-38003iSV21198807-198812

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iSV21,VZV21198807-199109

OD=79

43512DISC, FRONT

main43512-03010iSV21,VZV21198909-199109

(L)

main43512-32120iSV21,VZV21198807-199109

(J)

sub43512-32200

main43512-32210iVZV21..LE198909-199009

W(*66)

sub43512-32211

main43517-32020iVZV21..LE199009-199109

W(*66)

sub43512-32211

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iSV21,VZV21198807-199101

main43525-20030iSV21,VZV21199101-199109

9538104030

main95381-04030

11 parts on this diagram · 1 diagram in section
