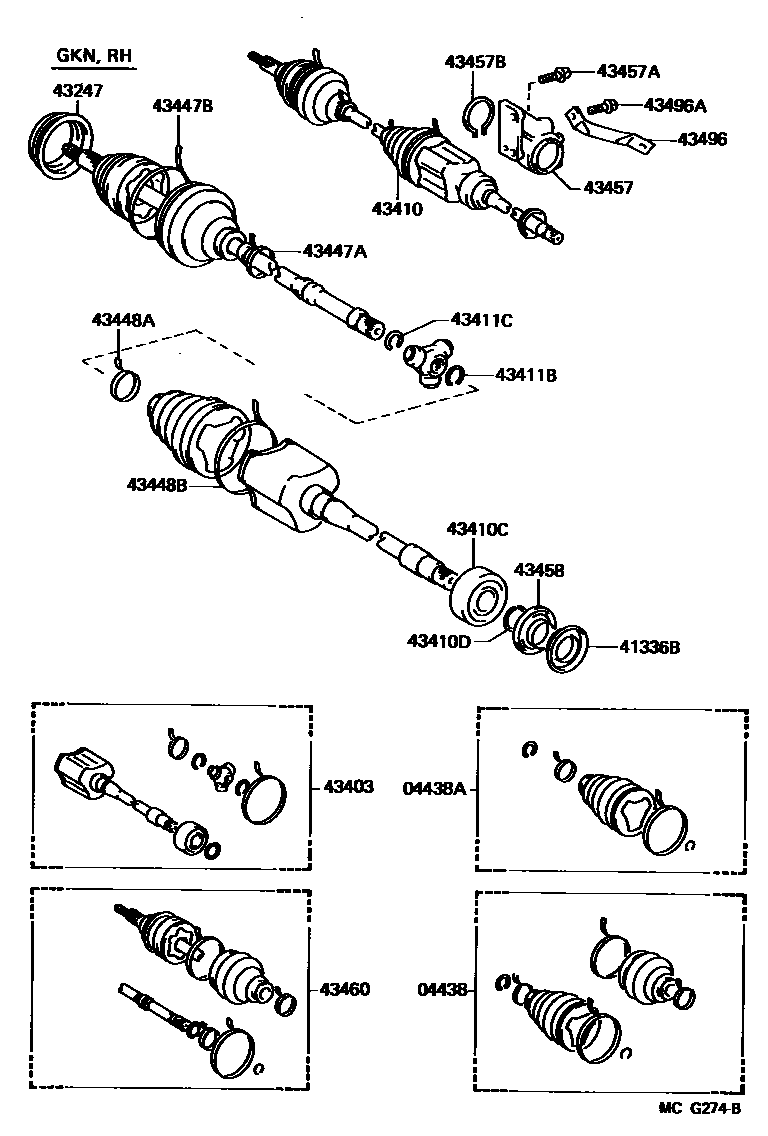

FRONT DRIVE SHAFT
04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2
sub43247-06020
43403JOINT SET, FRONT AXLE INBOARD, RH
43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43411CRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX19.8-8.3
43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
43496STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1
43496ABOLT (FOR DRIVE SHAFT BEARING BRACKET STAY)
sub90105-10361
21 parts on this diagram · 4 diagrams in section
