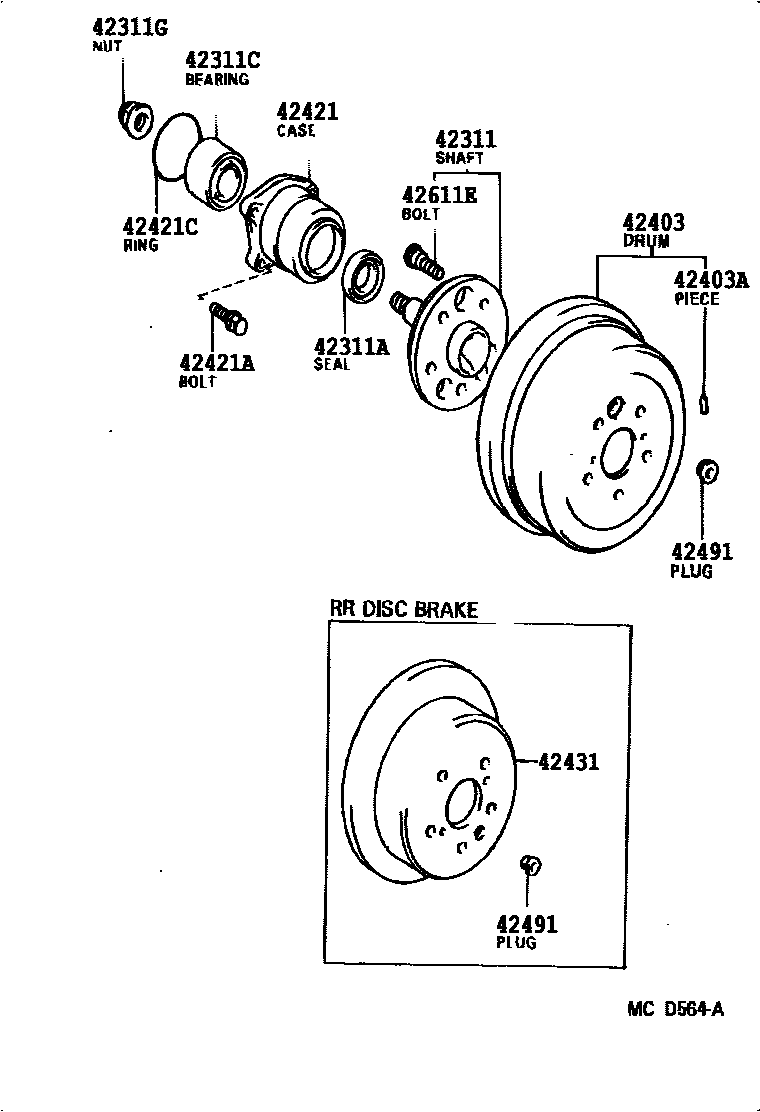

REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42301-32020iVZV21..LE198909-199109

W(*66)

sub42410-32050

main42301-32031iSV21,VZV21198807-199109

sub42410-20140

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iSV21,VZV21198807-199109

42311CBEARING(FOR REAR AXLE SHAFT)

main90080-36011iSV21,VZV21198812-199109

main90369-30044iSV21198807-198812

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20003iSV21,VZV21198807-199109

42403DRUM SUB-ASSY, REAR BRAKE

main42431-03010iSV21198909-199109

main42431-32030iSV21198807-199109

(J)

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90080-93004iSV21198909-199109

10G,(L)

main90080-93005iSV21198909-199109

20G,(L)

main90080-93006iSV21198909-199109

30G,(L)

main90937-01287iSV21198807-199109

10G,(J)

main90937-01288iSV21198807-199109

20G,(J)

main90937-01289iSV21198807-199109

30G,(J)

42421CASE, REAR AXLE BEARING

main42421-20020iSV21,VZV21198807-199109

sub42409-20010

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124iSV21,VZV21198807-199006

main90105-10309iSV21,VZV21199006-199109

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003iSV21,VZV21198807-199109

sub90301-63006

42431DISC, REAR

main42431-20090iVZV21198909-199109

sub42431-20160

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-14010iSV21198807-199109

main47491-22020iVZV21198909-199109

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iSV21,VZV21198807-199109

12 parts on this diagram · 1 diagram in section
