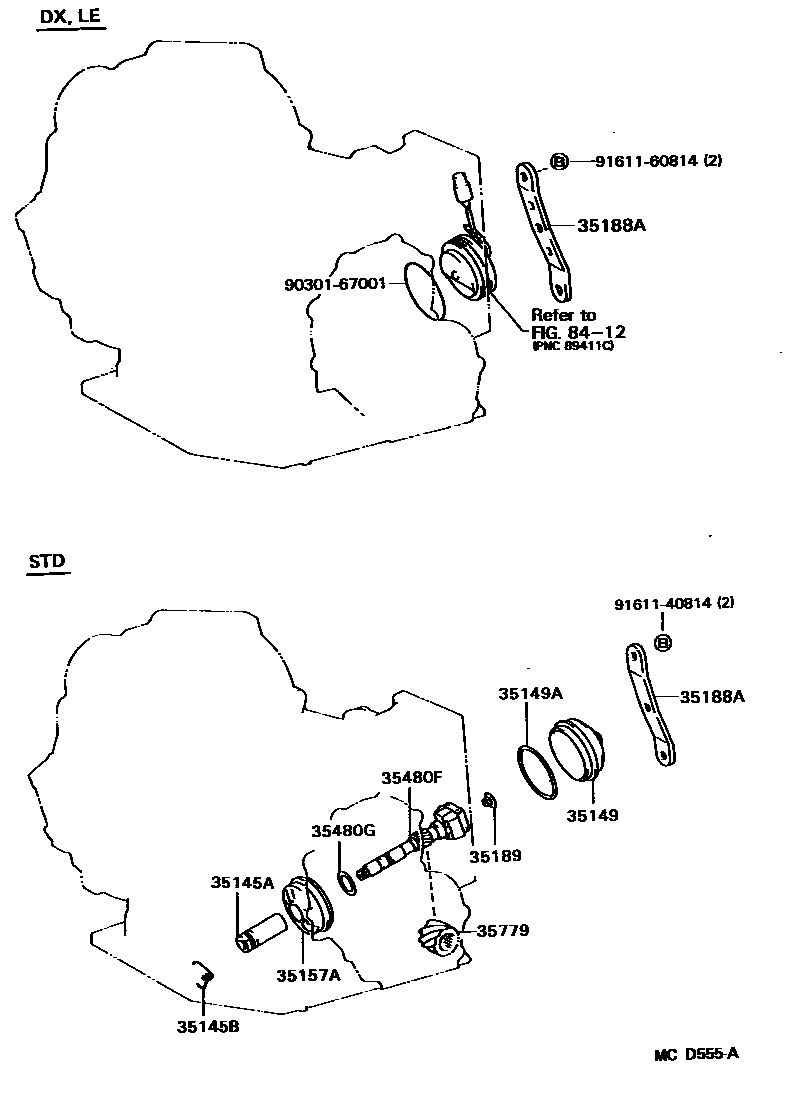

REAR OIL PUMP & GOVERNOR (ATM)

35145AADAPTER, GOVERNOR PRESSURE

main35145-32011iSV21..4FC..STD198807-199109

35145BSPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)

main90508-18034iSV21..4FC..STD198807-199109

35149COVER, GOVERNOR

main35149-32010iSV21..4FC..STD198807-199109

35149ARING, O (FOR GOVERNOR COVER)

main90301-67001iSV21..4FC..STD198807-199109

35157AADAPTER, GOVERNOR BODY

main35157-32011iSV21..4FC..STD198807-199109

35188ABRACKET, GOVERNOR COVER

main35188-32011iSV21..4FC198807-199109

35189WASHER, GOVERNOR THRUST, NO.1

main35189-32011iSV21..4FC..STD198807-199109

35480FBODY ASSY, GOVERNOR

main35480-32012iSV21..4FC..STD198807-199109

sub35480-32013

35480GWASHER, PLATE (FOR GOVERNOR BODY)

main90201-25003iSV21..4FC..STD198807-199109

35779GEAR, GOVERNOR DRIVE

main35779-32010iSV21..4FC..STD198807-199109

8412

9030167001

main90301-67001

9161140814

main91611-40814

9161160814

main91611-60814

14 parts on this diagram · 1 diagram in section
