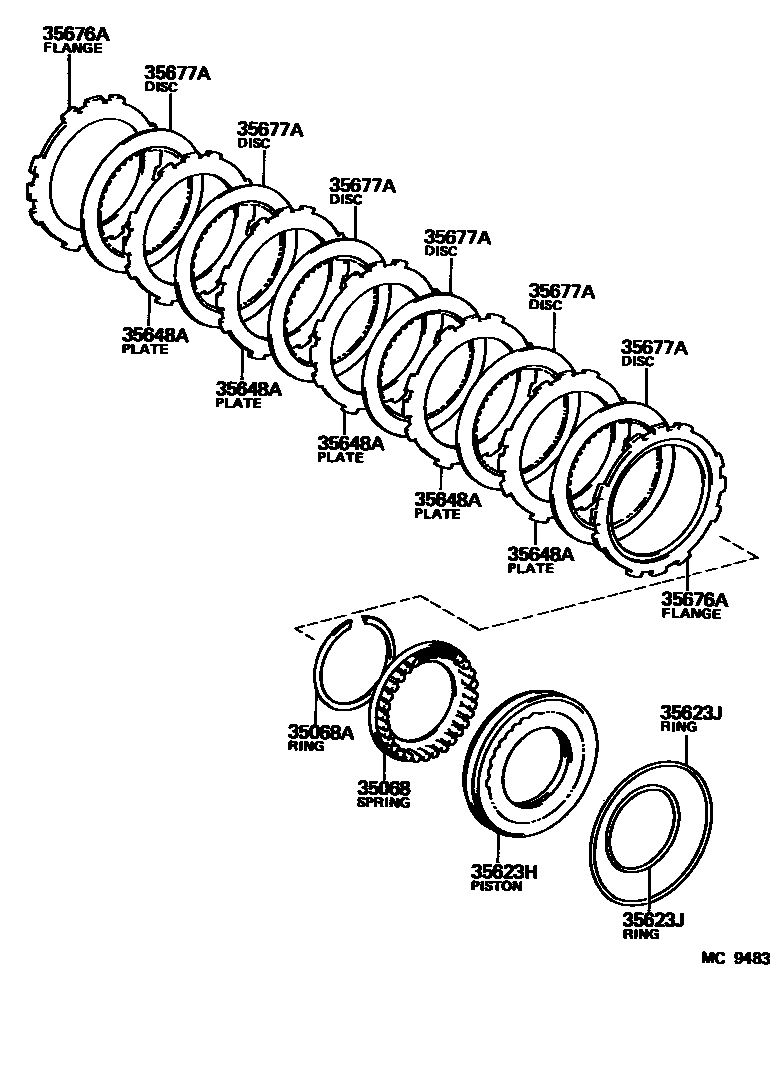

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1 0002 1

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iSV21..4FC198807-199109

sub35068-20010

main35068-32020iVZV21..4FC198909-199109

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-86004iVZV21..4FC198909-199109

main90520-90001iSV21..4FC198807-199109

35623HPISTON, 1ST & REVERSE BRAKE

main35623-32010iSV21..4FC198807-199109

main35623-32030iVZV21..4FC198909-199109

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-90001iVZV21..4FC198909-199109

INNER

main90301-94001iSV21..4FC198807-199109

INNER

main90301-99022iSV21,VZV21..4FC198807-199109

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iSV21..4FC198807-199109

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iSV21..4FC198807-199109

T=3.5

sub35676-12030

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-32040iSV21..4FC198807-199109

main35677-32060iVZV21..4FC198909-199109

7 parts on this diagram · 2 diagrams in section
