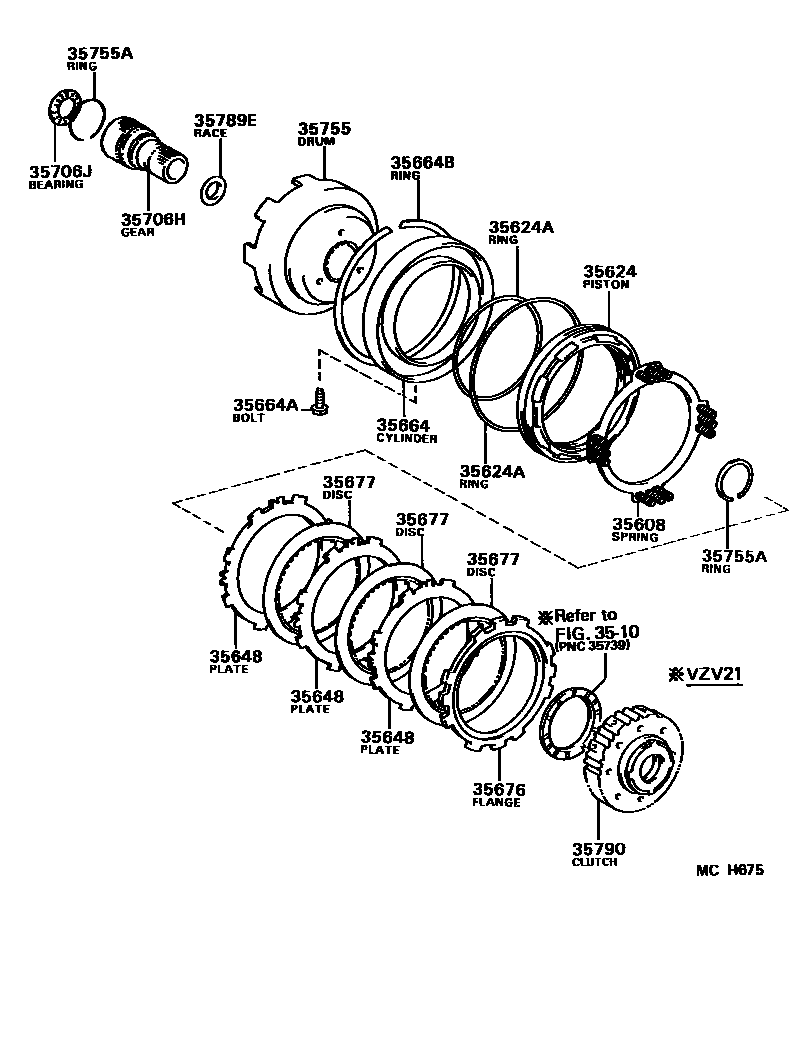

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

3510

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iSV21,VZV21..4FC198807-199109

35624PISTON, 2ND BRAKE

main35624-32010iSV21,VZV21..4FC198807-199109

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iSV21,VZV21..4FC198807-199109

INNER

main90301-99023iSV21,VZV21..4FC198807-199109

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010iSV21..4FC198807-199109

T=1.8

main35648-32030iVZV21..4FC198909-199109

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iSV21,VZV21..4FC198807-199109

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iSV21,VZV21..4FC198807-199109

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iSV21,VZV21..4FC198807-199109

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iSV21,VZV21..4FC198807-199109

T=3.5

sub35676-12030

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-32050iSV21,VZV21..4FC198807-199109

main35677-33020iVZV21..4FC199106-199109

sub35677-33021

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-32012iSV21..4FC198807-198907

sub35706-32030

main35706-32021iVZV21..4FC198909-199105

sub35706-33012

main35706-32030iSV21..4FC198907-199109

sub35706-12010

main35706-33010iVZV21..4FC199105-199109

sub35706-33011

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iSV21..4FC198807-199109

main90374-30008iVZV21..4FC198909-199109

sub90374-30014

35755DRUM, SUN GEAR INPUT

main35755-32020iSV21..4FC198807-199109

main35755-32030iVZV21..4FC198909-199109

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-36017iVZV21..4FC198909-199109

T=1.4,ID=36

main90520-44002iSV21..4FC198807-199109

T=1.2,ID=44.0

main90520-47003iSV21..4FC198807-199109

T=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iSV21..4FC198807-199109

35790CLUTCH ASSY, 1 WAY

main35790-32020iSV21..4FC198807-199109

sub35790-32050

main35790-32031iVZV21..4FC198909-199109

16 parts on this diagram · 1 diagram in section
