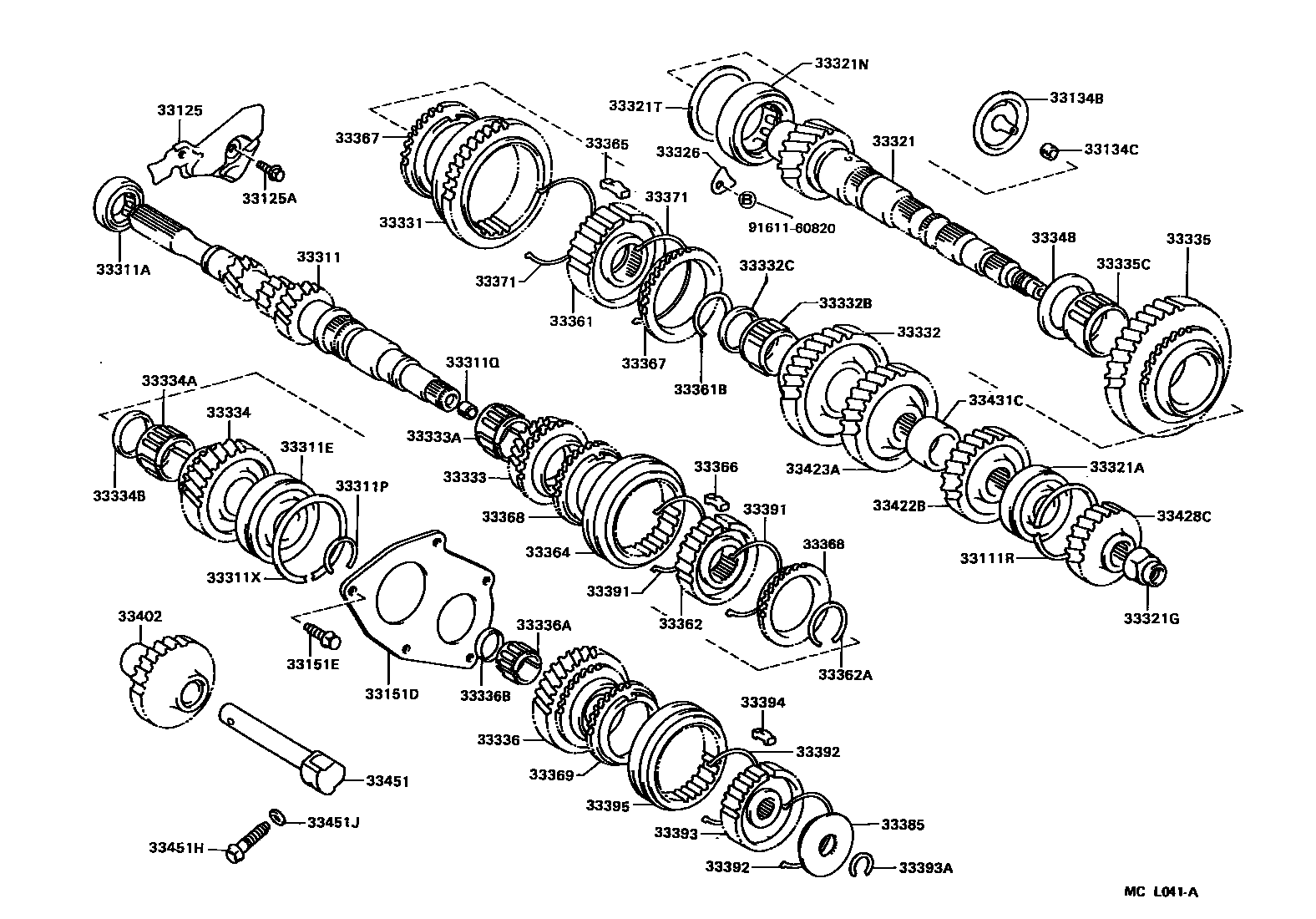

TRANSMISSION GEAR (MTM)
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
sub91611-B0616
33134BCOVER, OUTPUT SHAFT(MTM)
33134CPIN, SLOTTED SPRING(FOR OUTPUT SHAFT)
33151DRETAINER, BEARING, REAR(MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.15-2.20,MARK A
T=2.20-2.25,MARK B
T=2.25-2.30,MARK C
T=2.30-2.35,MARK D
T=2.35-2.40,MARK E
T=2.35-2.40,MARK 1
T=2.40-2.45,MARK 2
T=2.45-2.50,MARK 3
T=2.50-2.55,MARK 4
T=2.55-2.60,MARK 5
T=2.60-2.65,MARK 6
T=2.65-2.69,MARK 7
T=2.70-2.74,MARK 8
33311QPIN, SLOTTED SPRING (FOR INPUT SHAFT)
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321TSPACER (FOR OUTPUT SHAFT)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33348WASHER, 1ST GEAR THRUST
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK 1
T=2.55-2.60,MARK 2
T=2.60-2.65,MARK 3
T=2.65-2.70,MARK 4
T=2.70-2.75,MARK 5
T=2.75-2.80,MARK 6
T=2.80-2.85,MARK A
T=2.85-2.90,MARK B
T=2.90-2.95,MARK C
T=2.95-3.00,MARK D
T=3.00-3.05,MARK E
T=3.05-3.10,MARK F
T=3.10-3.15,MARK G
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.95-1.99,MARK 1
T=2.00-2.04,MARK 2
T=2.05-2.09,MARK 3
T=2.10-2.14,MARK 4
T=2.15-2.19,MARK 5
T=2.20-2.24,MARK 6
T=2.30-2.35,MARK H
T=2.35-2.40,MARK J
T=2.40-2.45,MARK K
T=2.45-2.50,MARK L
T=2.50-2.55,MARK M
T=2.55-2.60,MARK N
T=2.60-2.65,MARK P
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33385RETAINER, SHIFTING KEY
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=1.60-1.65,MARK 1
T=1.65-1.70,MARK 2
T=1.70-1.75,MARK 3
T=1.75-1.80,MARK 4
T=1.80-1.85,MARK 5
T=1.85-1.90,MARK 6
T=1.90-1.95,MARK 7
T=1.95-2.00,MARK 8
T=2.00-2.05,MARK 9
T=2.05-2.10,MARK 10
T=2.10-2.15,MARK 11
T=2.15-2.20,MARK 12
T=2.20-2.25,MARK 13
T=2.25-2.30,MARK 14
T=2.30-2.35,MARK 15
T=2.35-2.39,MARK 16
T=2.40-2.44,MARK 17
T=2.45-2.49,MARK 18
T=2.50-2.54,MARK 19
T=2.55-2.59,MARK 20
T=2.60-2.64,MARK 21
T=2.65-2.69,MARK 22
T=2.70-2.74,MARK 23
T=2.75-2.79,MARK 24
T=2.80-2.84,MARK 25
T=2.85-2.89,MARK 26
T=2.90-2.94,MARK 27
T=2.25-2.30,MARK Q
T=2.30-2.35,MARK R
T=2.35-2.40,MARK S
T=2.40-2.45,MARK T
T=2.45-2.50,MARK U
T=2.50-2.55,MARK V
T=2.55-2.60,MARK W
T=2.60-2.65,MARK X
T=2.65-2.70,MARK Y
33394KEY, SYNCHROMESH SHIFTING, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33422BGEAR, 4TH DRIVEN
33423AGEAR, 3RD DRIVEN
33431CSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
9161160820
main91611-60820
61 parts on this diagram · 3 diagrams in section
