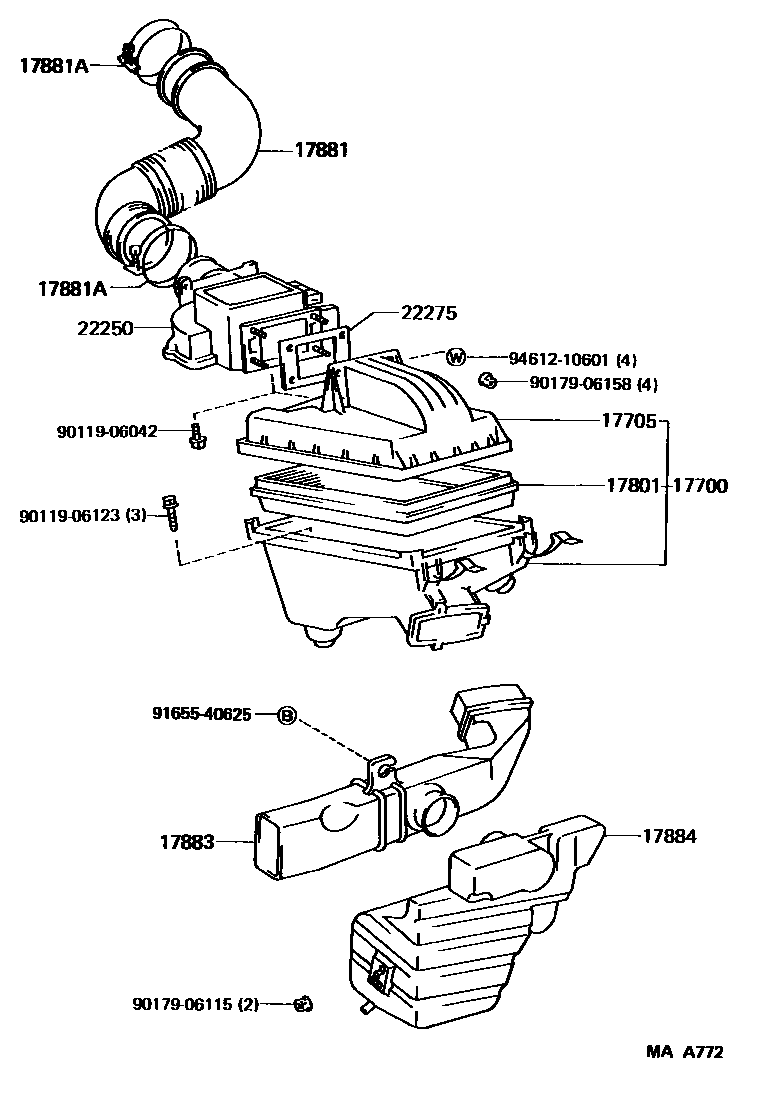

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-03010i3SFE..SV21198807-199109

main17700-07010i2VZFE..VZV21198909-199109

17705CAP SUB-ASSY, AIR CLEANER

main17705-03010i3SFE..SV21198807-199109

main17705-07010i2VZFE..VZV21198909-199109

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74010i3SFE..SV21198807-199109

sub17801-55010

main17801-74020i2VZFE..VZV21198909-199109

17881HOSE, AIR CLEANER, NO.1

main17881-03010i3SFE..SV21198807-199109

sub17880-74020

main17881-07010i2VZFE..VZV21198909-199109

main17881-62020i2VZFE..VZV21198909-199109

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i3SFE..SV21198807-198910

THROTTLE BODY SIDE

main96111-10710i3SFE..SV21198910-199109

THROTTLE BODY SIDE

main96111-10750i2VZFE..VZV21198909-199109

NO.1

main96111-10800i3SFE..SV21198807-199109

AIR FLOW METER SIDE

main96111-10900i2VZFE..VZV21198909-199109

NO.2

17883HOSE, AIR CLEANER, NO.3

main17882-03010i3SFE..SV21198807-199109

17884HOSE, AIR CLEANER, NO.4

main17883-03010i3SFE..SV21198807-199109

main17883-03030i2VZFE..VZV21198909-199109

main17883-62011i2VZFE..VZV21198909-199109

22250METER ASSY, INTAKE AIR FLOW

main22250-07010i2VZFE..VZV21198909-199109

main22250-74100i3SFE..SV21198807-199109

22275GASKET, AIR FLOW METER

main22275-07010i2VZFE..VZV21198909-199109

main22275-41010i3SFE..SV21198807-199109

9011906042

main90119-06042

9011906123

main90119-06123

9017906115

main90179-06115

9017906158

main90179-06158

9165540625

main91655-40625

9461210601

main94612-10601

15 parts on this diagram · 2 diagrams in section
