HEADLAMP CLEANER

8401

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-33130i202108

HEADLAMP-LED(TRINOCULAR FULL LED)

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-33130i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85271HOSE, HEADLAMP CLEANER, NO.1

main90075-15063i201811-202008

L=50,KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85271AHOSE, HEADLAMP CLEANER, NO.2

main90075-15099i201811-202008

L=300,KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85271BHOSE, HEADLAMP CLEANER, NO.3

main90075-15077i201811-202108

L=1950,KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85271CHOSE, HEADLAMP CLEANER, NO.4

main90075-15094i201811-202008

L=180,KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-75050×2i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85272BCLAMP, HEADLAMP CLEANER, NO.2

main82711-16830×2i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85272CCLAMP, HEADLAMP CLEANER, NO.3

main90075-90512×8i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-47010i202108

HEADLAMP-LED(TRINOCULAR FULL LED)

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089i201811-202107

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17012i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main90075-17010i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main90075-17009×3i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

main90075-17013i201811-202108

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85353COVER, HEADLAMP WASHER, RH

main85353-33040-A0i202108

HEADLAMP-LED(TRINOCULAR FULL LED),WHITE NOVA GF.,083

main85353-33040-A1i202108

HEADLAMP-LED(TRINOCULAR FULL LED),SONIC QUARTZ,085

main85353-33040-B0i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),MERCURY GRAY MC.,1H9

main85353-33040-B1i201811-202108

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),PLATINUM SILVER ME.,1J4

main85353-33040-B2i202108

HEADLAMP-LED(TRINOCULAR FULL LED),SONIC TITANIUM,1J7

main85353-33040-B3i202108

HEADLAMP-LED(TRINOCULAR FULL LED),SONIC CHROME,1L1

main85353-33040-B4i202108

HEADLAMP-LED(TRINOCULAR FULL LED),SONIC IRIDIUM,1L2

main85353-33040-C0i201811-202108

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),BLACK,212

main85353-33040-C1i201811-202108

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),GRAPHITE BLACK GF.,223

main85353-33040-D0i201811-202108

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),RED MC.CS.,3R1

main85353-33040-E0i202108

HEADLAMP-LED(TRINOCULAR FULL LED),ICE ECRU M.M.,4X8

main85353-33040-G0i201811-202108

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),SUNLIGHT GREEN M.M.,6X0

main85353-33040-J0i202108

HEADLAMP-LED(TRINOCULAR FULL LED),HEAT BLUE CONTRAST LAYERI,8X1

main85353-33040-J1i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),DEEP BLUE MC.,8X5

85354COVER, HEADLAMP WASHER, LH

main85354-33040-A0i202108

HEADLAMP-LED(TRINOCULAR FULL LED),WHITE NOVA GF.,083

main85354-33040-A1i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),SONIC QUARTZ,085

main85354-33040-B0i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),MERCURY GRAY MC.,1H9

main85354-33040-B1i201811-202108

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),PLATINUM SILVER ME.,1J4

main85354-33040-B2i202108

HEADLAMP-LED(TRINOCULAR FULL LED),SONIC TITANIUM,1J7

main85354-33040-B3i202108

HEADLAMP-LED(TRINOCULAR FULL LED),SONIC CHROME,1L1

main85354-33040-B4i202108

HEADLAMP-LED(TRINOCULAR FULL LED),SONIC IRIDIUM,1L2

main85354-33040-C0i201811-202108

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),BLACK,212

main85354-33040-C1i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),GRAPHITE BLACK GF.,223

main85354-33040-D0i201811-202108

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),RED MC.CS.,3R1

main85354-33040-E0i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),ICE ECRU M.M.,4X8

main85354-33040-G0i202108

HEADLAMP-LED(TRINOCULAR FULL LED),SUNLIGHT GREEN M.M.,6X0

main85354-33040-J0i202108

HEADLAMP-LED(TRINOCULAR FULL LED),HEAT BLUE CONTRAST LAYERI,8X1

main85354-33040-J1i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED),DEEP BLUE MC.,8X5

85361CBRACKET, WASHER

main85361-33040i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85362BRACKET, WASHER, NO.2

main85362-33020i201811-202008

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main90075-15059i201811-202008

L=80,KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85277-50040×2i201811-202010

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

9007591002

main90075-91002

9015960603

main90159-60603

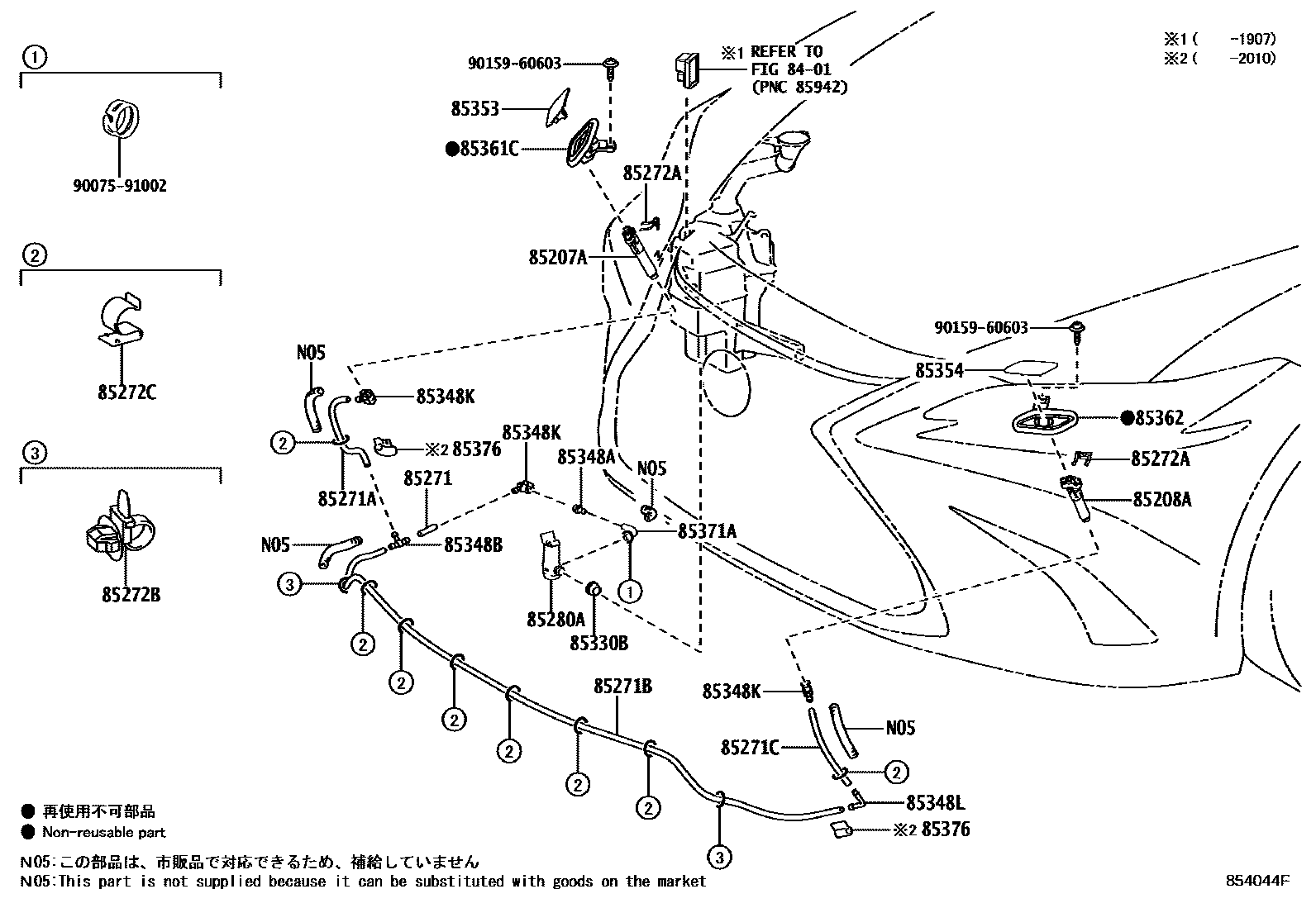

24 parts on this diagram · 1 diagram in section
