HEADLAMP

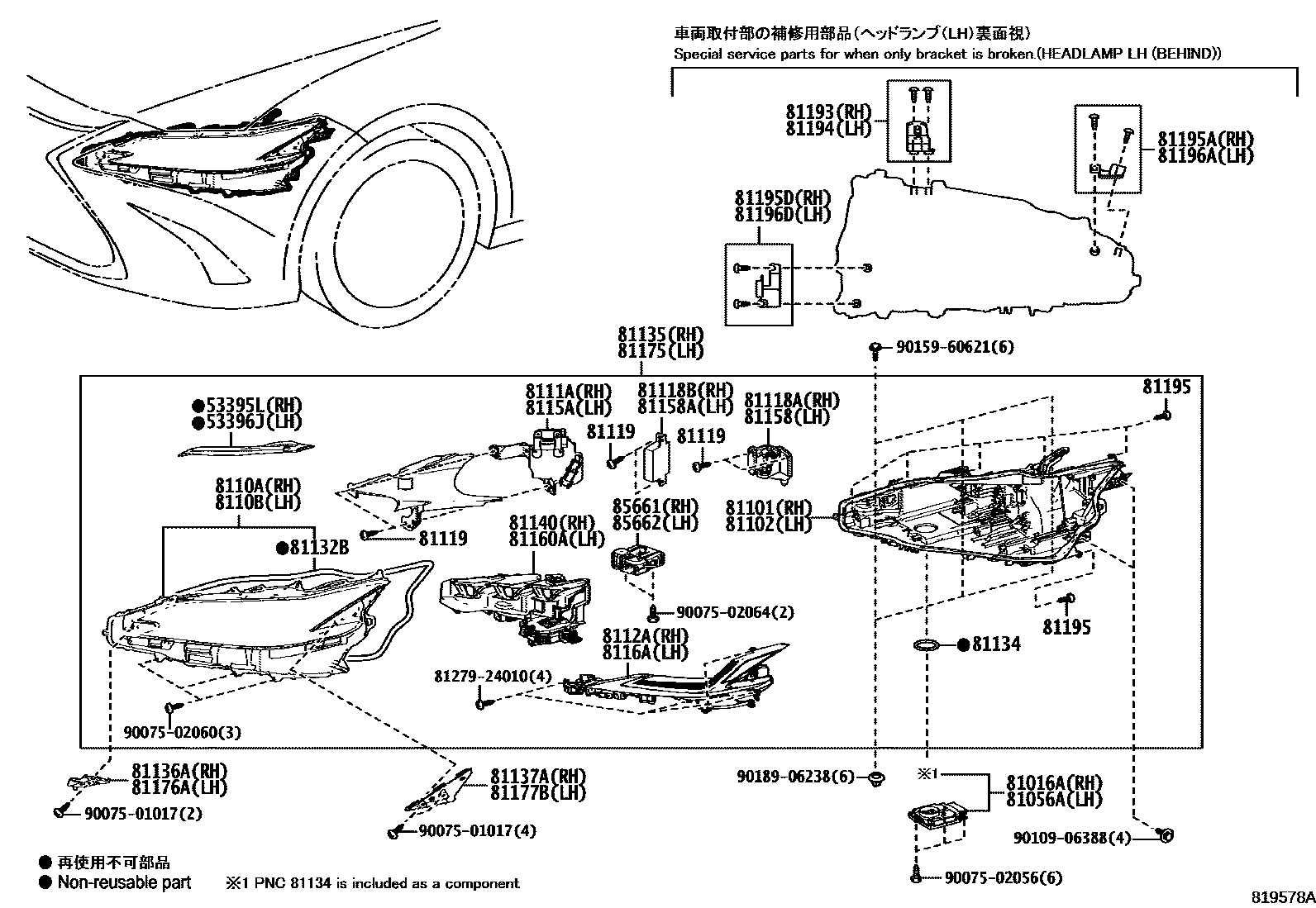

Parts diagram
53395LSEAL, HEADLAMP, RH
main53395-33060i201806
53396JSEAL, HEADLAMP, LH
main53396-33060i201806
81016ACOMPUTER SUB-ASSY, HEADLAMP, RH
main81016-33F10i201807-202008
KOREA SPEC
main81016-33F60supersedes 81016-33F30i201806
HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(AFS)
main81016-33J20i201807-202108
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main81016-33L60supersedes 81016-33G10i202108-202402
HEADLAMP-LED(TRINOCULAR FULL LED)
main81016-33P10supersedes 81016-33K60i202402
HEADLAMP-LED(TRINOCULAR FULL LED)
81056ACOMPUTER SUB-ASSY, HEADLAMP, LH
main81056-33F10i201807-202008
KOREA SPEC
main81056-33F60supersedes 81056-33F30i201806
HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(AFS)
main81056-33J20i201807-202108
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main81056-33L60supersedes 81056-33G10i202108-202402
HEADLAMP-LED(TRINOCULAR FULL LED)
main81056-33P10supersedes 81056-33K60i202402
HEADLAMP-LED(TRINOCULAR FULL LED)
81101HOUSING SUB-ASSY, HEADLAMP, RH
main81101-33010i202108-202402
main81101-33130i202402
main81101-33020i201807-202108
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main81101-33120i202108
HEADLAMP-LED(TRINOCULAR FULL LED)
81102HOUSING SUB-ASSY, HEADLAMP, LH
main81102-33010i202108-202402
main81102-33130i202402
main81102-33020i201807-202108
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main81102-33120i202108
HEADLAMP-LED(TRINOCULAR FULL LED)
8110ALENS SUB-ASSY, HEADLAMP, RH
main8110A-33F10i201807-201901
KOREA SPEC
main8110A-33F11supersedes 8110A-33G10i201901-202108
KOREA SPEC
main8110A-33J20i201807-201901
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main8110A-33J21i201901-202008
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main8110A-33L60supersedes 8110A-33G10i202108
HEADLAMP-LED(TRINOCULAR FULL LED)
8110BLENS SUB-ASSY, HEADLAMP, LH
main8110B-33F10i201807-201901
KOREA SPEC
main8110B-33F11i201901-202008
KOREA SPEC
main8110B-33J20i201807-201901
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main8110B-33J21i201901-202008
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main8110B-33L60supersedes 8110B-33G10i202108
HEADLAMP-LED(TRINOCULAR FULL LED)
81118ABRACKET, HEADLAMP, RH
main81118-33F10i201806
main81118-33J00supersedes 81118-33F10i201807-202008
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
81118BBRACKET, HEADLAMP, RH NO.1
main81118-11030i201807-202108
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
81119SCREW, HEADLAMP
main90075-02051×4supersedes 81279-24010i201806
8111AUNIT, HEADLAMP CORNERING LED, RH
main8111A-33J00supersedes 8111A-33F10i201807-202108
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main8111A-33L50supersedes 8111A-33F10i202108
HEADLAMP-LED(TRINOCULAR FULL LED)
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
main8112A-33F10i201807-202008
KOREA SPEC
main8112A-33J20supersedes 8112A-33G10i201807-202108
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main8112A-33L50supersedes 8112A-33G10i202108
HEADLAMP-LED(TRINOCULAR FULL LED)
81132BGASKET, HEADLAMP LENS
main81132-48C30×2i201807-202008
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
81134GASKET, HEADLAMP
main90075-23003×2i202108
81135UNIT ASSY, HEADLAMP, RH
main81145-33F10i201807-201901
KOREA SPEC
main81145-33F11i201901-202108
KOREA SPEC
main81145-33F60supersedes 81145-33F30i201806-201901
HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(AFS)
main81145-33F61supersedes 81145-33F31i201901
HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(AFS)
main81145-33J20i201807-201901
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main81145-33J21i201901-202108
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main81145-33L60supersedes 81145-33G10i202108-202402
HEADLAMP-LED(TRINOCULAR FULL LED)
main81145-33P10supersedes 81145-33K60i202402
HEADLAMP-LED(TRINOCULAR FULL LED)
81136ARIM, HEADLAMP, RH
main81136-33J00i201806
81137ARIM, HEADLAMP, RH
main81137-33J00i201806
81140UNIT ASSY, HEADLAMP LED, RH
main81130-33F10i201807-202008
KOREA SPEC
main81130-33J20i201807-202008
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main81130-33L60supersedes 81130-33G10i202108
HEADLAMP-LED(TRINOCULAR FULL LED)
81158BRACKET, HEADLAMP, LH
main81158-33F10i201806
main81158-33J00supersedes 81158-33F10i201807-202008
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
81158ABRACKET, HEADLAMP, LH NO.1
main81118-11030i201807-202008
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
8115AUNIT, HEADLAMP CORNERING LED, LH
main8115A-33J00i201807-202008
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main8115A-33L50supersedes 8115A-33F10i202108
HEADLAMP-LED(TRINOCULAR FULL LED)
81160AUNIT ASSY, HEADLAMP LED, LH
main81170-33F10supersedes 81170-33G10i201807-202108
KOREA SPEC
main81170-33J20supersedes 81170-33G10i201807-202108
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main81170-33L60supersedes 81170-33G10i202108
HEADLAMP-LED(TRINOCULAR FULL LED)
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
main8116A-33F10i201807-202008
KOREA SPEC
main8116A-33J20supersedes 8116A-33G10i201807-202108
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main8116A-33L50supersedes 8116A-33G10i202108
HEADLAMP-LED(TRINOCULAR FULL LED)
81175UNIT ASSY, HEADLAMP, LH
main81185-33F10i201807-201901
KOREA SPEC
main81185-33F11i201901-202008
KOREA SPEC
main81185-33F60supersedes 81185-33F30i201806-201901
HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(AFS)
main81185-33F61supersedes 81185-33F31i201901
HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(AFS)
main81185-33J20i201807-201901
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main81185-33J21i201901-202108
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
main81185-33L60supersedes 81185-33G10i202108-202402
HEADLAMP-LED(TRINOCULAR FULL LED)
main81185-33P10supersedes 81185-33K60i202402
HEADLAMP-LED(TRINOCULAR FULL LED)
81176ARIM, HEADLAMP, LH
main81176-33J00i201806
81177BRIM, HEADLAMP FITTING, LH NO.2
main81177-33J00i201806
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
main81193-33120i201806
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
main81194-33120i201806
81195SCREW, HEADLAMP
main90075-02052×12i201807-202008
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
main81195-33070i202108
81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
main81193-33130i201806
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
main81196-33070i201806
81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
main81194-33130i201806
85661MOTOR, HEADLAMP LEVELING, RH
main85661-48060supersedes 85661-48050i201807-202008
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
85662MOTOR, HEADLAMP LEVELING, LH
main85661-48050i201807-202008
KOREA SPEC
main85691-48010i201807-202108
KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)
8127924010WASHER, SIDE TURN SIGNAL LAMP
main81279-24010
9007501017
main90075-01017
9007502056
main90075-02056
9007502060
main90075-02060
9007502064
main90075-02064
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238

44 parts on this diagram · 6 diagrams in section
