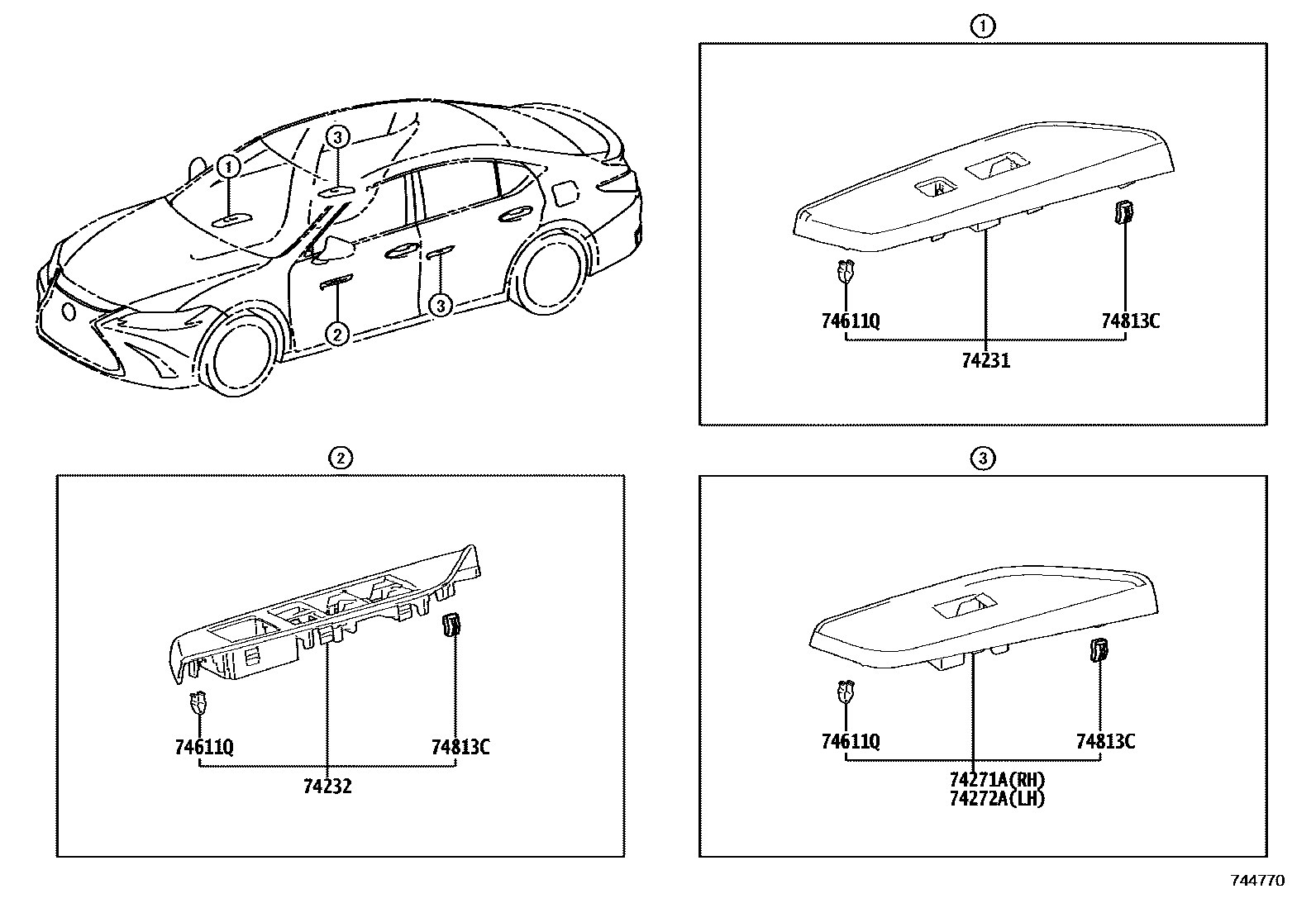

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74230-33140iAXZH1#,GSZ10¥2,540201806

main74230-33170iAXZH11202108

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74240-33150iAXZH1#,GSZ10¥2,130201806

main74240-33180iAXZH11202108

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74270-33160iAXZH1#,GSZ10¥2,060201806

main74270-33180iAXZH11¥3,380202108

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74280-33160iAXZH1#,GSZ10¥2,060201806

main74280-33180iAXZH11¥3,380202108

74611QCLIP

main90467-05172iAXZH1#,GSZ10¥60201806

74813CCLIP

main90468-08048iAXZH1#,GSZ10¥60201806

6 parts on this diagram · 2 diagrams in section
