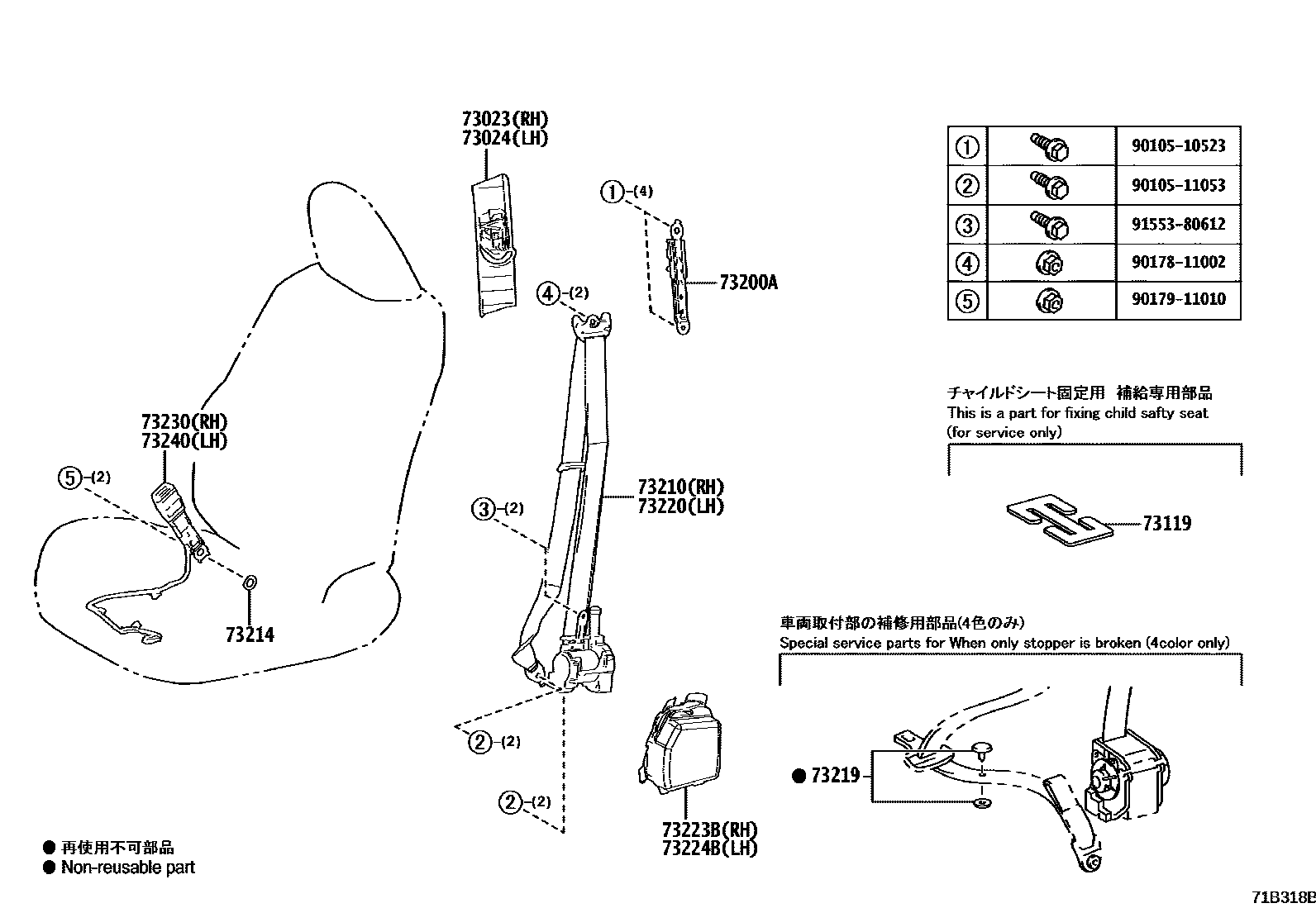

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
L WHITE,TRIM1#,2#
L WHITE,TRIM1#,20,21,22,23
L WHITE,TRIM0#,20,21,22,23,6#
BLACK,TRIM24,25
BLACK,TRIM24,25,26,3#,7#
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM4#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK/WHITE,TRIM1#,2#
BLACK/WHITE,TRIM1#,20,21,22,23
BLACK/BLACK,TRIM24,25
NOBLE BROWN/NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,3#,4#,7#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
BLACK
GRAY
BEIGE
MELLOW WHITE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM0#,2#,3#,4#,7#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,3#,4#,6#,7#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM5#,6#
BLACK,TRIM0#,2#,3#,4#,6#,7#
9010510523
9010511053
9017811002
9017911010
9155380612
17 parts on this diagram · 2 diagrams in section
