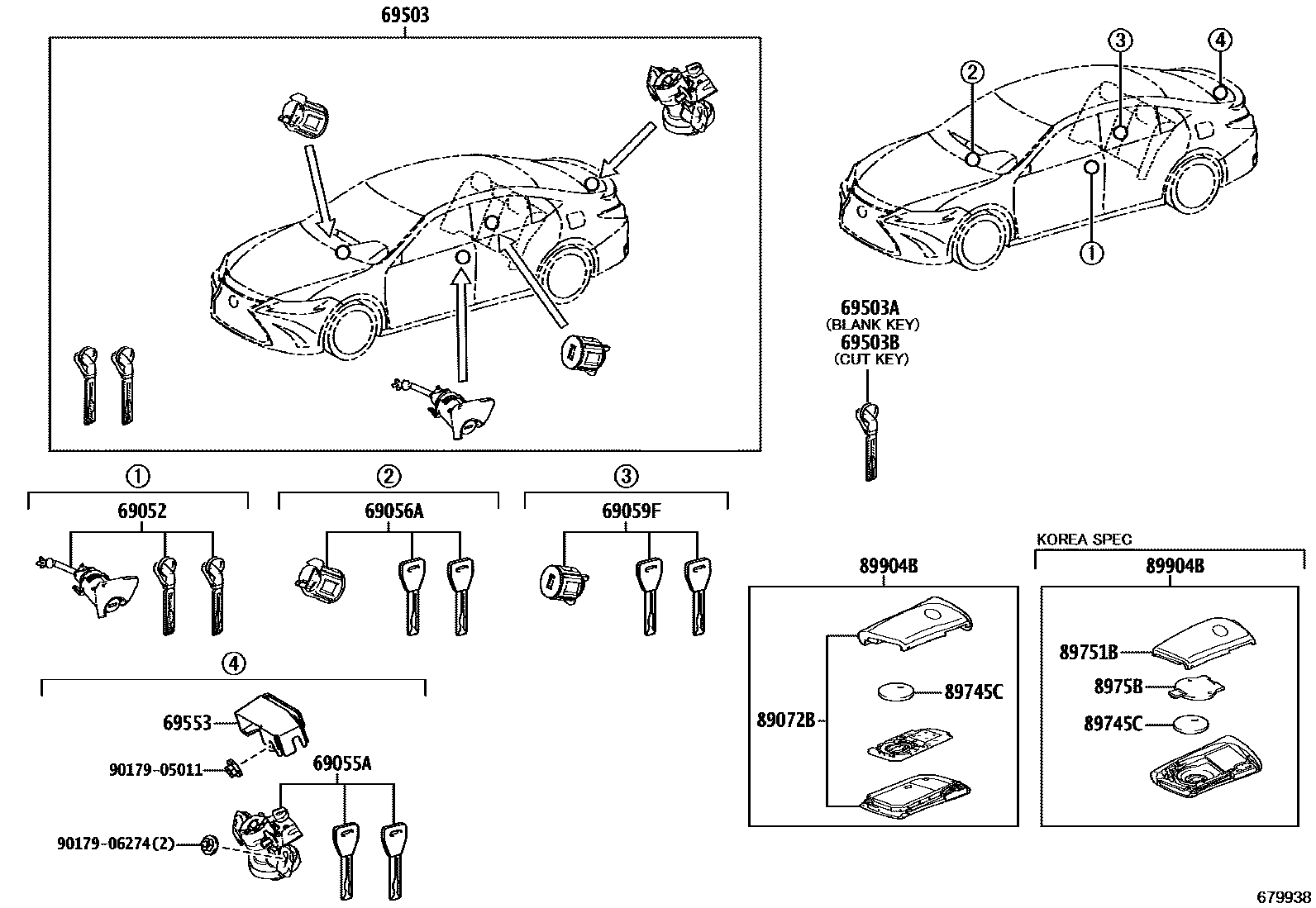

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33450iAXZH10,GSZ10201806

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33540iAXZH1#,GSZ10201806

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iAXZH1#,GSZ10201806

69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK

main69056-50160iAXZH1#,GSZ10201806

69503CYLINDER SET, LOCK

main69005-33E50iAXZH11202108

69503AKEY, BLANK

main69515-33150iAXZH11202108

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-33140×2iAXZH1#,GSZ10201806

MASTER KEY,W(*68)

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-30010iAXZH11202108

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main00000-00000iAXZH11202108-202402

NOT APPLICABLE

main89072-33D40×2iGSZ10201806

main89072-33D50×2iAXZH11201807-202108

89745CBATTERY, TRANSMITTER

main89745-45010iAXZH10,GSZ10201806-202008

CR2032

main89745-50020iAXZH1#,GSZ10202008

CR2032

main89745-47010iAXZH10201807-202008

CR2032,KOREA SPEC

89751BCOVER, TRANSMITTER HOUSING

main89751-33220×2iAXZH11202208

main89751-33230×2iAXZH11202108-202208

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33040

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-33010×2iGSZ10201806-202008

main8990H-33160×2iAXZH11202208-202402

main8990H-33360×2iGSZ10202008

main8990H-33370×2iAXZH1#202008

main8990H-33440×2iAXZH11202108-202208

main8990H-33560iAXZH11202402-202408

main8990H-33561iAXZH11202409

main8990H-33090×2supersedes 8990H-33020iAXZH10201807-202008

KOREA SPEC

9017905011

main90179-05011

9017906274

main90179-06274

15 parts on this diagram · 1 diagram in section
