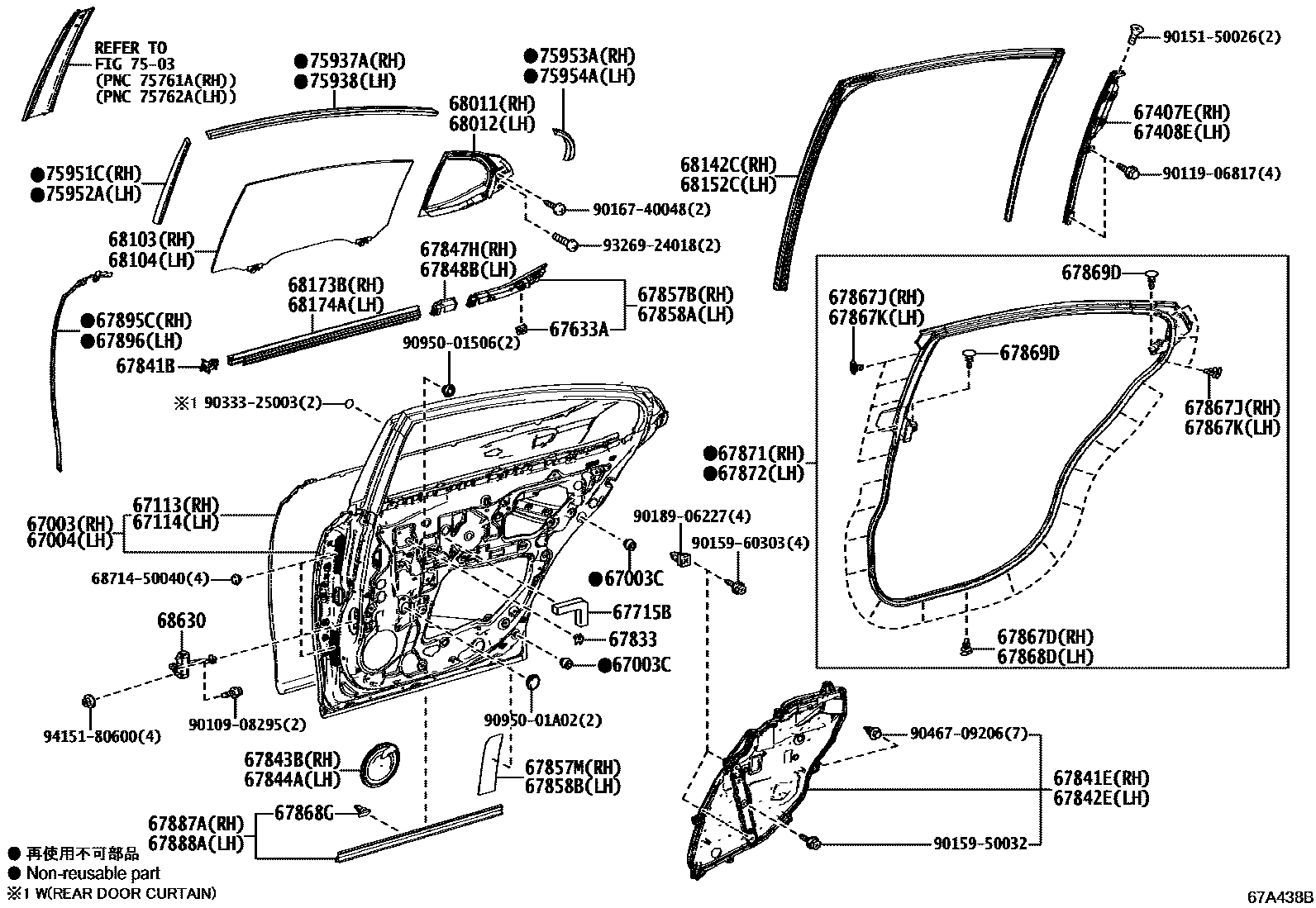

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM, W/O(REAR DOOR CURT0004 1DOOR TRIM, W(REAR DOOR CURTAI

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-33300iAXZH10,GSZ10201806-202009

sub67003-33301

main67003-33301iAXZH11202009-202110

main67003-33310iAXZH11201807-202009

SUN SHADE-WITH(REAR DOOR & REAR WINDOW)

sub67003-33311

main67003-33311iAXZH1#202009-202110

SUN SHADE-WITH(REAR DOOR & REAR WINDOW)

main67003-33311iAXZH11202108

ULTRA LUXURY PACKAGE

67003CCUSHION, REAR DOOR PANEL

main90541-09124iAXZH1#,GSZ10201806-202110

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-33300iAXZH10,GSZ10201806-202009

sub67004-33301

main67004-33301iAXZH11202009-202110

main67004-33310iAXZH11201807-202009

SUN SHADE-WITH(REAR DOOR & REAR WINDOW)

sub67004-33311

main67004-33311iAXZH11202108

ULTRA LUXURY PACKAGE

main67004-33311iAXZH1#202009-202110

SUN SHADE-WITH(REAR DOOR & REAR WINDOW)

67113PANEL, REAR DOOR, OUTER RH

main67113-33140iAXZH1#,GSZ10201806-202110

67114PANEL, REAR DOOR, OUTER LH

main67114-33140iAXZH1#,GSZ10201806-202110

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-33140iAXZH1#,GSZ10201806-202110

main67407-33150iAXZH1#201807-202110

SUN SHADE-WITH(REAR DOOR & REAR WINDOW)

main67407-33150iAXZH11202108

ULTRA LUXURY PACKAGE

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-33140iAXZH1#,GSZ10201806-202110

main67408-33150iAXZH1#201807-202110

SUN SHADE-WITH(REAR DOOR & REAR WINDOW)

main67408-33150iAXZH11202108

ULTRA LUXURY PACKAGE

67633ARETAINER, REAR DOOR TRIM, UPPER

main67923-33100iAXZH11201806-202110

67715BPAD, REAR DOOR TRIM

main67715-33120iAXZH11201806-202110

67833COVER, REAR DOOR SERVICE HOLE

main67833-47010iAXZH1#,GSZ10201806-202110

67841BCOVER, REAR DOOR SERVICE HOLE

main67843-33060iAXZH1#,GSZ10201806-202110

RH

main67844-33060iAXZH11201806-202110

LH

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-33150iAXZH11201806-202110

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-33150iAXZH1#,GSZ10201806-202110

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-33070iAXZH11201806-202110

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-33070iAXZH1#,GSZ10201806-202110

67847HSEAL, REAR DOOR VENT, RH NO.2

main67847-33040iAXZH11201806-202110

67848BSEAL, REAR DOOR VENT, LH NO.2

main67848-33040iAXZH1#,GSZ10201806-202110

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-33090iAXZH1#,GSZ10201806-202110

67857MPROTECTOR, REAR DOOR PANEL, RH

main67857-33080iAXZH1#,GSZ10201806-202110

67858APROTECTOR, REAR DOOR PANEL, LH

main67858-33090iAXZH1#,GSZ10201806-202110

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-33080iAXZH1#,GSZ10201806-202110

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iAXZH1#,GSZ10201806-202110

67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)

main67867-48030iAXZH1#,GSZ10201806-202110

67867KCLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)

main67867-48030iAXZH1#,GSZ10201806-202110

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iAXZH1#,GSZ10201806-202110

67868GRETAINER, DOOR WEATHERSTRIP

main67867-48030iAXZH1#,GSZ10201806-202110

67869DCLIP, DOOR WEATHERSTRIP

main67869-20030iAXZH1#,GSZ10201806-202110

67871WEATHERSTRIP, REAR DOOR, RH

main67871-33130iAXZH10,GSZ10201806-201905

main67871-33140iAXZH1#,GSZ10201905-202110

67872WEATHERSTRIP, REAR DOOR, LH

main67872-33130iAXZH10,GSZ10201806-201905

main67872-33140iAXZH1#,GSZ10201905-202110

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-33060iAXZH1#,GSZ10201806-202110

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67887-33060iAXZH11201806-202110

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-33040iAXZH10,GSZ10201806-202004

sub67895-33041

main67895-33041iAXZH1#,GSZ10202005-202110

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-33040iAXZH10,GSZ10201806-202004

sub67896-33041

main67896-33041iAXZH1#,GSZ10202005-202110

68011GLASS SUB-ASSY, REAR DOOR QUARTER WINDOW, RH

main68011-33010iAXZH1#,GSZ10201806-202110

main68011-33020iAXZH1#201807-202110

SUN SHADE-WITH(REAR DOOR & REAR WINDOW)

main68011-33020iAXZH11202108

ULTRA LUXURY PACKAGE

68012GLASS SUB-ASSY, REAR DOOR QUARTER WINDOW, LH

main68012-33010iAXZH1#,GSZ10201806-202110

main68012-33020iAXZH1#201807-202110

SUN SHADE-WITH(REAR DOOR & REAR WINDOW)

main68012-33020iAXZH11202108

ULTRA LUXURY PACKAGE

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-33170iAXZH1#,GSZ10201806-202110

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-33170iAXZH1#,GSZ10201806-202110

68142CRUN, REAR DOOR GLASS, RH

main68142-33140iAXZH1#,GSZ10201806-202110

68152CRUN, REAR DOOR GLASS, LH

main68152-33140iAXZH1#,GSZ10201806-202110

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-33110iAXZH1#,GSZ10201806-202110

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-33110iAXZH1#,GSZ10201806-202110

68630CHECK ASSY, REAR DOOR

main68630-33140iAXZH1#,GSZ10201806-202110

7503

75937ATAPE, BLACK OUT, INNER UPPER RH

main75987-33100iAXZH1#,GSZ10201806-202110

main75987-33110iAXZH1#201807-202110

SUN SHADE-WITH(REAR DOOR & REAR WINDOW)

main75987-33110iAXZH11202108

ULTRA LUXURY PACKAGE

75938TAPE, BLACK OUT, INNER UPPER LH

main75988-33100iAXZH11201806-202110

main75988-33110iAXZH11202108

ULTRA LUXURY PACKAGE

main75988-33110iAXZH1#201807-202110

SUN SHADE-WITH(REAR DOOR & REAR WINDOW)

75951CTAPE, BLACK OUT, INNER FRONT RH

main75977-33050iAXZH11201806-202110

75952ATAPE, BLACK OUT, INNER FRONT LH

main75978-33050iAXZH11201806-202110

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-33010iAXZH1#,GSZ10201806-202110

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-33010iAXZH1#,GSZ10201806-202110

6871450040

main68714-50040

9010908295

main90109-08295

9011906817

main90119-06817

9015150026

main90151-50026

9015950032

main90159-50032

9015960303

main90159-60303

9016740048

main90167-40048

9018906227

main90189-06227

9033325003

main90333-25003

9046709206

main90467-09206

9095001506

main90950-01506

9095001A02

main90950-01A02

9326924018

main93269-24018

9415180600

main94151-80600

63 parts on this diagram · 4 diagrams in section
