ROOF PANEL & BACK WINDOW GLASS

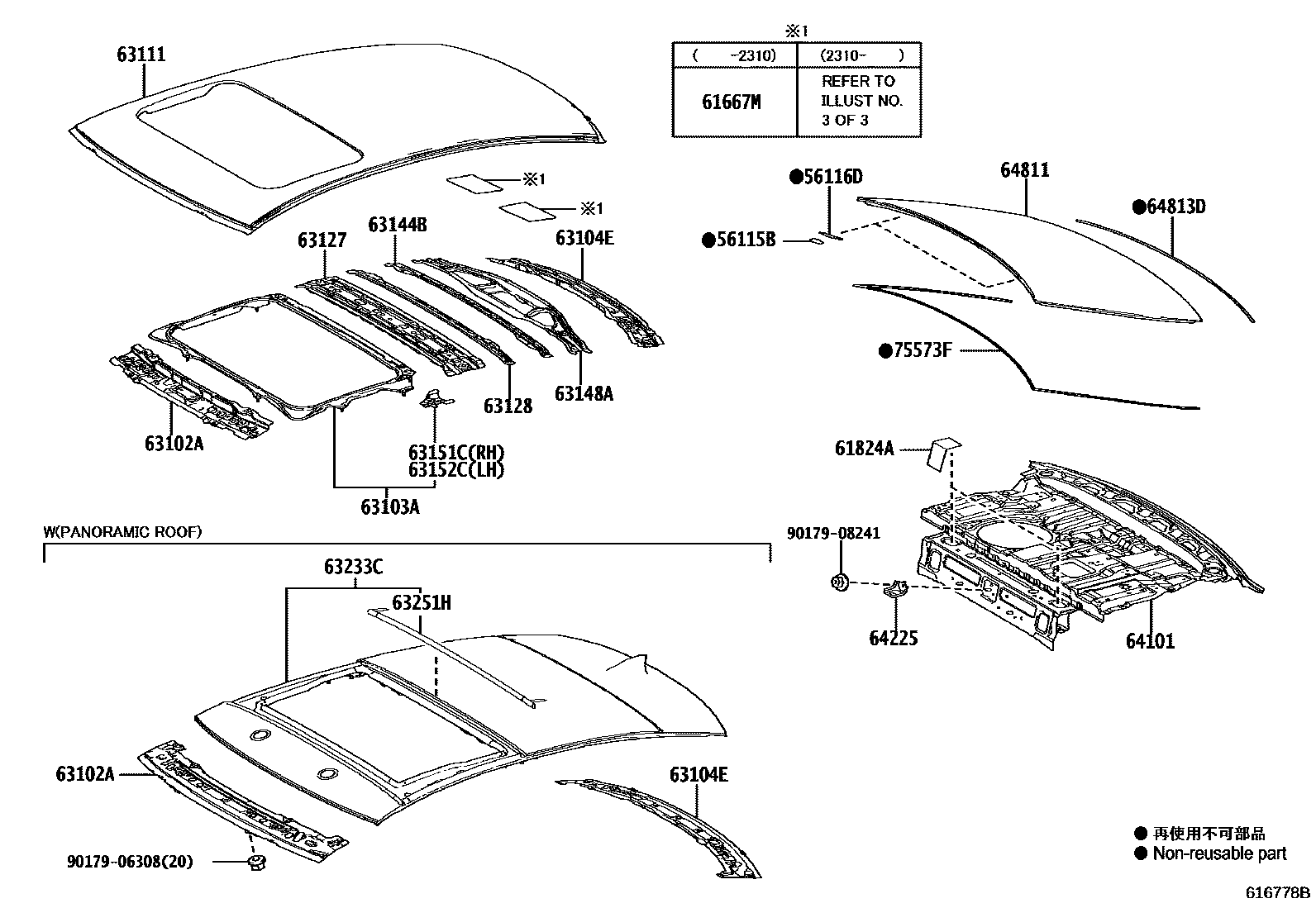

Parts diagram

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120i201806-202110

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050i201806-202110

61667MSEAL, ROOF PANEL

main67139-76020×2i202007-202110

MOON ROOF-WITH(PANORAMA ROOF)

61824APLATE, NOISE CONTROL, NO.1

main61824-33040×2i202108

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-33911i201806-202110

main63102-33310i201806

MOON ROOF-WITH(PANORAMA ROOF)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-33120i202108

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63133-33170i201806-202110

main63104-33120i201806

MOON ROOF-WITH(PANORAMA ROOF)

63111PANEL, ROOF

main63111-33440i202108-202208

main63111-33450i201806-202110

63127REINFORCEMENT, ROOF PANEL, NO.5

main63107-33030i201806-202110

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-33040i201806-202110

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-33180i201806-202110

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-33080i201806-202110

63151CFRAME, ROOF OPENING SIDE, RH

main63151-33020i201806-202110

63152CFRAME, ROOF OPENING SIDE, LH

main63152-33020i201806-202110

63233CPANEL, SLIDING ROOF HOUSING

main63233-33170i201806-202107

MOON ROOF-WITH(PANORAMA ROOF)

63251HWEATHERSTRIP, SLIDING ROOF

main63251-33070i201806-202110

MOON ROOF-WITH(PANORAMA ROOF)

main63251-33090i201806-202107

MOON ROOF-WITH(PANORAMA ROOF)

64101PANEL SUB-ASSY, UPPER BACK

main64101-33370i201806-202110

64225HANGER, REAR SEAT CUSHION SUPPORT

main64225-33050i202108

64811GLASS, BACK WINDOW

main64811-33830i201806-202110

main64811-33916i202108-202208

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140i201806-202110

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-33090i201806-202110

9017906308

main90179-06308

9017908241

main90179-08241

23 parts on this diagram · 4 diagrams in section
