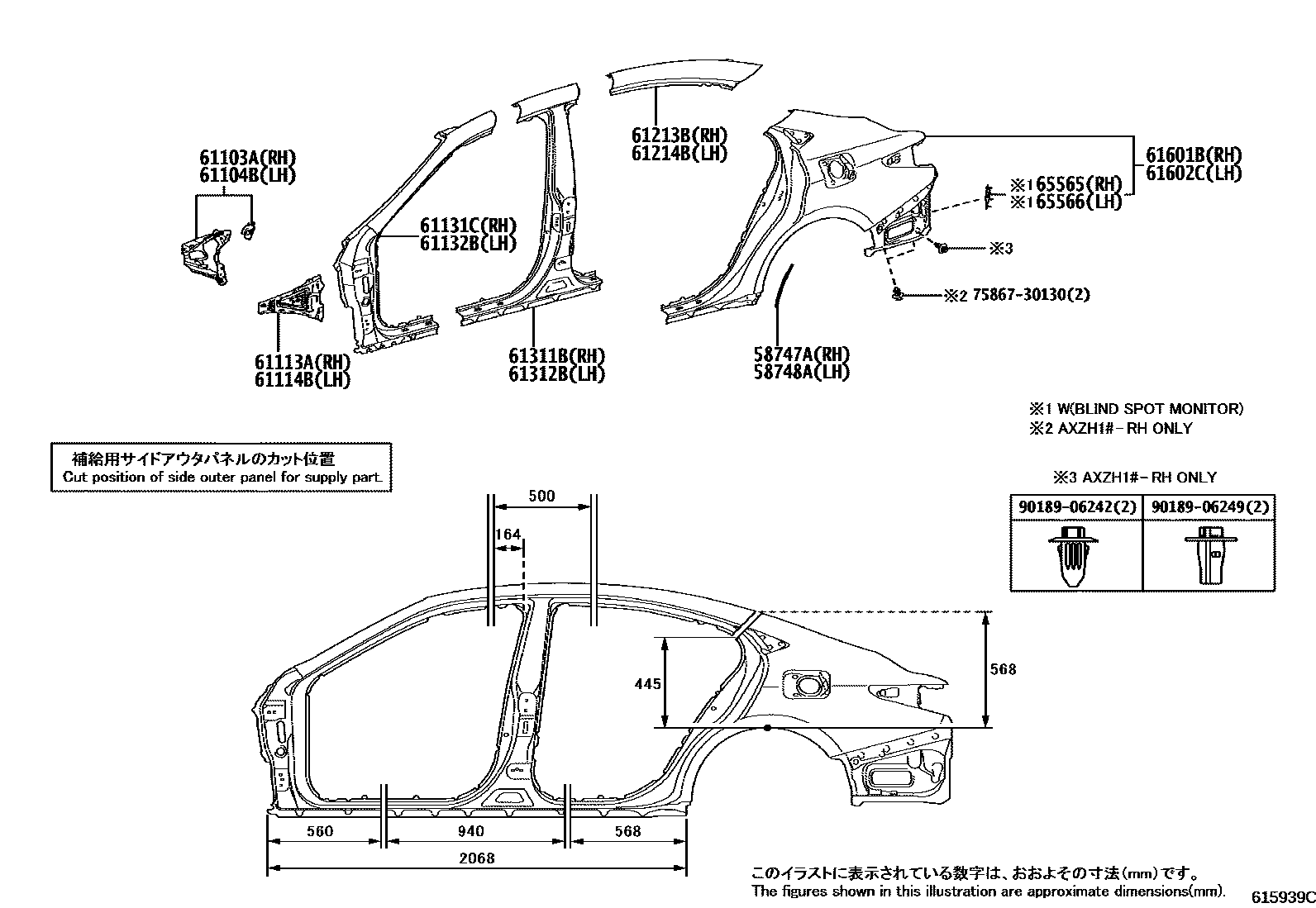

SIDE MEMBER
58747APROTECTOR, QUARTER PANEL, REAR RH
58748APROTECTOR, QUARTER PANEL, REAR LH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61104BREINFORCEMENT SUB-ASSY, COWL SIDE, LH
61113APANEL, SIDE, OUTER NO.2 RH
61114BPANEL, SIDE, OUTER NO.2 LH
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61601BPANEL SUB-ASSY, QUARTER, RH
61602CPANEL SUB-ASSY, QUARTER, LH
65565PATCH, SIDE PANEL REAR END, RH
65566PATCH, SIDE PANEL REAR END, LH
7586730130MOULDING, FRONT PANEL
main75867-30130
9018906242
main90189-06242
9018906249
main90189-06249
19 parts on this diagram · 3 diagrams in section
