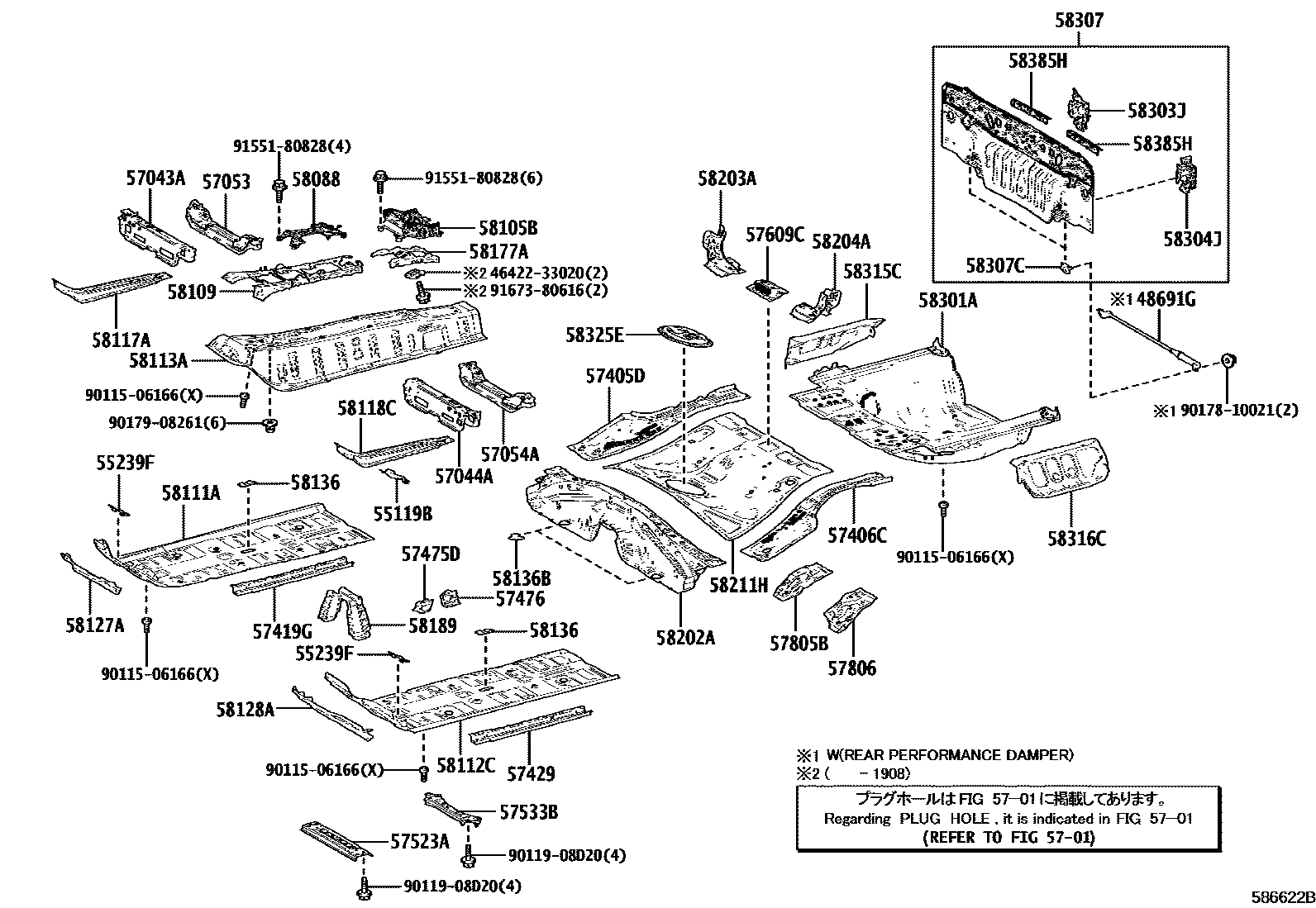

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL & LOWER BACK PANE0002 1FLOOR PANEL & LOWER BACK PANE0003 1FLOOR UNDER COVER 0004 1FLOOR UNDER COVER

48691GDAMPER, SUSPENSION TOWER

55119BEXTENSION, DASH PANEL, LH

main55119-33010iAXZH10,GSZ10201806-202108

55239FPLATE, DASH PANEL INSULATOR, NO.3

main55239-33030iAXZH1#,GSZ10¥270201806

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-33060iAXZH1#,GSZ10¥6,200201806

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-33050iAXZH1#,GSZ10¥6,200201806

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-33040iAXZH1#,GSZ10¥6,600201806

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-33080iAXZH1#,GSZ10¥6,600201806

57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH

main57405-33020iAXZH10¥5,900201806-202110

57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH

main57406-33020iAXZH10¥5,800201806-202110

57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-33100iAXZH1#,GSZ10¥3,240201806

57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57419-33100iAXZH1#,GSZ10¥3,240201806

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-33020iAXZH1#,GSZ10¥950201806

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-33020iAXZH1#,GSZ10¥950201806

57523ABRACE, CENTER FLOOR CROSSMEMBER

main57523-33010iAXZH1#,GSZ10¥1,740201806-202110

57533BBRACE, FRONT FLOOR, CENTER

main57533-33040iAXZH1#,GSZ10¥1,320201806-202110

57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-33040iAXZH10¥3,880201806-202110

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-33020iGSZ10201806

main57805-33030iAXZH1#¥1,920201807-202110

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-33020iGSZ10201806

58088BRACKET SUB-ASSY, FLOOR SHIFT LINK

main58088-33010iAXZH10,GSZ10201806-201910

sub58088-06010

sub58088-33011

main58088-33011iAXZH1#,GSZ10201910

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-33030iAXZH11¥5,600201806-202110

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-33010iAXZH10,GSZ10¥6,000201806-201910

sub58109-06010

sub58109-33011¥4,460

main58109-33011iAXZH1#,GSZ10¥4,460201910

58111APAN, FRONT FLOOR, RH

main58111-33100iAXZH10,GSZ10¥33,400201806-201907

sub58111-33101¥25,300

main58111-33101iAXZH1#,GSZ10¥25,300201908

58112CPAN, FRONT FLOOR, LH

main58112-33020iAXZH10,GSZ10¥33,400201806-201907

sub58112-33021¥27,800

main58112-33021iAXZH11¥27,800201908-202109

sub58112-33040¥25,300

main58112-33021iAXZH10,GSZ10¥27,800202109-202303

FRAME NO.=3XXXXXX

sub58112-33040¥25,300

main58112-33040iAXZH11¥25,300202109-202303

FRAME NO.=2XXXXXX

main58112-33040iAXZH11¥25,300202303

58113APANEL, FRONT FLOOR, CENTER

main58113-33030iAXZH10,GSZ10¥42,000201806-201909

sub58113-33031¥31,800

main58113-33031iAXZH1#,GSZ10¥31,800201910

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-33010iAXZH1#,GSZ10¥5,900201806

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58117-33010iAXZH1#,GSZ10¥5,900201806

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-33010iAXZH1#,GSZ10¥5,400201806-202009

sub58127-33050¥4,060

main58127-33050iAXZH1#,GSZ10¥4,060202010

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-33010iAXZH1#,GSZ10¥4,520201806-202009

sub58128-33040¥4,190

main58128-33040iAXZH1#,GSZ10¥4,190202010

58136COVER, FRONT FLOOR HOLE

main58136-33010iAXZH1#,GSZ10¥230201806

58136BCOVER, CENTER FLOOR HOLE

main58136-33020iAXZH10¥200201806-202110

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-33010iAXZH10,GSZ10¥2,270201806-201910

sub58177-06010

sub58177-33011¥1,720

main58177-33011iAXZH1#,GSZ10¥1,720201910

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-33080iAXZH11¥4,110201806

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-33030iAXZH1#¥14,400201807-202110

main58202-33040iGSZ10201806

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-33040iAXZH11,GSZ10¥2,350201806-202110

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-33040iAXZH11,GSZ10¥2,350201806-202110

58211HPAN, CENTER FLOOR

main58211-33190iGSZ10201806-201905

sub58211-33191

main58211-33191iGSZ10201906

main58211-33201iAXZH11¥11,400201907-202110

main58211-33900iAXZH10¥15,100201807-201907

sub58211-33902¥15,100

58301APANEL SUB-ASSY, REAR FLOOR

main58301-33900iGSZ10¥30,700201806

main58301-33901iAXZH1#¥28,100201807

58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main58303-33050iAXZH1#,GSZ10¥2,200201806-202110

58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-33040iAXZH1#,GSZ10¥2,200201806-202110

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-33190iAXZH10,GSZ10¥22,100201806-202004

sub58307-33191¥16,700

main58307-33191iAXZH1#,GSZ10¥16,700202005-202110

58307CRETAINER, LOWER BACK TRIM

main58377-33030iAXZH11¥490201806-202110

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-33010iGSZ10201806

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-33030iAXZH11¥2,900201806

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-33080iGSZ10201806

main58325-33090iAXZH1#¥1,320201807-202110

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-33060iAXZH11¥790201806-202110

4642233020CAP, PARKING BRAKE CABLE, CASING

main46422-33020

9011506166

main90115-06166¥90

9011908D20

main90119-08D20¥80

9017810021

main90178-10021¥100

9017908261

main90179-08261¥260

9155180828

main91551-80828¥80

9167380616

main91673-80616¥60

53 parts on this diagram · 4 diagrams in section
