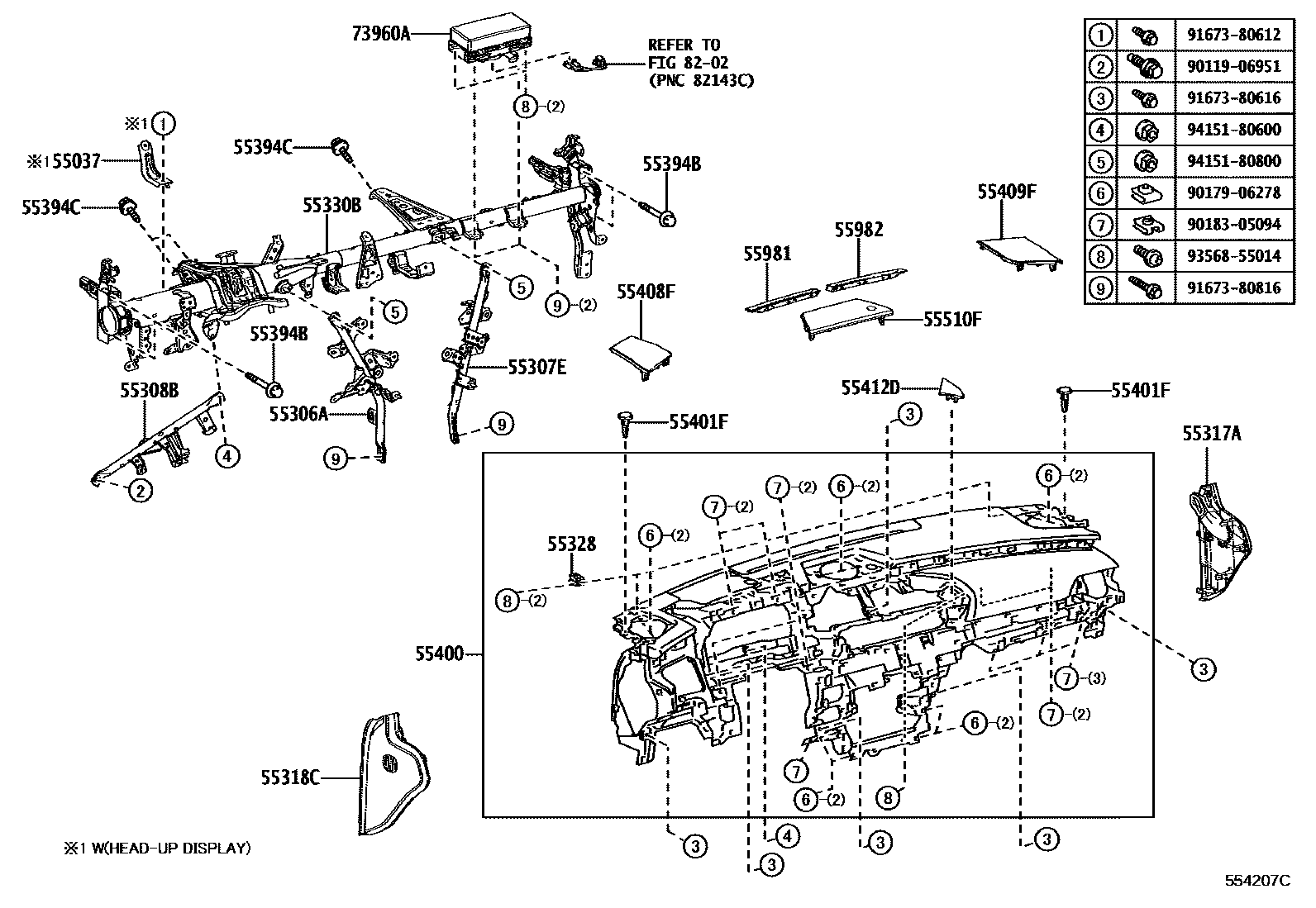

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55037BRACKET SUB-ASSY, INSTRUMENT PANEL METER

main5538J-33010iAXZH11201806

HEAD-UP DISPLAY-WITH

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-33180iAXZH1#,GSZ10201806

DRIVER SIDE

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-33210iAXZH11201806

PASSENGER SIDE

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-33240iAXZH11201806

55317APANEL, INSTRUMENT SIDE, RH

main55317-33240-C0iAXZH11202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main55317-33240-C0iAXZH1#,GSZ10201806

BLACK,TRIM1#,2#

main55317-33240-E0iAXZH1#,GSZ10201806

NOBLE BROWN,TRIM5#,6#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-33210-C0iAXZH1#,GSZ10201806

BLACK,TRIM1#,2#

main55318-33210-C0iAXZH11202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main55318-33210-E0iAXZH1#,GSZ10201806

NOBLE BROWN,TRIM5#,6#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430iAXZH11202204

main55328-60090iAXZH11201806-202204

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-33450iAXZH1#,GSZ10201806

main55330-33490iAXZH11202108

55394BBOLT, INSTRUMENT PANEL

main90105-08473iAXZH1#,GSZ10201806

55394CBOLT, INSTRUMENT PANEL

main90119-08D16iAXZH11201806

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-33010-C3iGSZ10201806

HEAD-UP DISPLAY-WITH,SOFT BLACK/RED,TRIM25

main55400-33010-C4iAXZH1#201807

HEAD-UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM1#,2#

main55400-33010-C4iGSZ10201806

HEAD-UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM1#,21,22,23,24

main55400-33010-E0iAXZH1#,GSZ10201806

HEAD-UP DISPLAY-WITH,NOBLE BROWN/IVORY,TRIM6#

main55400-33010-E2iAXZH1#,GSZ10201806

HEAD-UP DISPLAY-WITH,NOBLE BROWN/BROWN,TRIM5#

main55400-33020-C3iGSZ10201806

SOFT BLACK/RED,TRIM25

main55400-33020-C4iGSZ10201806

SOFT BLACK/LT.GRAY,TRIM1#,20,21,22,23,24

main55400-33020-C4iAXZH1#201807

SOFT BLACK/LT.GRAY,TRIM1#,2#

main55400-33020-E0iAXZH1#,GSZ10201806

NOBLE BROWN/IVORY,TRIM6#

main55400-33020-E2iAXZH1#,GSZ10201806

NOBLE BROWN/BROWN,TRIM5#

main55400-33050-C1iAXZH11202108

HEAD-UP DISPLAY-WITH,SOFT BLACK/RED,TRIM25

main55400-33050-C2iAXZH11202108

HEAD-UP DISPLAY-WITH,SOFT BLACK/LT.GRAY,TRIM21,22,23,24,26

main55400-33050-C5iAXZH11202108

HEAD-UP DISPLAY-WITH,SOFT BLACK/HAZEL,TRIM4#

main55400-33050-C6iAXZH11202108-202208

HEAD-UP DISPLAY-WITH,SOFT BLACK,TRIM6#

main55400-33050-C7iAXZH11202108

HEAD-UP DISPLAY-WITH,SOFT BLACK/MAUVE,TRIM7#

main55400-33050-C8iAXZH11202208

HEAD-UP DISPLAY-WITH,SOFT BLACK/SHELL,TRIM0#

main55400-33050-C9iAXZH11202411

HEAD-UP DISPLAY-WITH,SOFT BLACK/RED,TRIM3#

main55400-33060-C1iAXZH11202108

SOFT BLACK/RED,TRIM25

main55400-33060-C2iAXZH11202108

SOFT BLACK/LT.GRAY,TRIM20,21,22,23,24,26

main55400-33060-C5iAXZH11202108

SOFT BLACK/HAZEL,TRIM4#

main55400-33060-C6iAXZH11202108-202208

SOFT BLACK,TRIM6#

main55400-33060-C7iAXZH11202108

SOFT BLACK/MAUVE,TRIM7#

main55400-33060-C8iAXZH11202208

SOFT BLACK/SHELL,TRIM0#

main55400-33060-C9iAXZH11202208

SOFT BLACK/RED,TRIM3#

55401FCLIP(FOR SAFETY PAD)

main52161-16010iAXZH11201806

sub52161-0K040

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-33120-C0iAXZH1#,GSZ10201806

BLACK,TRIM1#,2#,DRIVER SIDE

main55408-33120-C0iAXZH11202108

BLACK,TRIM0#,2#,3#,4#,6#,7#,DRIVER SIDE

main55408-33120-E0iAXZH1#,GSZ10201806

NOBLE BROWN,TRIM5#,6#,DRIVER SIDE

main55408-33130-C0iAXZH10201807-202108

AUDIO-8INCH DISPLAY & *DA & DVD & *MAR,BLACK,TRIM1#,2#,DRIVER SIDE

main55408-33130-C0iAXZH10201807-202108

AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB,BLACK,TRIM1#,2#,DRIVER SIDE

main55408-33130-C0iAXZH1#,GSZ10201806

AUDIO-12.3INCH DISPLAY & DVD & *MAR,BLACK,TRIM1#,2#,DRIVER SIDE

main55408-33130-C0iAXZH1#,GSZ10201806

AUDIO-8INCH DISPLAY & *DA & CD & *MAR,BLACK,TRIM1#,2#,DRIVER SIDE

main55408-33130-C0iAXZH11202108-202208

AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB,BLACK,TRIM0#,2#,3#,4#,6#,7#,DRIVER SIDE

main55408-33130-C0iAXZH11202208

AUDIO-12.3INCH DISPLAY & DVD & *MAR,BLACK,TRIM0#,2#,3#,4#,6#,7#,DRIVER SIDE

main55408-33130-E0iAXZH11201807-202108

AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB,NOBLE BROWN,TRIM5#,6#,DRIVER SIDE

main55408-33130-E0iAXZH11201807-202108

AUDIO-8INCH DISPLAY & *DA & DVD & *MAR,NOBLE BROWN,TRIM5#,6#,DRIVER SIDE

main55408-33130-E0iAXZH1#,GSZ10201806

AUDIO-12.3INCH DISPLAY & DVD & *MAR,NOBLE BROWN,TRIM5#,6#,DRIVER SIDE

main55408-33130-E0iAXZH1#,GSZ10201806

AUDIO-8INCH DISPLAY & *DA & CD & *MAR,NOBLE BROWN,TRIM5#,6#,DRIVER SIDE

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-33140-C0iAXZH11202108

BLACK,TRIM0#,2#,3#,4#,6#,7#,PASSENGER SIDE

main55409-33140-C0iAXZH1#,GSZ10201806

BLACK,TRIM1#,2#,PASSENGER SIDE

main55409-33140-E0iAXZH1#,GSZ10201806

NOBLE BROWN,TRIM5#,6#,PASSENGER SIDE

main55409-33150-C0iAXZH1#,GSZ10201806

AUDIO-12.3INCH DISPLAY & DVD & *MAR,BLACK,TRIM1#,2#,PASSENGER SIDE

main55409-33150-C0iAXZH10201807-202108

AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB,BLACK,TRIM1#,2#,PASSENGER SIDE

main55409-33150-C0iAXZH10201807-202108

AUDIO-8INCH DISPLAY & *DA & DVD & *MAR,BLACK,TRIM1#,2#,PASSENGER SIDE

main55409-33150-C0iAXZH1#,GSZ10201806

AUDIO-8INCH DISPLAY & *DA & CD & *MAR,BLACK,TRIM1#,2#,PASSENGER SIDE

main55409-33150-C0iAXZH11202108-202208

AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB,BLACK,TRIM0#,2#,3#,4#,6#,7#,PASSENGER SIDE

main55409-33150-C0iAXZH11202208

AUDIO-12.3INCH DISPLAY & DVD & *MAR,BLACK,TRIM0#,2#,3#,4#,6#,7#,PASSENGER SIDE

main55409-33150-E0iAXZH11201807-202108

AUDIO-8INCH DISPLAY & *DA & DVD & *MAR,NOBLE BROWN,TRIM5#,6#,PASSENGER SIDE

main55409-33150-E0iAXZH11201807-202108

AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB,NOBLE BROWN,TRIM5#,6#,PASSENGER SIDE

main55409-33150-E0iAXZH1#,GSZ10201806

AUDIO-12.3INCH DISPLAY & DVD & *MAR,NOBLE BROWN,TRIM5#,6#,PASSENGER SIDE

main55409-33150-E0iAXZH1#,GSZ10201806

AUDIO-8INCH DISPLAY & *DA & CD & *MAR,NOBLE BROWN,TRIM5#,6#,PASSENGER SIDE

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-33240iAXZH1#,GSZ10201806

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-33080-C0iAXZH1#,GSZ10201806

BLACK,TRIM1#,2#

main55510-33080-E0iAXZH1#,GSZ10201806

NOBLE BROWN,TRIM5#,6#

main55510-33090-C0iAXZH1#,GSZ10201806

AUDIO-12.3INCH DISPLAY & DVD & *MAR,BLACK,TRIM1#,2#

main55510-33090-C0iAXZH10201807-202108

KOREA SPEC&AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB,BLACK,TRIM1#,2#

main55510-33090-C0iAXZH10201807-202108

KOREA SPEC&AUDIO-8INCH DISPLAY & *DA & DVD & *MAR,BLACK,TRIM1#,2#

main55510-33090-C0iAXZH1#,GSZ10201806

AUDIO-8INCH DISPLAY & *DA & CD & *MAR,BLACK,TRIM1#,2#

main55510-33090-E0iAXZH11201807-202108

KOREA SPEC&AUDIO-8INCH DISPLAY & *DA & DVD & *MAR,NOBLE BROWN,TRIM5#,6#

main55510-33090-E0iAXZH1#,GSZ10201806

AUDIO-12.3INCH DISPLAY & DVD & *MAR,NOBLE BROWN,TRIM5#,6#

main55510-33090-E0iAXZH1#,GSZ10201806

AUDIO-8INCH DISPLAY & *DA & CD & *MAR,NOBLE BROWN,TRIM5#,6#

main55510-33090-E0iAXZH11201807-202108

KOREA SPEC&AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB,NOBLE BROWN,TRIM5#,6#

main55510-33140-C0iAXZH11202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main55510-33150-C0iAXZH11202108-202208

AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB,BLACK,TRIM0#,2#,3#,4#,6#,7#

main55510-33150-C0iAXZH11202208

AUDIO-12.3INCH DISPLAY & DVD & *MAR,BLACK,TRIM0#,2#,3#,4#,6#,7#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33140iAXZH11201806

DRIVER SIDE

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-33070iAXZH11201806

PASSENGER SIDE

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-33200iAXZH1#,GSZ10201806

8202

9011906951

main90119-06951

9017906278

main90179-06278

9018305094

main90183-05094

9167380612

main91673-80612

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

29 parts on this diagram · 8 diagrams in section
