FLOOR SIDE MEMBER
51095BHOOK SUB-ASSY, TRANSPORT, REAR RH
51963GHOOK, TRANSPORT, FRONT RH
51964GHOOK, TRANSPORT, FRONT LH
52148JSTOPPER, FRONT BUMPER REINFORCEMENT, RH
52149CSTOPPER, FRONT BUMPER REINFORCEMENT, LH
5701
57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57023HBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57024CBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57035PANEL SUB-ASSY, FRONT STEP, RH
57036PANEL SUB-ASSY, FRONT STEP, LH
57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57102CMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57119PLATE, FRONT SIDE MEMBER, FRONT
57129CPLATE, FRONT SIDE MEMBER, FRONT LH
57146PLATE, FRONT SIDE MEMBER, CENTER LH
57191EMEMBER SUB-ASSY, FRONT SIDE, INNER REAR RH
57192CMEMBER SUB-ASSY, FRONT SIDE, INNER REAR LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57466CGUSSET, CENTER FLOOR CROSSMEMBER, LH
57505CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57653AMEMBER, REAR FLOOR CROSS, NO.2
9011912439
main90119-12439
9095102002
main90951-02002
9167380820
main91673-80820
91677N1235
main91677-N1235

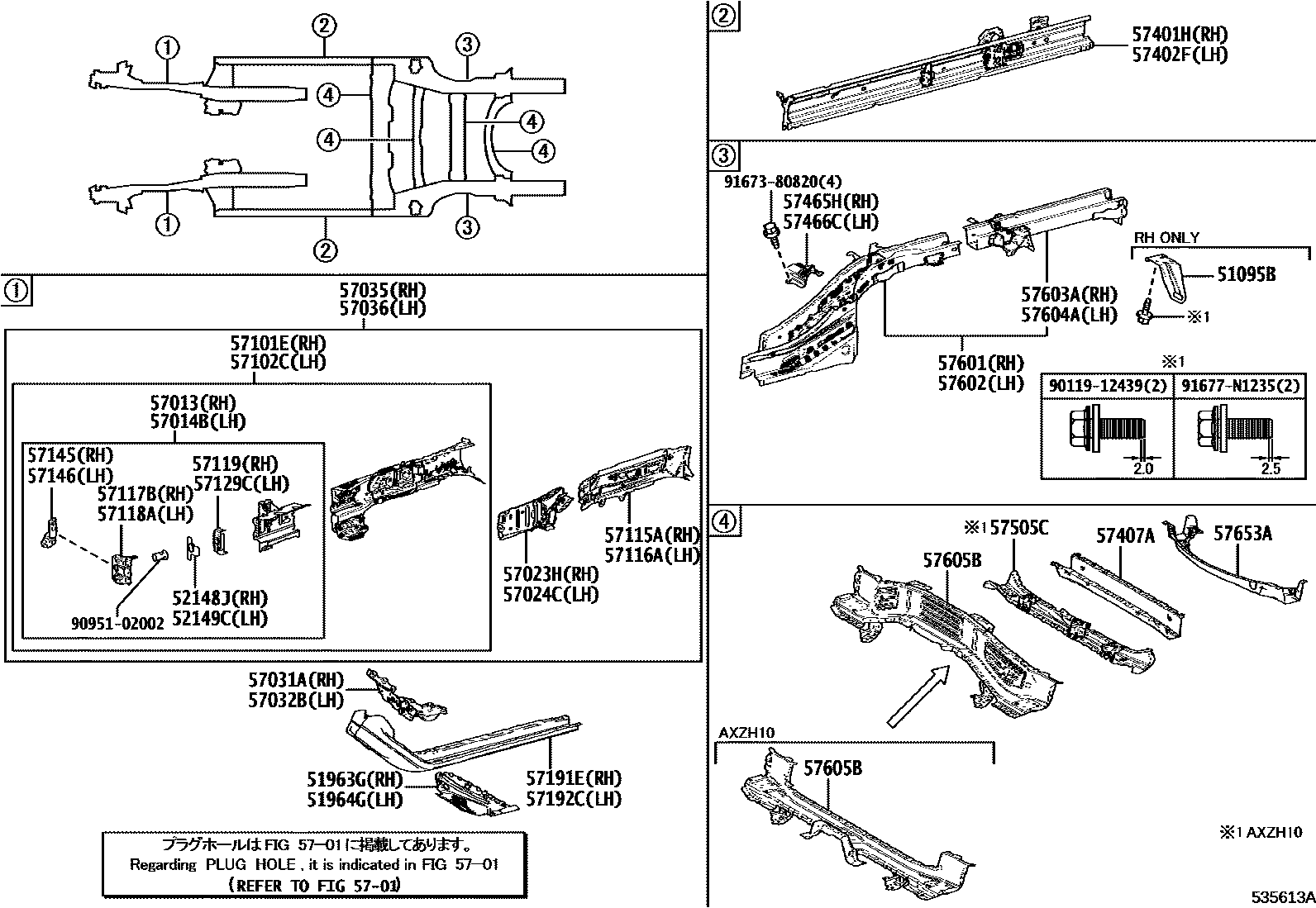

42 parts on this diagram · 1 diagram in section
