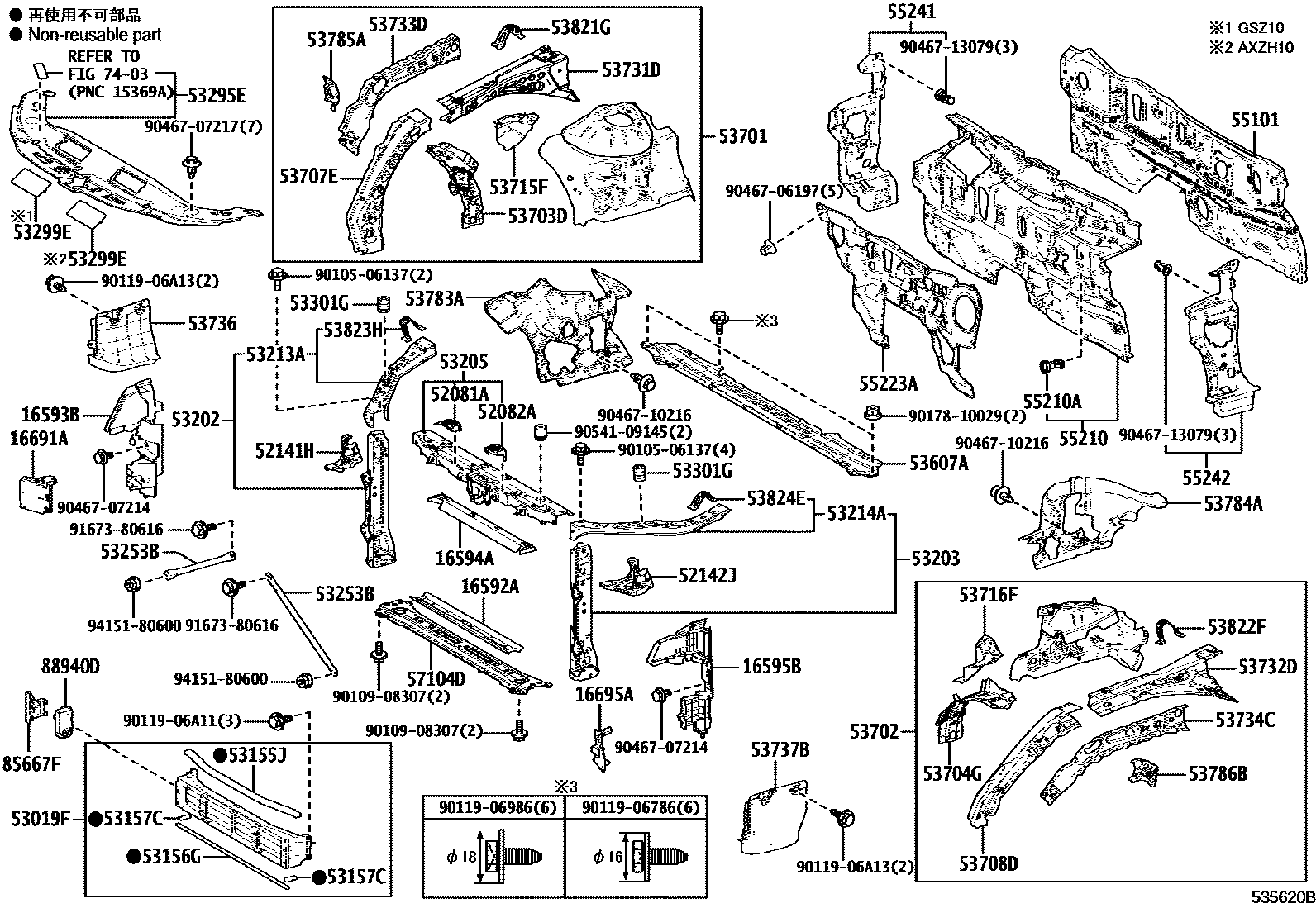

FRONT FENDER APRON & DASH PANEL

0001 1 0003 1AIRGUIDE & RADIATOR SUPPORT C0004 1RADIATOR SUPPORT & FENDER APR0005 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25010iA25AFXS,2GRFKS..AXZH11,GSZ10201806-202110

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25090iA25AFXS..AXZH1#201807-202110

main16593-25100i2GRFKS..GSZ10201806

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25010iA25AFXS..AXZH11201806-202110

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25080iA25AFXS..AXZH1#201807-202110

main16595-25090i2GRFKS..GSZ10201806

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25060iA25AFXS..AXZH10201806-202110

main16691-25130iA25AFXS..AXZH11202108

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25060iA25AFXS,2GRFKS..AXZH10,GSZ10201806-202002

sub16695-25061

main16695-25061iA25AFXS..AXZH10202003-202110

main16695-25120iA25AFXS..AXZH11202108

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52081-33040iAXZH1#,GSZ10201806-202110

52082ASTAY SUB-ASSY, FRONT BUMPER, LH

main52082-33030iAXZH1#,GSZ10201806-202110

52141HARM, FRONT BUMPER, UPPER RH

main52141-33140iAXZH1#,GSZ10201806-202110

52142JARM, FRONT BUMPER, UPPER LH

main52142-33120iAXZH1#,GSZ10201806-202110

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-33020iAXZH11202108

main53019-33040iAXZH10201807-201812

sub53019-33041

main53019-33041iAXZH1#201901

sub53019-33042

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-33120iAXZH1#201807

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-33010iAXZH1#201807

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-33010iAXZH1#201807

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-33110iAXZH1#,GSZ10201806-202110

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-33180iAXZH1#,GSZ10201806-202110

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-33902iAXZH1#,GSZ10201806-202110

53213ASUPPORT, RADIATOR, UPPER RH

main53213-33903iAXZH1#,GSZ10201806-202110

53214ASUPPORT, RADIATOR, UPPER LH

main53214-33903iAXZH1#,GSZ10201806-202110

53253BBRACKET, RADIATOR MOUNTING, UPPER

main53253-33010iAXZH1#,GSZ10201806

53295ESEAL, COOL AIR INTAKE DUCT

main53295-33150iAXZH1#201807

main53295-33160iGSZ10201806

53299EPLATE, COOL AIR INTAKE DUCT

main53299-33020iAXZH1#,GSZ10201806

53301GCUSHION, HOOD BUMPER

main90541-15033iAXZH1#,GSZ10201806-202110

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-33020iAXZH1#,GSZ10201806-202110

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-33200iAXZH1#,GSZ10201806-202110

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-33160iAXZH10201806-202110

53703DAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53703-33060iAXZH1#,GSZ10201806-202110

53704GAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53704-33060iAXZH10201806-202110

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-33020iAXZH1#,GSZ10201806-202110

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-33010iAXZH10201806-202110

53715FAPRON, FENDER SIDE, RH

main53715-33010iAXZH1#,GSZ10201806-202110

53716FAPRON, FENDER SIDE, LH

main53716-33010iAXZH10201806-202110

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-33100iAXZH1#,GSZ10201806-202110

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-33090iAXZH10201806-202110

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-33060iAXZH1#,GSZ10201806-202110

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-33060iAXZH10201806-202110

53736SEAL, FRONT FENDER APRON, RH

main53736-33050iAXZH1#,GSZ10201806-202110

53737BSEAL, FRONT FENDER APRON, LH

main53737-33030iAXZH1#,GSZ10201806-202110

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-33030iAXZH1#,GSZ10201806-202110

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-33040iAXZH1#,GSZ10201806-202110

53785AGUSSET, FRONT FENDER APRON, UPPER RH

main53785-33010iAXZH1#,GSZ10201806-202110

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-33010iAXZH10201806-202110

53821GBRACKET, FRONT FENDER, REAR RH

main53821-33090iAXZH1#,GSZ10201806-202110

53822FBRACKET, FRONT FENDER, REAR LH

main53822-33080iAXZH10201806-202110

53823HGUSSET, FRONT FENDER, RH

main53823-33060iAXZH1#,GSZ10201806-202110

53824EGUSSET, FRONT FENDER, LH

main53824-33060iAXZH1#,GSZ10201806-202110

55101PANEL SUB-ASSY, DASH

main55101-33470iAXZH1#,GSZ10201806

55210INSULATOR ASSY, DASH PANEL

main55210-33320iGSZ10201806

main55210-33340iAXZH1#201807

55210ACLIP

main90467-11122iAXZH1#,GSZ10201806

55223AINSULATOR, DASH PANEL, OUTER

main55223-33300iAXZH1#,GSZ10201806

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-33040iAXZH1#,GSZ10201806-202110

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-33040iAXZH1#,GSZ10201806-202110

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-33080iAXZH1#,GSZ10201806-202110

7403

85667FCOVER, MOTOR

main85667-33040iAXZH1#201807

88940DACTUATOR ASSY, SWING GRILLE

main88940-33040iAXZH1#202008

main88940-33060iAXZH10201807-202007

9010506137

main90105-06137

9010908307

main90109-08307

9011906786

main90119-06786

9011906986

main90119-06986

9011906A11

main90119-06A11

9011906A13

main90119-06A13

9017810029

main90178-10029

9046706197

main90467-06197

9046707214

main90467-07214

9046707217

main90467-07217

9046710216

main90467-10216

9046713079

main90467-13079

9054109145

main90541-09145

9167380616

main91673-80616

9415180600

main94151-80600

71 parts on this diagram · 4 diagrams in section
