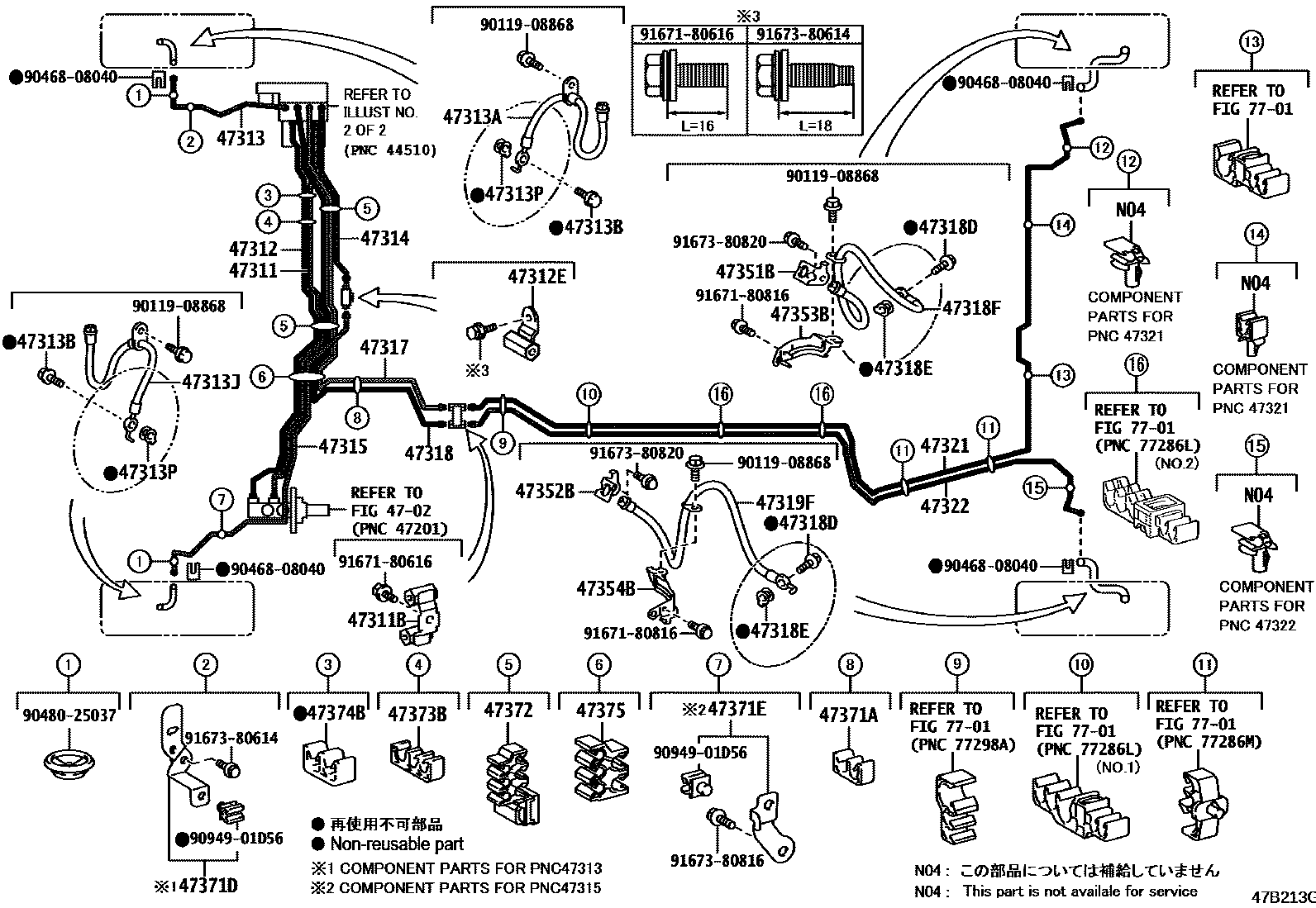

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-06770iGSZ10201806

main47311-33440iAXZH1#201807

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iAXZH11202108

47312TUBE, FRONT BRAKE, NO.2

main47312-06610iGSZ10201806

main47312-33330iAXZH1#201807

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10272iGSZ10201806

main90412-10306iAXZH1#201807

47313TUBE, FRONT BRAKE, NO.3

main47313-33300iGSZ10201806

main47313-33360iAXZH1#201807

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H65iAXZH1#,GSZ10201806-202110

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAXZH1#,GSZ10201806-202110

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H66iAXZH1#,GSZ10201806-202110

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iAXZH1#,GSZ10201806-202110

47314TUBE, FRONT BRAKE, NO.4

main47314-33230iAXZH1#201807

main47314-33290iGSZ10201806

47315TUBE, FRONT BRAKE, NO.5

main47315-33330iGSZ10201806

main47315-33340iAXZH1#201807

47317TUBE, FRONT BRAKE, NO.7

main47317-33380iGSZ10201806

main47317-33460iAXZH1#201807

47318TUBE, FRONT BRAKE, NO.8

main47318-33160iAXZH1#201807

main47318-33190iGSZ10201806

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAXZH1#,GSZ10201806-202110

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iAXZH1#,GSZ10201806-202110

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H69iAXZH11202108

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H70iAXZH1#,GSZ10201806-202110

47321TUBE, REAR BRAKE, NO.1

main47321-33240iGSZ10201806

main47321-33250iAXZH1#201807-202110

47322TUBE, REAR BRAKE, NO.2

main47322-33210iGSZ10201806

main47322-33220iAXZH1#201807-202110

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-47030iAXZH1#,GSZ10201806-202110

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-47030iAXZH1#,GSZ10201806-202110

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-10110iAXZH1#,GSZ10201806-202110

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-10060iAXZH1#,GSZ10201806-202110

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00904iAXZH1#,GSZ10201806

47371DCLAMP, BRAKE TUBE, NO.8

main47371-33340iAXZH1#,GSZ10201806

47371ECLAMP, BRAKE TUBE, NO.9

main47371-33350iAXZH11201806-202108

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D91iAXZH1#201807

main90949-01E31×2iGSZ10201806

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00857iGSZ10201806

main90949-01D99iAXZH1#201807

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E23iGSZ10201806

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E40iGSZ10201806

main90949-01E63×2iAXZH1#201807

7701

9011908868

main90119-08868

9046808040

main90468-08040

9048025037

main90480-25037

9094901D56

main90949-01D56

9167180616

main91671-80616

9167180816

main91671-80816

9167380614

main91673-80614

9167380816

main91673-80816

9167380820

main91673-80820

41 parts on this diagram · 4 diagrams in section
