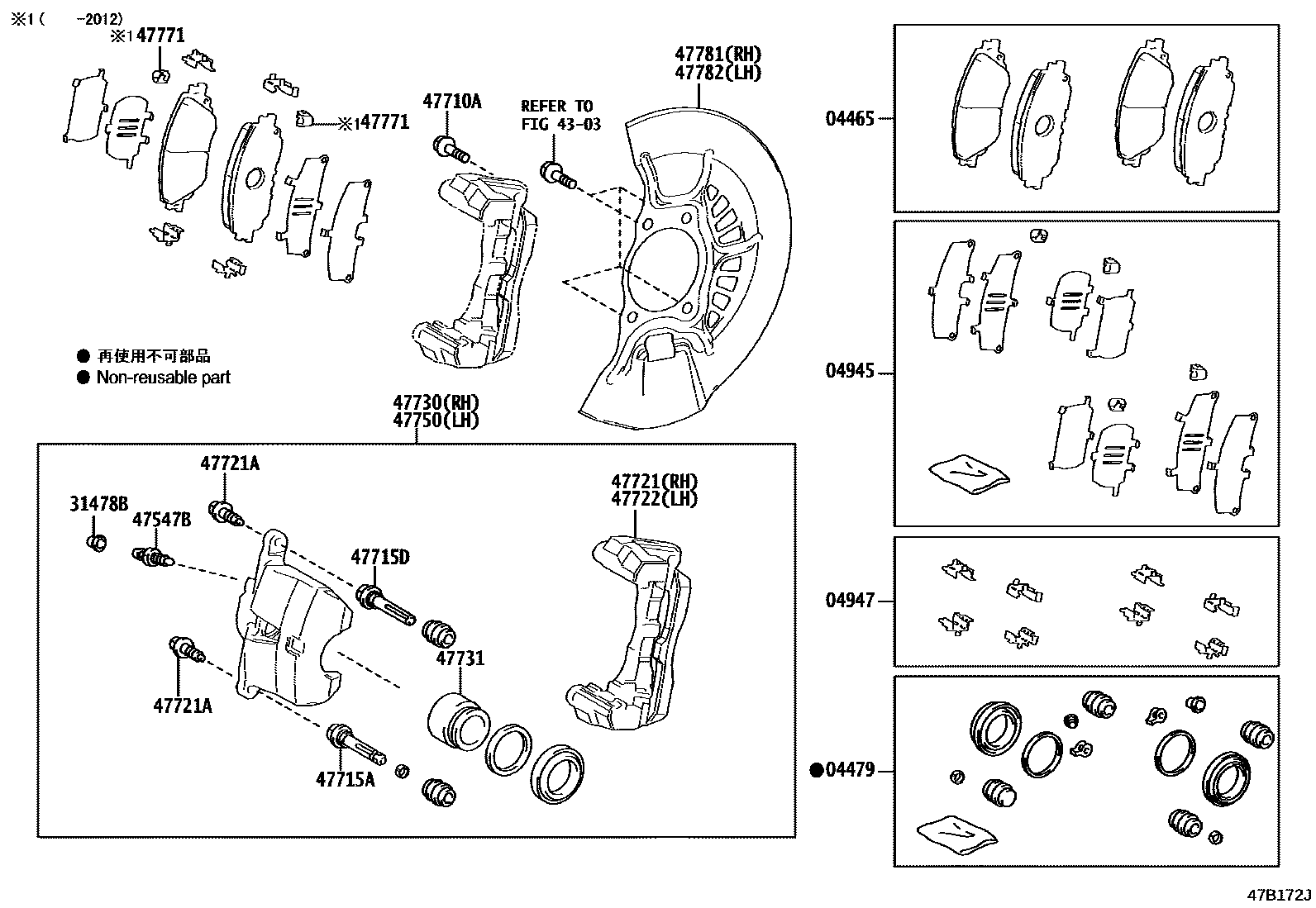

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-33480iAXZH11201806-202110

MARK NBK D6994H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33160iAXZH1#,GSZ10201806-202110

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33300iAXZH11201806-202206

main04945-42100iAXZH11202206

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33281iAXZH1#,GSZ10201806-202110

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAXZH1#,GSZ10201806-202110

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAXZH1#,GSZ10201806-202110

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iAXZH1#,GSZ10201806-202110

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-12A10iAXZH11201806-202110

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iAXZH1#,GSZ10201806-202110

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33382iAXZH1#,GSZ10201806-202110

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iAXZH1#,GSZ10201806-202110

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33312iAXZH1#,GSZ10201806-202110

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33381iAXZH1#,GSZ10201806-202110

47731PISTON, FRONT DISC BRAKE

main47731-12A10iAXZH1#,GSZ10201806-202110

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33311iAXZH1#,GSZ10201806-202110

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iAXZH1#,GSZ10201806-202012

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33060iAXZH1#,GSZ10201806-202110

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33060iAXZH1#,GSZ10201806-202110

19 parts on this diagram · 1 diagram in section
