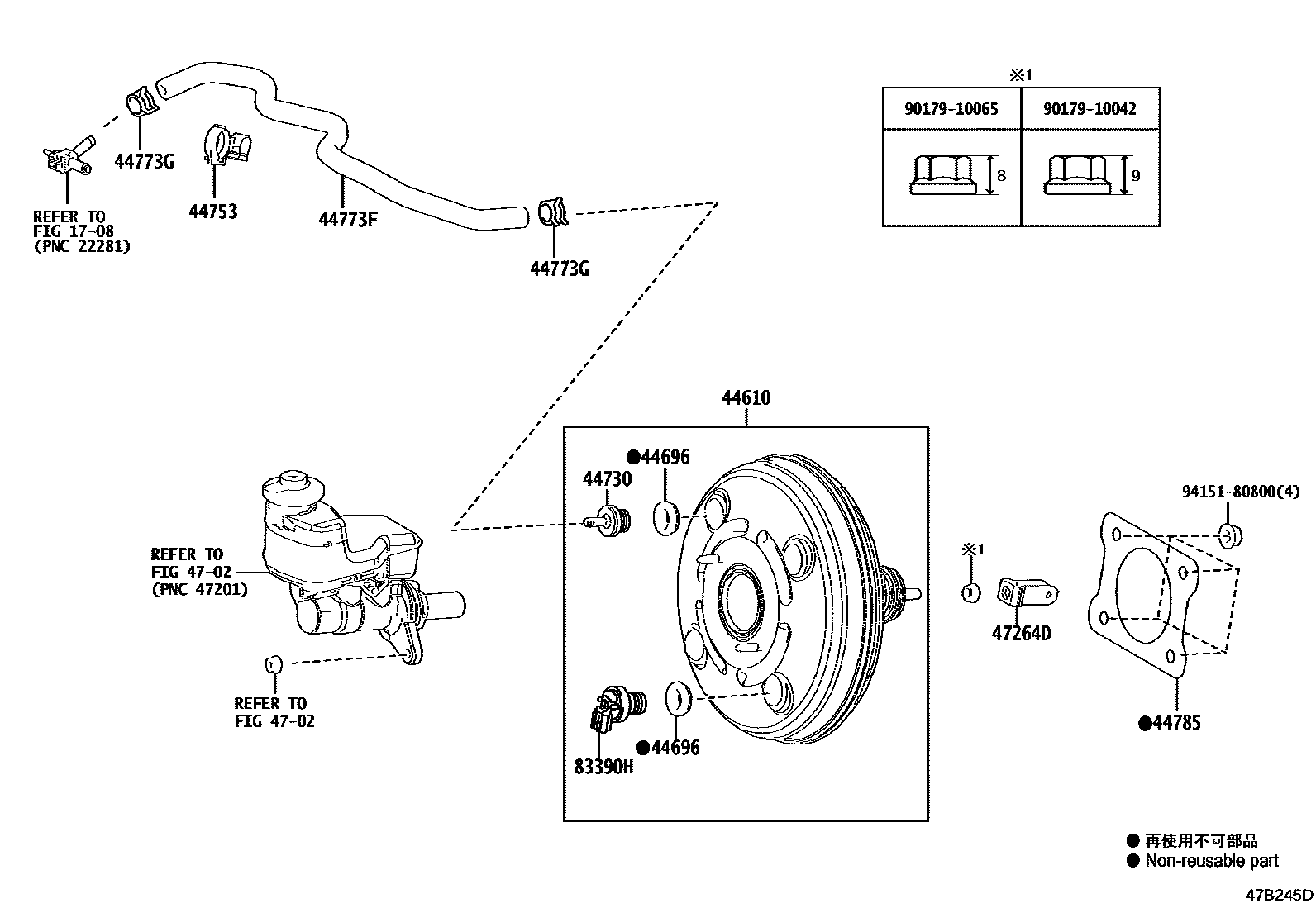

BRAKE BOOSTER & VACUUM TUBE

1708

44610BOOSTER ASSY, BRAKE

main44610-33A30iGSZ10201806

44696GROMMET, CHECK VALVE

main90480-24439iGSZ10201806

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iGSZ10201806

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-48340iGSZ10201806

44773FHOSE, UNION TO CHECK VALVE

main44773-33190iGSZ10201806

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGSZ10201806

44785GASKET, BRAKE BOOSTER

main44785-12040iGSZ10201806-202110

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-33030iGSZ10201806

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGSZ10201806

9017910042

main90179-10042

9017910065

main90179-10065

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
