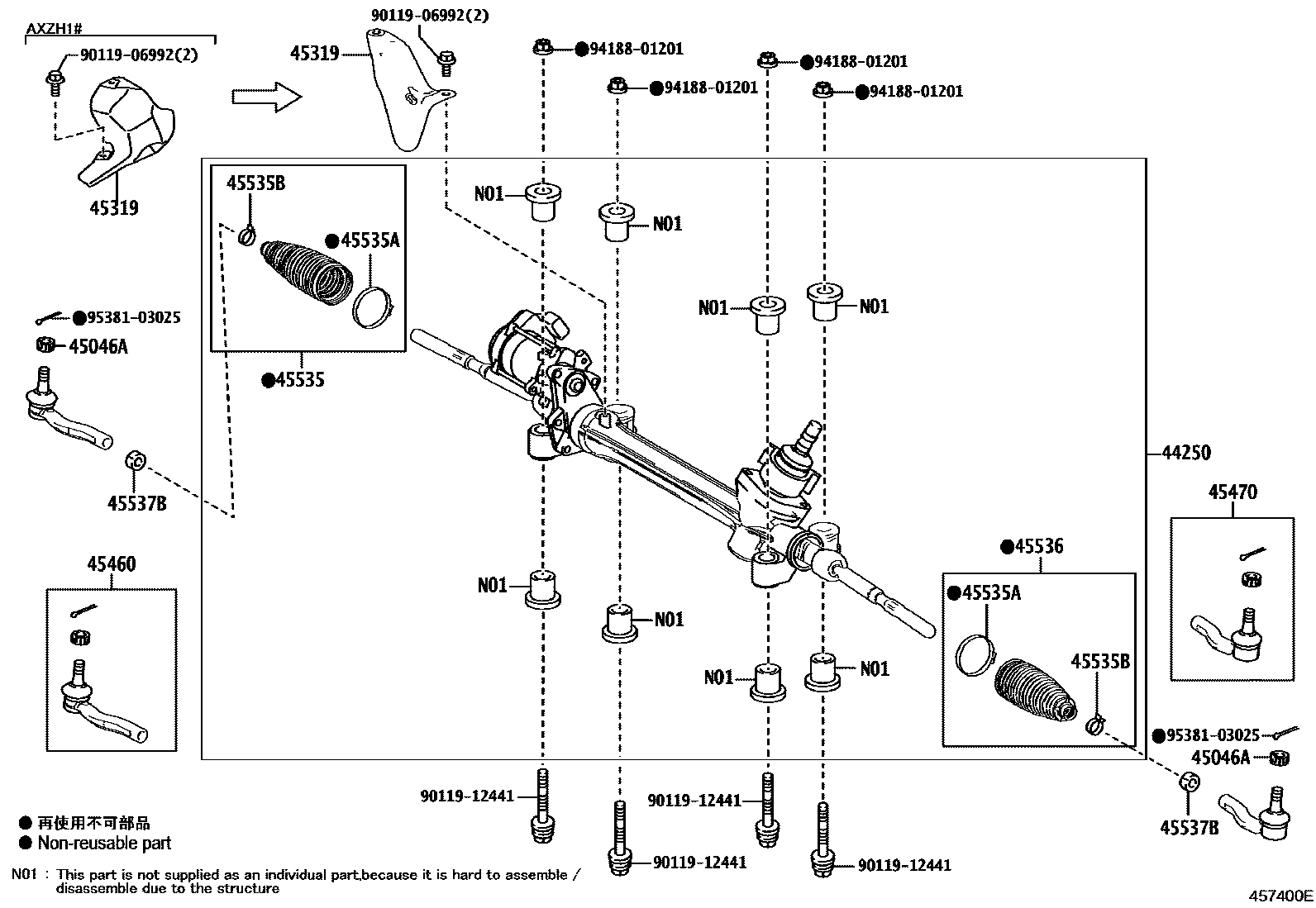

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-33670supersedes 44250-33B10i202108-202402

F SPORT&TIRE & DISC WHEEL-235/40R19, ALL SEASON TIRE, FOR F SPORT

main44250-33710supersedes 44250-33720i201806

LUXURY PACKAGE&TIRE & DISC WHEEL-*589

main44250-33711supersedes 44250-33B10i202108-202402

ULTRA LUXURY PACKAGE&TIRE & DISC WHEEL-235/45R18,ALL SEASON TIRE,ALUMI(SILVER)

main44250-33730i201806-202008

F SPORT&TIRE & DISC WHEEL-235/40R19 ALL SEASON TIRE, FOR F SPORT

F SPORT&TIRE & DISC WHEEL-235/40R19 ALL SEASON TIRE, FOR F SPORT

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2i201806-202110

45319INSULATOR, STEERING GEAR HEAT

45460ROD ASSY, TIE, RH

45470ROD ASSY, TIE, LH

45535BOOT, STEERING RACK, NO.1

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-06030×2i202108

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2i201806

45536BOOT, STEERING RACK, NO.2

45537BNUT, RACK END LOCK

main90178-16001×2i201806

9011906992

9011912441

9418801201

9538103025

14 parts on this diagram · 1 diagram in section
