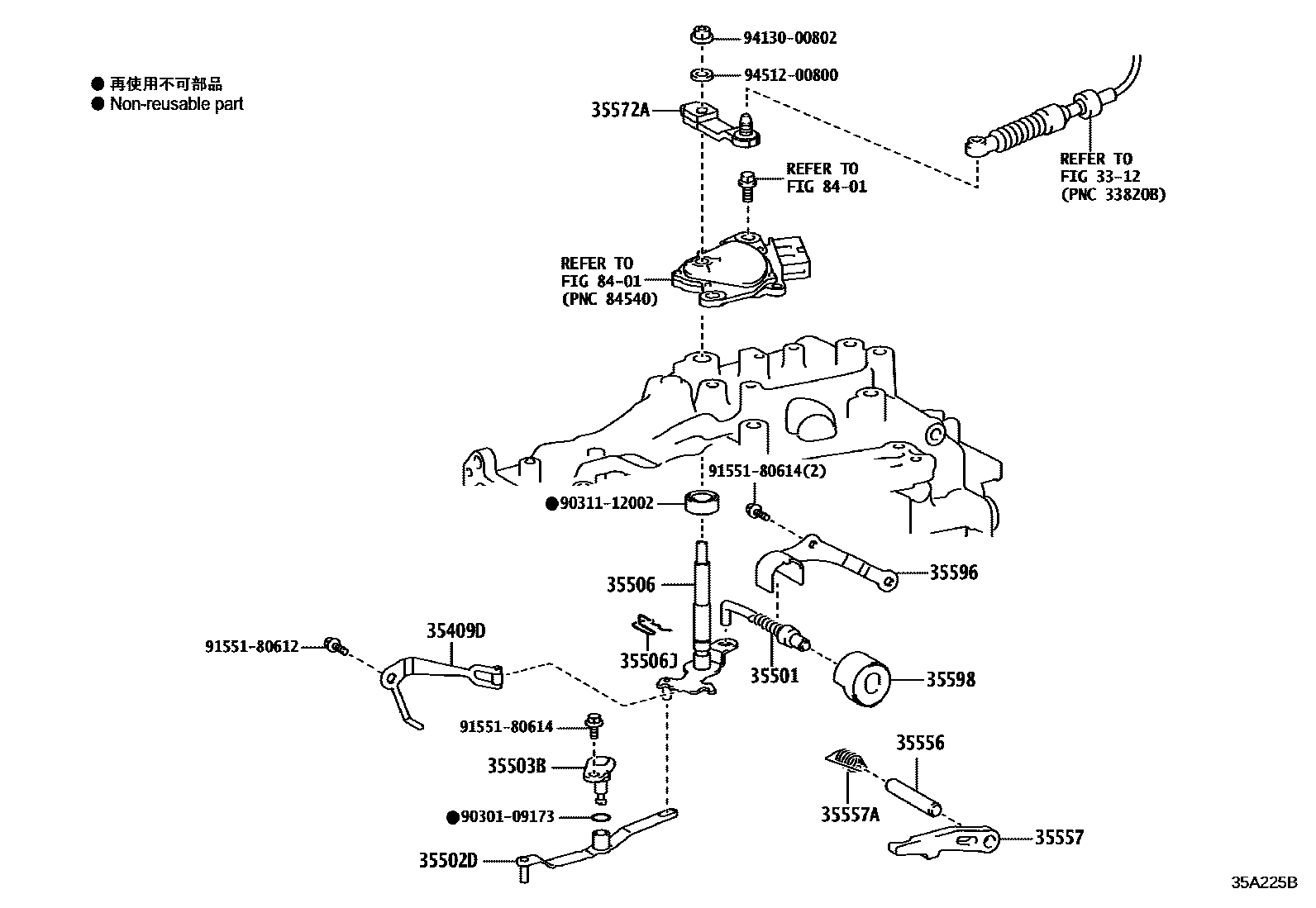

THROTTLE LINK & VALVE LEVER (ATM)

3312

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-48060iGSZ10201806-202004

TOYOTA:REFER 35-01

main35409-48060iGSZ10202006

AISIN AW:REFER 35-01

35501ROD SUB-ASSY, PARKING LOCK

main35501-48040iGSZ10201806-202004

TOYOTA:REFER 35-01

main35501-48040iGSZ10202006

AISIN AW:REFER 35-01

35502DLEVER SUB-ASSY, MANUAL VALVE LINK

main35502-48010iGSZ10201806-202004

TOYOTA:REFER 35-01

main35502-48010iGSZ10202006

AISIN AW:REFER 35-01

35503BSHAFT SUB-ASSY, MANUAL VALVE LINK

main35503-48010iGSZ10201806-202004

TOYOTA:REFER 35-01

main35503-48010iGSZ10202006

AISIN AW:REFER 35-01

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-48010iGSZ10201806-201905

TOYOTA:REFER 35-01

sub35506-48011

main35506-48011iGSZ10201906-202004

TOYOTA:REFER 35-01

main35506-48021iGSZ10202006-202107

AISIN AW:REFER 35-01

main35506-48022iGSZ10202111

AISIN AW:REFER 35-01

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09004iGSZ10201806-202004

TOYOTA:REFER 35-01

main90524-09004iGSZ10202006

AISIN AW:REFER 35-01

35556SHAFT, PARKING LOCK PAWL

main35556-48030iGSZ10201806-202004

TOYOTA:REFER 35-01

main35556-48040iGSZ10202006

AISIN AW:REFER 35-01

35557PAWL, PARKING LOCK

main35557-48040iGSZ10201806-202004

TOYOTA:REFER 35-01

main35557-48040iGSZ10202006

AISIN AW:REFER 35-01

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-29030iGSZ10201806-202004

TOYOTA:REFER 35-01

main90508-29030iGSZ10202006

AISIN AW:REFER 35-01

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-48050iGSZ10201806-202004

TOYOTA:REFER 35-01

sub35572-48051

main35572-48050iGSZ10202006-202107

AISIN AW:REFER 35-01

sub35572-48051

main35572-48051iGSZ10202111

35596PLATE, PAWL STOPPER

main35596-48030iGSZ10201806-202004

TOYOTA:REFER 35-01

main35596-48030iGSZ10202006

AISIN AW:REFER 35-01

35598SLEEVE, PARKING LOCK

main35598-48040iGSZ10201806-202004

TOYOTA:REFER 35-01

main35598-48040iGSZ10202006

AISIN AW:REFER 35-01

8401

9030109173

main90301-09173

9031112002

main90311-12002

9155180612

main91551-80612

9155180614

main91551-80614

9413000802

main94130-00802

9451200800

main94512-00800

20 parts on this diagram · 1 diagram in section
