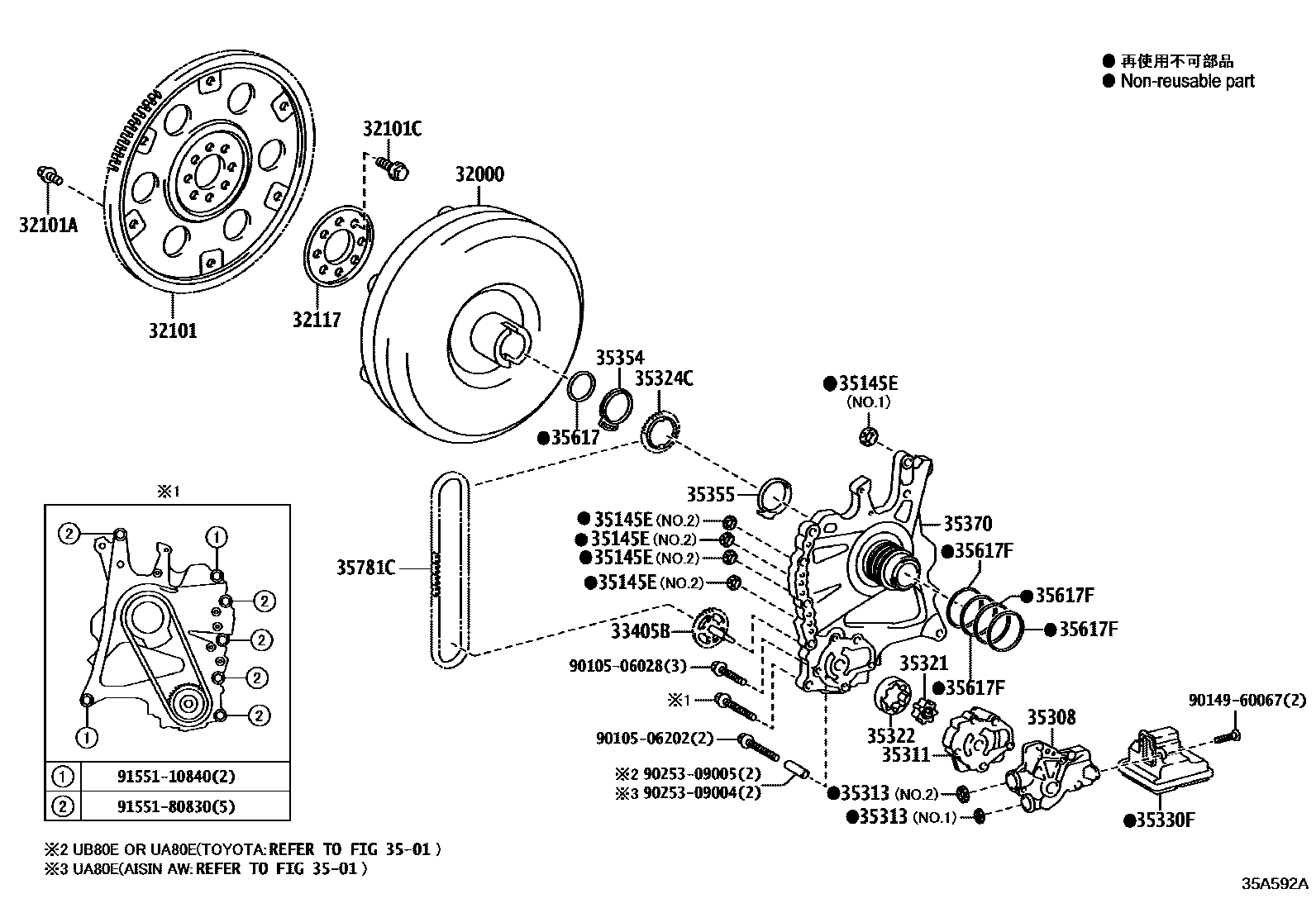

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13
32117SPACER, DRIVE PLATE, REAR
33405BSHAFT SUB-ASSY, OIL PUMP DRIVE
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
3501
35145EGASKET, TRANSAXLE CASE
*229,NO.1:REF.ILLUST
NO.1,AISIN:SEE 35-01
NO.1,AISIN:SEE 35-01
NO.2,AISIN:SEE 35-01
*229,NO.2:REF.ILLUST
NO.2,AISIN:SEE 35-01
35308COVER SUB-ASSY, FRONT OIL PUMP
AISIN AW:REFER 35-01
35311BODY, FRONT OIL PUMP
AISIN AW:REFER 35-01
35313GASKET, FRONT OIL PUMP COVER
*229,NO.1:REF.ILLUST
NO.1,AISIN:SEE 35-01
NO.2,AISIN:SEE 35-01
*229,NO.2:REF.ILLUST
35321GEAR, FRONT OIL PUMP DRIVE
T=16.66,TOYOTA:REFER 35-01
T=16.66,AISIN AW:REFER 35-01
35322GEAR, FRONT OIL PUMP DRIVEN
T=16.66,TOYOTA:REFER 35-01
T=16.66,AISIN AW:REFER 35-01
35324CSPROCKET, TRANSMISSION OIL PUMP DRIVE
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35330FSTRAINER ASSY, OIL
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35354WASHER, OIL PUMP SPROCKET THRUST, FRONT
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35355WASHER, OIL PUMP SPROCKET THRUST, REAR
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
35370SHAFT ASSY, STATOR
AISIN AW:REFER 35-01
35617RING, CLUTCH DRUM OIL SEAL
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35617FRING, CLUTCH DRUM OIL SEAL
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35781CCHAIN, TRANSMISSION DRIVE
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
9010506028
main90105-06028
9010506202
main90105-06202
9014960067
main90149-60067
9025309004
main90253-09004
9025309005
main90253-09005
9155110840
main91551-10840
9155180830
main91551-80830
28 parts on this diagram · 1 diagram in section
