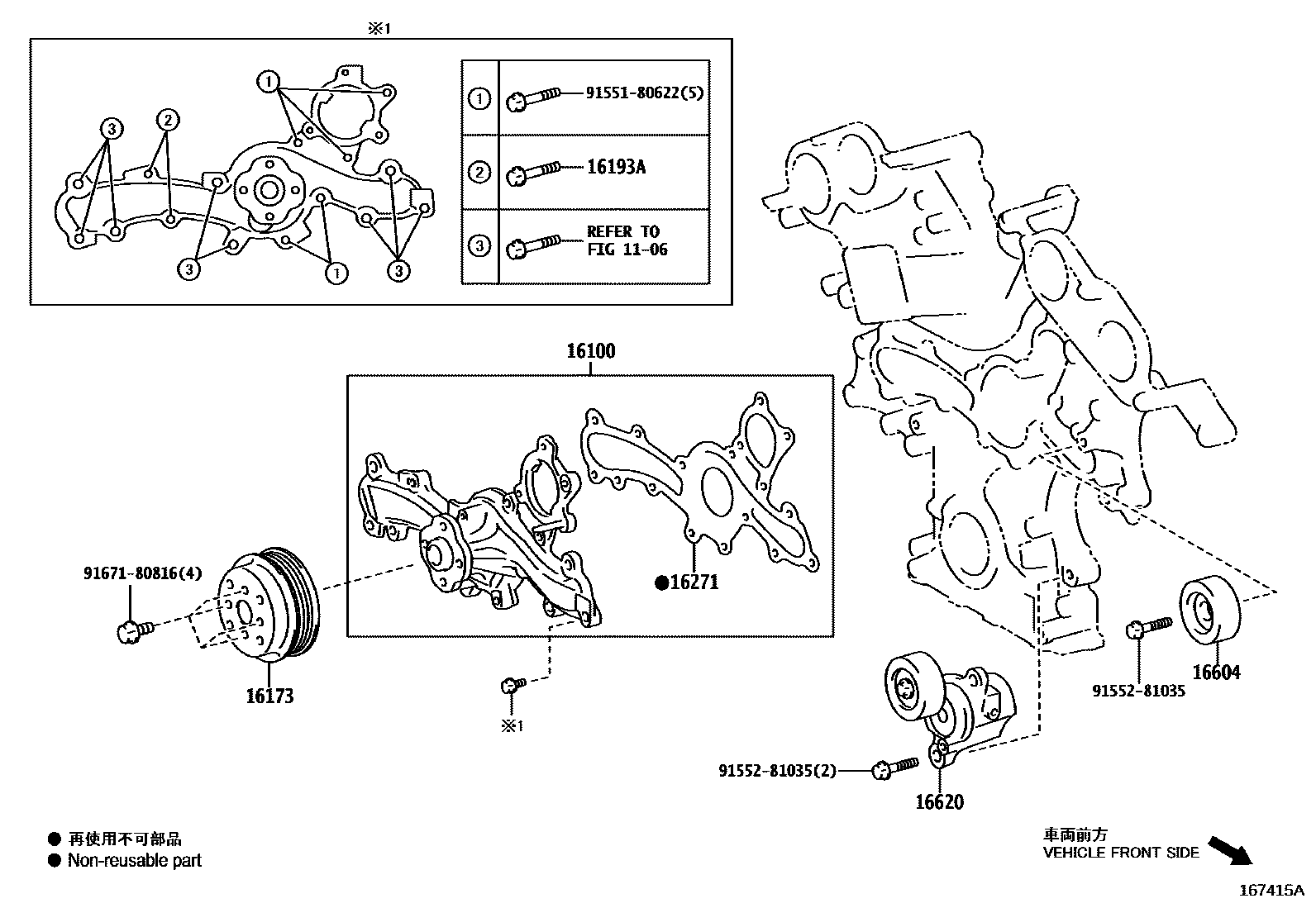

WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-39615i2GRFKS..GSZ10¥9,500201806-202004

sub16100-39616¥9,500

main16100-39616i2GRFKS..GSZ10¥9,500202004

16173PULLEY, WATER PUMP

main16173-31030i2GRFKS..GSZ10¥3,960201806-202003

sub16173-31031¥3,000

main16173-31031i2GRFKS..GSZ10¥3,000202004

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i2GRFKS..GSZ10¥210201806

16271GASKET, WATER PUMP

main16271-31050i2GRFKS..GSZ10¥1,740201806

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31030i2GRFKS..GSZ10¥4,180201806

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31090i2GRFKS..GSZ10¥15,200201806

9155180622

main91551-80622¥60

9155281035

main91552-81035¥120

9167180816

main91671-80816¥80

10 parts on this diagram · 1 diagram in section
