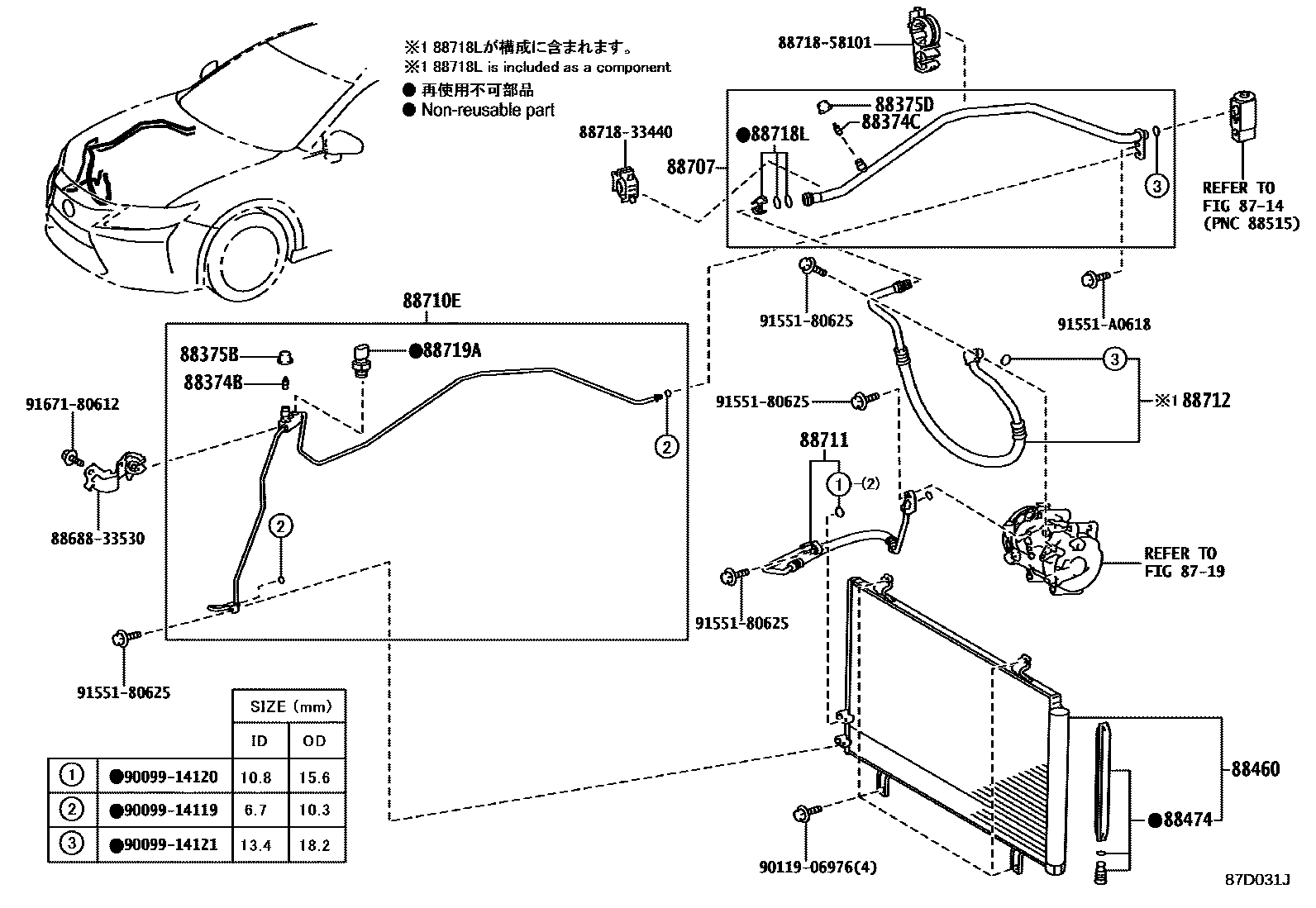

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAVV60,GSV60201206-201507

88374CVALVE, SERVICE, NO.2

main88374-30010iAVV60,GSV60201206-201507

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iAVV60,GSV60201206-201507

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAVV60,GSV60201206-201507

88460CONDENSER ASSY, COOLER

main88460-33160iAVV60201206-201507

main88460-33170iGSV60201206-201503

main88460-33180iGSV60201503-201507

88474DRYER, COOLER

main88474-12010iGSV60201503-201507

main88474-17010iGSV60201206-201503

main88474-47030iAVV60201206-201507

88707PIPE SUB-ASSY, SUCTION

main88707-33040iGSV60201206-201507

main88707-33070iAVV60201206-201507

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-33180iGSV60201206-201507

main88710-33310iAVV60201206-201507

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33260iGSV60201206-201507

main88711-33280iAVV60201206-201507

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-33290iGSV60201206-201507

main88712-33310iAVV60201206-201507

88718LCLAMP, PIPING

main88718-52280iAVV60,GSV60201206-201507

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAVV60,GSV60201206-201507

8868833530BRACKET, COOLER DIAPHRAGM

main88688-33530

8871833440PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33440

8871858101PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-58101

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906976

main90119-06976

9155180625

main91551-80625

91551A0618

main91551-A0618

9167180612

main91671-80612

24 parts on this diagram · 2 diagrams in section
