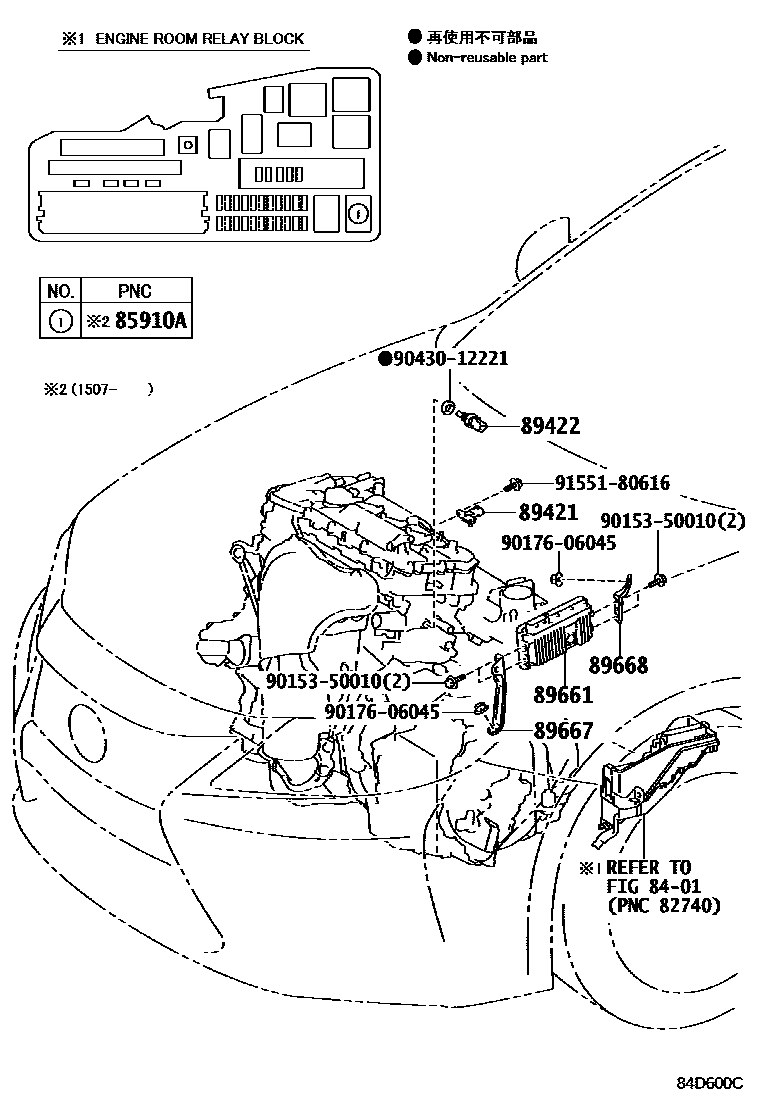

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iAVV60201507

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iAVV60201206-201507

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAVV60,GSV60201206-201507

89661COMPUTER, ENGINE CONTROL

main89661-33L20iAVV60201206-201408

sub89661-33L21

main89661-33M70iGSV60201206-201209

sub89661-33M71

main89661-33M71iGSV60201210-201408

sub89661-33M72

main89661-33N00iGSV60201608

main89661-33Q10iGSV60201408-201412

sub89661-33Q11

main89661-33Q11iGSV60201501-201507

sub89661-33Q12

main89661-33Q40iAVV60201408-201507

main89661-33R40iAVV60201507-201610

sub89661-33R41

main89661-33R41iAVV60201611-201612

sub89661-33R42

main89661-33R42iAVV60201701

main89661-33R70iGSV60201507-201608

sub89661-33R71

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33150iAVV60,GSV60201206-201507

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33230iAVV60,GSV60201206-201507

9015350010

main90153-50010

9017606045

main90176-06045

9043012221

main90430-12221

9155180616

main91551-80616

11 parts on this diagram · 2 diagrams in section
