SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1COWL 0012 1COWL 0013 1INSTRUMENT PANEL 1/2 0014 1INSTRUMENT PANEL 1/2 0015 1INSTRUMENT PANEL 2/2 0016 1STEERING 0017 1STEERING 0018 1SEAT 0019 1DOOR & ROOF 0020 1FLOOR & LUGGAGE

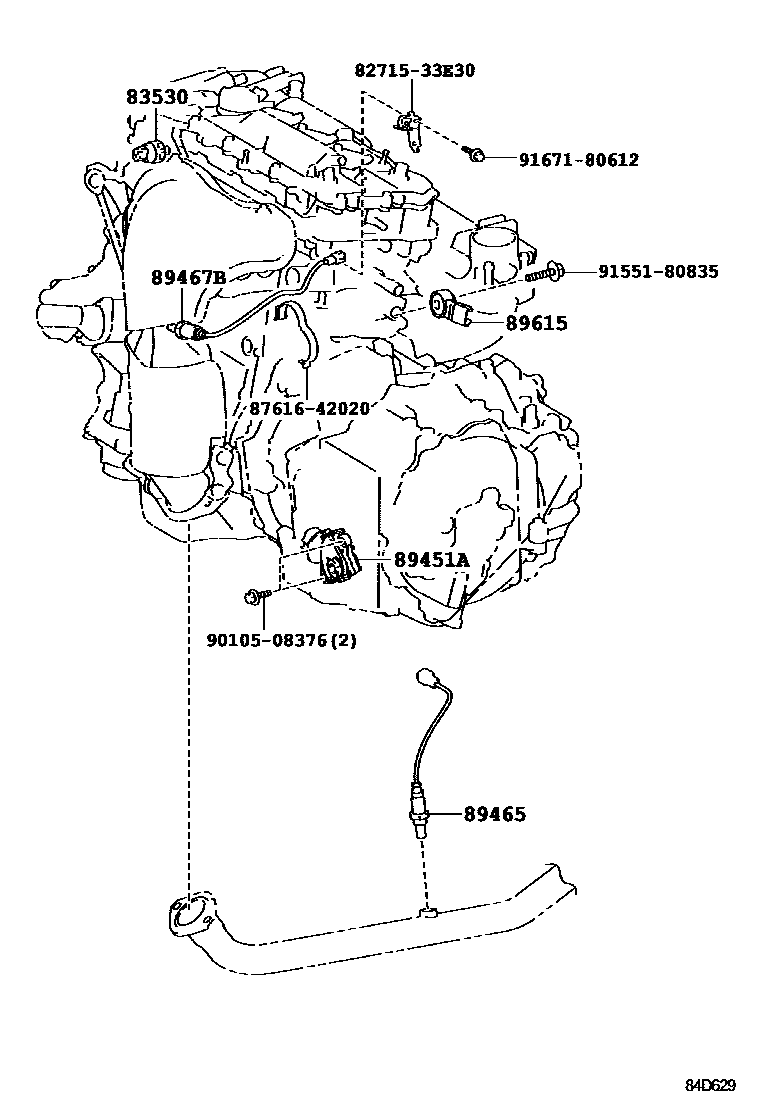

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAVV60,GSV60201206-201507

DENSO

main83530-60020iAVV60,GSV60201206-201507

YAZAKI

89451ASENSOR, SHIFT LEVER POSITION

main89451-48010iAVV60201206-201507

89465SENSOR, OXYGEN

main89465-33360iGSV60201206-201408

main89465-33470iAVV60201206-201507

main89465-33600iGSV60201408-201507

89467BSENSOR, AIR FUEL RATIO

main89467-33220iGSV60201206-201408

main89467-48190iAVV60201206-201507

main89467-48280iGSV60201408-201507

89615SENSOR, KNOCK CONTROL

main89615-20090iAVV60201206-201507

8271533E30BRACKET,WIRING HARNESS CLAMP

main82715-33E30

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9010508376

main90105-08376

9155180835

main91551-80835

9167180612

main91671-80612

10 parts on this diagram · 20 diagrams in section
