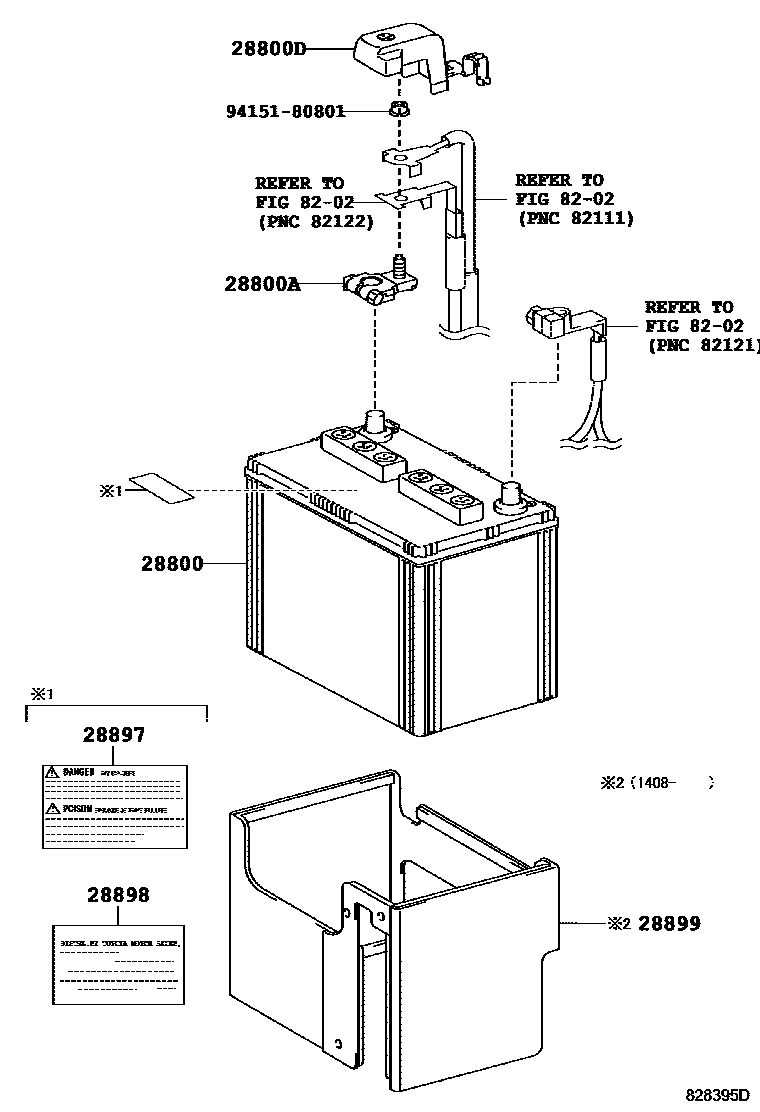

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-36050i2ARFXE..AVV60201206-201507

S65D26R

sub28800-36051

main28800-38080i2GRFE..GSV60201507

80D26L

sub28800-38081

main28800-74142i2GRFE..GSV60201206-201507

80D26L

sub28800-64132

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ARFXE..AVV60201206-201507

main90982-05062i2GRFE..GSV60201206-201507

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33360i2GRFE..GSV60201206-201507

main82821-47110i2ARFXE..AVV60201206-201507

28897PLATE, BATTERY CAUTION

main28897-46020

28898PLATE, BATTERY

main28898-20010i2GRFE..GSV60201206-201507

28899INSULATOR, BATTERY

main28899-31190i2GRFE..GSV60201507

main28899-31200i2GRFE..GSV60201408-201507

8202

9415180801

main94151-80801

8 parts on this diagram · 5 diagrams in section
