INTERIOR LAMP

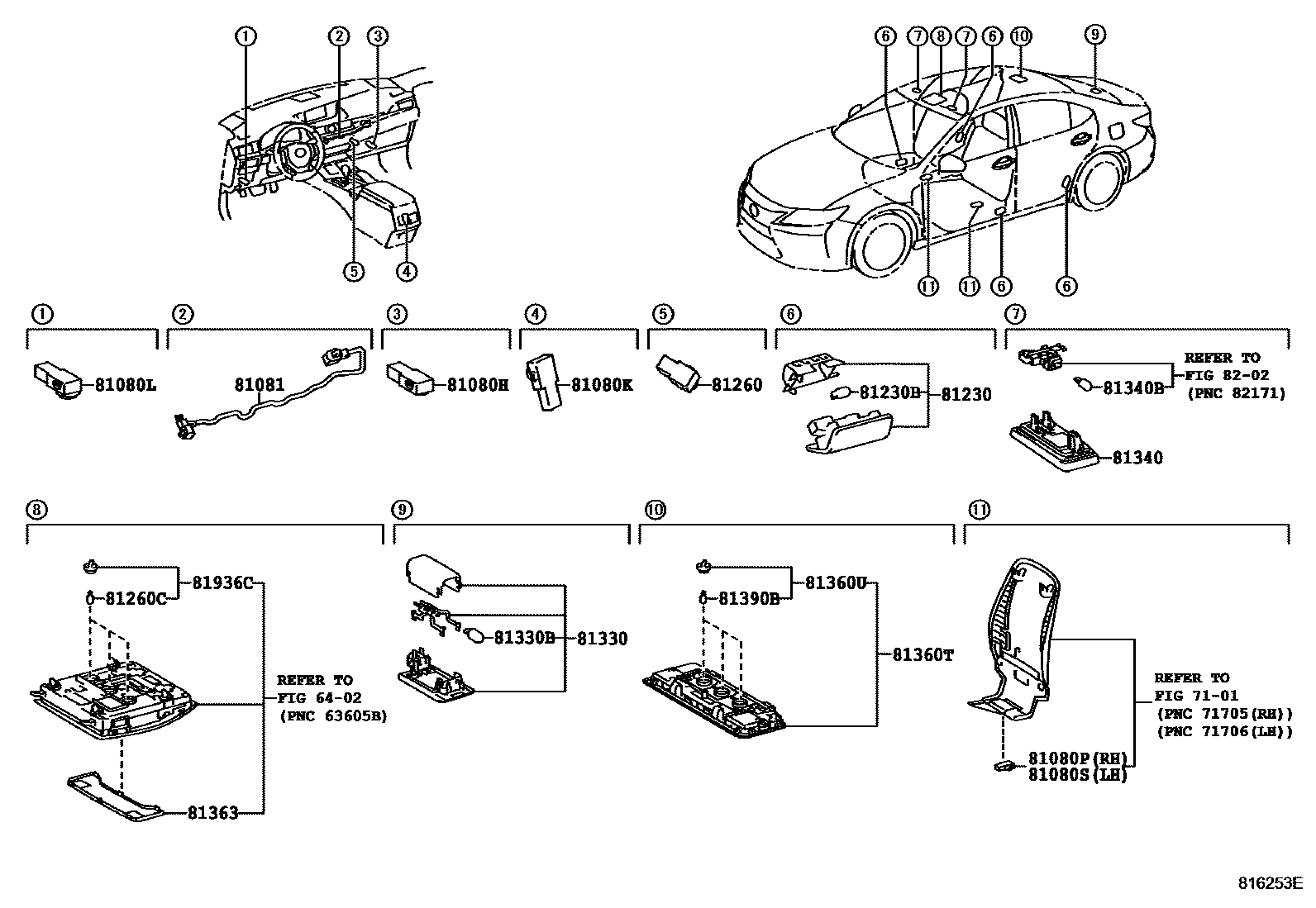

Parts diagram

6402

7101

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-30010i201206-201607

main81080-33290i201706

main81080-58100i201608-201705

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-22040i201206-201405

main81080-33290i201704

main81080-58100i201406-201703

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-33090i201206-201708

main81080-33310i201709

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-30010i201206-201308

KOREA SPEC&D PACKAGE&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201206-201308

KOREA SPEC&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))

main81080-30010i201206-201712

KOREA SPEC&C PACKAGE&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201308-201507

KOREA SPEC&C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDS EYE MAPLE)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201308-201507

KOREA SPEC&C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO)&SEAT HEATER-WITH(HEATER(*DRP)& WIND(*DRP))

main81080-30010i201308-201507

KOREA SPEC&C PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WI

main81080-30010i201308-201507

KOREA SPEC&C PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)

main81080-30010i201308-201507

KOREA SPEC&D PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WI

main81080-30010i201308-201507

KOREA SPEC&D PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)

main81080-30010i201308-201712

KOREA SPEC&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201308-201408

MEXICO SPEC&C PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))

main81080-30010i201308-201408

MEXICO SPEC&C PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&C PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&B PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&B PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&B PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&B PACKAGE&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(

main81080-30170i201801

KOREA SPEC&B PACKAGE&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&B PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&B PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&B PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&C PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&C PACKAGE&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(

main81080-30170i201801

KOREA SPEC&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-30010i201507-201712

KOREA SPEC&B PACKAGE&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201206-201308

KOREA SPEC&D PACKAGE&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201206-201308

KOREA SPEC&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))

main81080-30010i201206-201712

KOREA SPEC&C PACKAGE&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201308-201408

MEXICO SPEC&C PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))

main81080-30010i201308-201408

MEXICO SPEC&C PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))

main81080-30010i201308-201507

KOREA SPEC&C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDS EYE MAPLE)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201308-201507

KOREA SPEC&C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO)&SEAT HEATER-WITH(HEATER(*DRP)& WIND(*DRP))

main81080-30010i201408-201507

KOREA SPEC&C PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WI

main81080-30010i201408-201507

KOREA SPEC&C PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)

main81080-30010i201408-201507

KOREA SPEC&D PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WI

main81080-30010i201408-201507

KOREA SPEC&D PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)

main81080-30010i201408-201712

KOREA SPEC&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&C PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&B PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&B PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&B PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30010i201507-201712

KOREA SPEC&D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(

main81080-30170i201801

KOREA SPEC&B PACKAGE&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&B PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&B PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&C PACKAGE&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&C PACKAGE&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&FRONT POWER SEAT-WITH(*DRS 10WAY & *PAS SHOULDER SWITCH)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(

main81080-30170i201801

KOREA SPEC&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))

main81080-30170i201801

KOREA SPEC&B PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL&FRONT POWER SEAT-WITH(*DRS 10WAY)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81081-33010i201206-201507

DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)

main81081-33010i201206-201507

DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)

main81081-33010i201507

DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP)

81230LAMP ASSY, COURTESY

main81230-30200i201304-201507

main81230-47010i201206-201303

81230BBULB(FOR COURTESY LAMP)

main90981-12010i201206-201507

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-22040i201206-201405

main81080-33290i201704

main81080-58100i201406-201703

81260CBULB(FOR MAP LAMP)

main90981-11062i201206-201507

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-33030i201206-201507

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-12010i201206-201507

12V 5W

81340LAMP ASSY, VANITY

main81340-30110i201206-201507

81340BBULB (FOR VANITY LAMP)

main90981-11062i201206-201507

12V 8W

81360TLAMP ASSY, SPOT

main81360-33040-A0i201206-201507

ECRU,TRIM0#

main81360-33040-B0i201206-201507

LT.GRAY,TRIM1#,2#

main81360-33040-B0i201206-201507

LT.GRAY,TRIM1#,2#,3#

main81360-48120-A0i201507-201509

ECRU,TRIM0#,5#

main81360-48120-B1i201507-201509

MOON STONE,TRIM1#,2#

main81360-48140-A0i201509

ECRU,TRIM0#,41,5#

main81360-48140-A0i201509

ECRU,TRIM0#,5#

main81360-48140-B1i201509

MOON STONE,TRIM1#,2#,40

main81360-48140-B1i201509

MOON STONE,TRIM1#,2#

81360UBULB, SPOT LAMP

main81936-12150i201206-201507

81363LENS, ROOM LAMP, OUTER

main81363-33010i201206-201507

81390BBULB, SPOT LAMP

main90981-11062i201206-201507

12V 8W

81936CBULB ASSY

main81936-12150i201206-201507

8202

22 parts on this diagram · 2 diagrams in section
