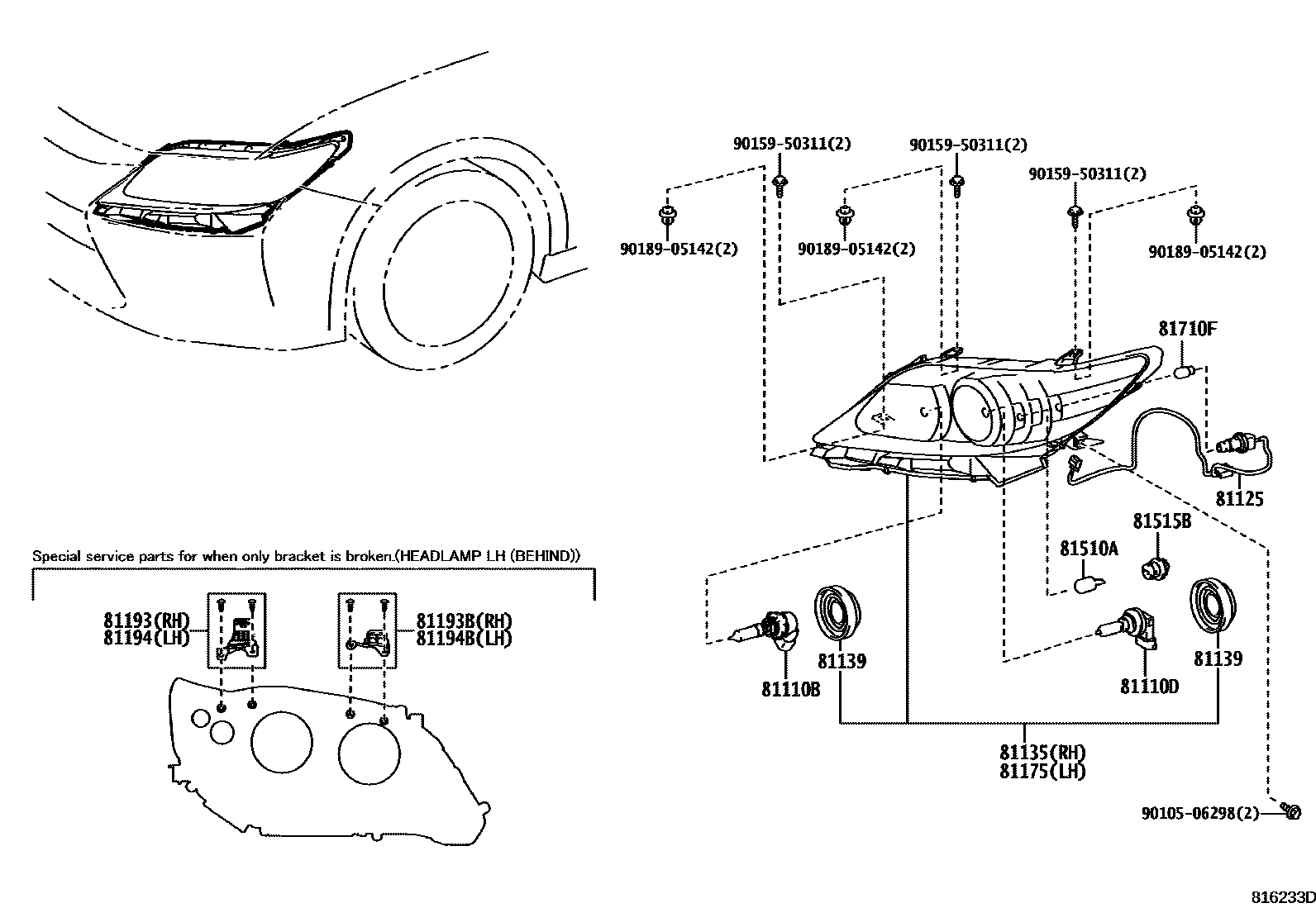

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1DISCHARGE HEADLAMP 0003 1KOREA SPEC & HIGH BEAM(HALOGE0004 1HIGH BEAM(HALOGEN) 0005 1KOREA SPEC & HIGH BEAM(LED) 0006 1HIGH BEAM(LED)

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iAVV60,GSV60201206-201507

12V65W(SAE),60W(ECE)

main90981-13084iAVV60,GSV60201507

12V 65W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iAVV60,GSV60201206-201507

12V 55W,HALOGEN

81125CORD, HEADLAMP

main81125-33A50iAVV60,GSV60201507

main81125-33B30iAVV60,GSV60201206-201507

81135UNIT ASSY, HEADLAMP, RH

main81105-33B30iAVV60,GSV60201206-201507

main81140-33A50iAVV60,GSV60201507

81139COVER, HEADLAMP SOCKET

main90075-65006iAVV60,GSV60201206-201507

KOREA SPEC&HEAD LAMP-DISCHARGE & *DRL

main90075-65006iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL

main90075-65006iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL

81175UNIT ASSY, HEADLAMP, LH

main81070-33550iAVV60,GSV60201507

main81106-33B30iAVV60,GSV60201206-201507

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-33080iAVV60,GSV60201206-201507

main81193-33100iAVV60,GSV60201507

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-33090iAVV60,GSV60201206-201507

main81193-33110iAVV60,GSV60201507

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-33080iAVV60,GSV60201206-201507

main81194-33100iAVV60,GSV60201507

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-33090iAVV60,GSV60201206-201507

main81194-33110iAVV60,GSV60201507

81510ABULB, FRONT TURN SIGNAL & PARKING LAMP

main90981-15024iAVV60,GSV60201206-201507

12V 28/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60083iAVV60,GSV60201206-201507

81710FBULB, FRONT SIDE MAKER LAMP

main90981-11069iAVV60,GSV60201507

main99132-12050iAVV60,GSV60201206-201507

9010506298

main90105-06298

9015950311

main90159-50311

9018905142

main90189-05142

16 parts on this diagram · 6 diagrams in section
