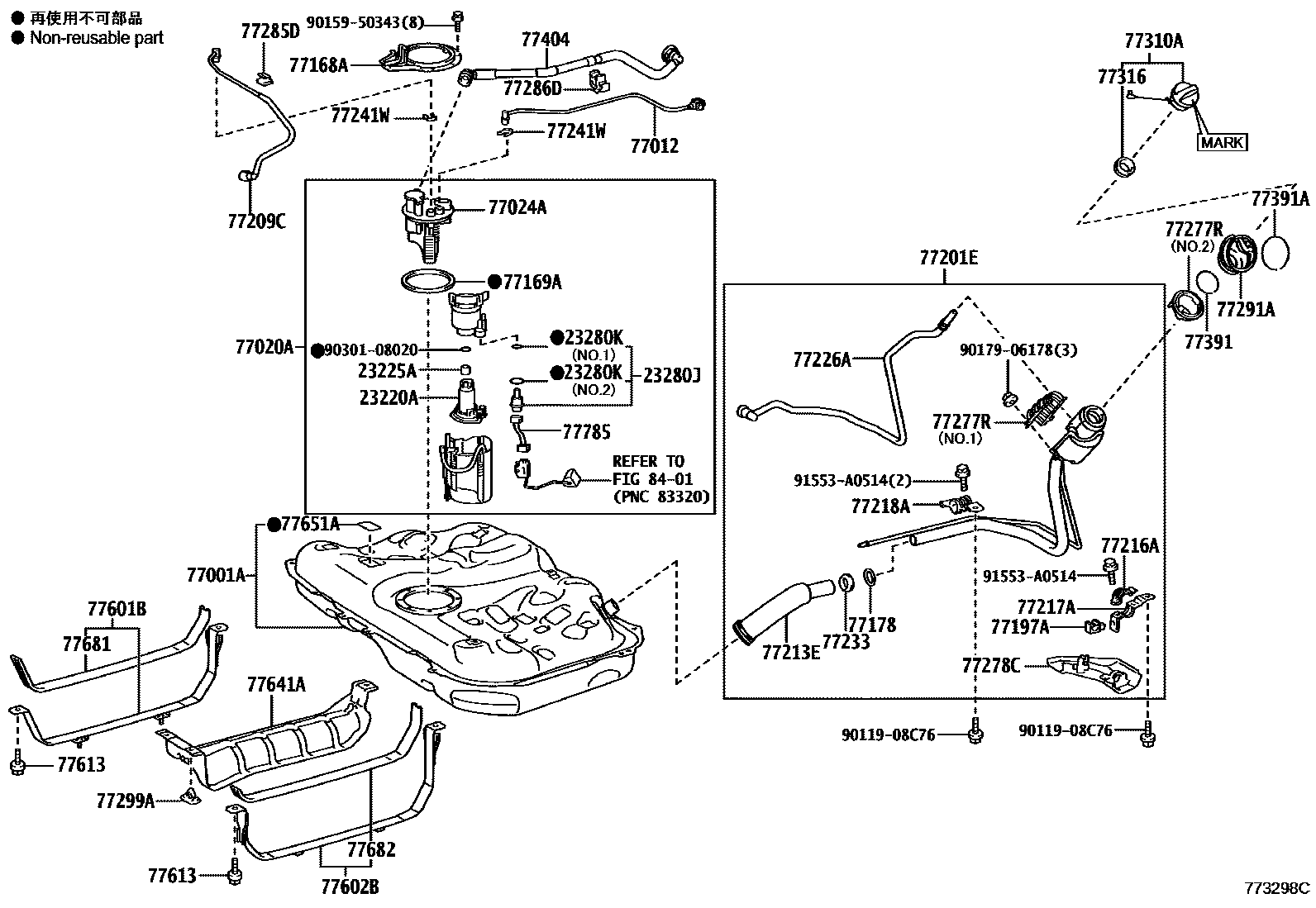

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77001ATANK SUB-ASSY, FUEL
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77233JOINT, FUEL HOSE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77285DCLAMP, FUEL TUBE, NO.1
77286DCLAMP, FUEL TUBE, NO.2
77291ASHIELD, FUEL TANK FILLER PIPE
77299ACLAMP, FUEL TUBE, NO.5
77310ACAP ASSY, FUEL TANK
MARK B:REFER ILLUST.
MARK S:REFER ILLUST.
MARK V:REFER ILLUST.
MARK A:REFER ILLUST.
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
8401
9011908C76
main90119-08C76
9015950343
main90159-50343
9017906178
main90179-06178
9030108020
main90301-08020
91553A0514
main91553-A0514
46 parts on this diagram · 5 diagrams in section
