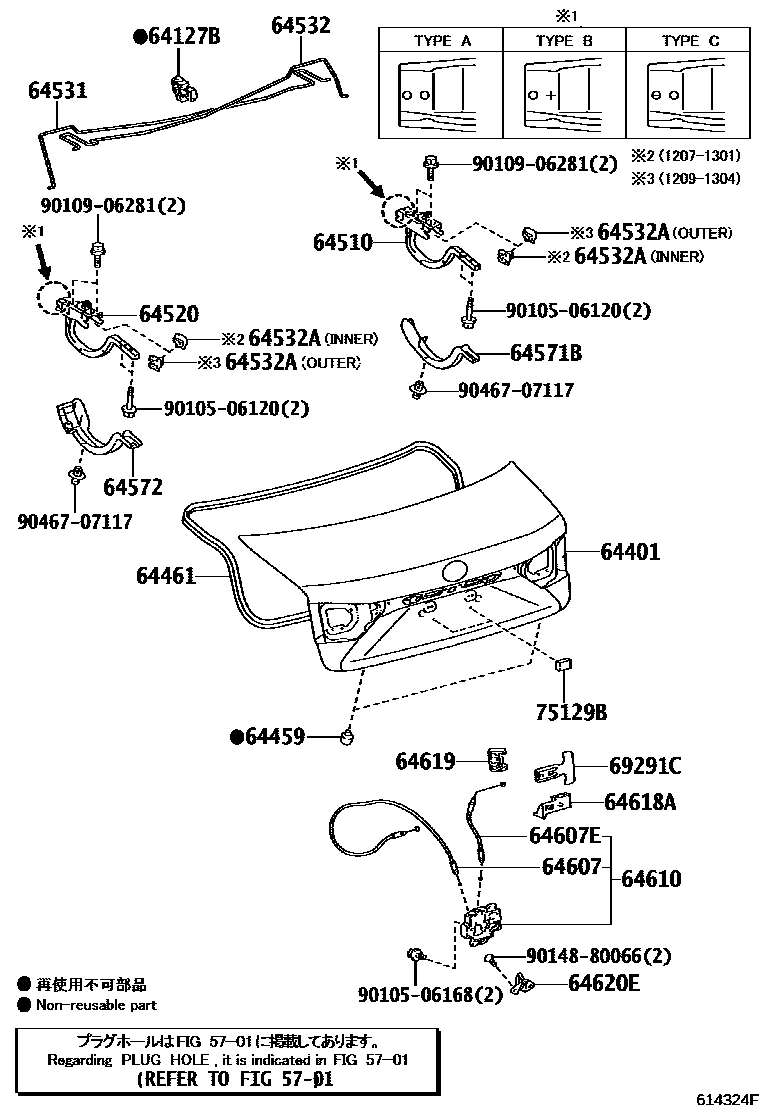

LUGGAGE COMPARTMENT DOOR & LOCK

5701

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-30150i201206-201507

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-33600i201206-201408

main64401-33610i201408-201507

HAWAII SPEC&D PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-EMVN & DVD & *MAR & 15SPEAKER

main64401-33610i201408-201507

USA POSSESSIONS SPEC&D PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-*DA & CD & 8SPEAKER

main64401-33610i201408-201507

USA POSSESSIONS SPEC&D PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-EMVN & DVD & 8SPEAKER

main64401-33610i201408-201507

USA POSSESSIONS SPEC&D PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-EMVN & DVD & *MAR& 15SPEAKER

main64401-33610i201408-201507

KOREA SPEC&D PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-EMVN & DVD & 8SPEAKER & DAB

main64401-33610i201408-201507

KOREA SPEC&D PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB

main64401-33610i201408-201507

PUERTO RICO SPEC&D PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-*DA & CD & 8SPEAKER

main64401-33610i201408-201507

PUERTO RICO SPEC&D PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-EMVN & DVD & 8SPEAKER

main64401-33610i201408-201507

PUERTO RICO SPEC&D PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-EMVN & DVD & *MAR & 15SPEAKER

main64401-33610i201408-201507

HAWAII SPEC&D PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-*DA & CD & 8SPEAKER

main64401-33610i201408-201507

HAWAII SPEC&D PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-EMVN & DVD & 8SPEAKER

main64401-33610i201507

main64401-33630i201206-201408

main64401-33640i201408-201507

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116i201206-201507

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-33100i201206-201507

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-33150i201206-201302

TYPE A:REFER ILLUST.

sub64510-33151

main64510-33151i201302-201507

TYPE A:REFER ILLUST.

main64510-33160i201206-201302

TYPE B:REFER ILLUST.

sub64510-33161

main64510-33161i201302-201507

TYPE B:REFER ILLUST.

sub64510-33151

main64510-33170i201206-201302

TYPE C:REFER ILLUST.

sub64510-33171

main64510-33171i201302-201507

TYPE C:REFER ILLUST.

sub64510-33151

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-33040i201206-201302

TYPE A:REFER ILLUST.

sub64520-33041

main64520-33041i201302-201507

TYPE A:REFER ILLUST.

main64520-33050i201206-201302

TYPE B:REFER ILLUST.

sub64520-33051

main64520-33051i201302-201507

TYPE B:REFER ILLUST.

sub64520-33041

main64520-33060i201206-201302

TYPE C:REFER ILLUST.

sub64520-33061

main64520-33061i201302-201507

TYPE C:REFER ILLUST.

sub64520-33041

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-33250i201206-201507

EASY CLOSER DOOR-WITH(DOOR & TRUNK) & POWER TRUNK LID

main64531-33250i201507

AUTO & EASY CLOSER DOOR-WITH

main64531-33280i201206-201507

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-33250i201507

AUTO & EASY CLOSER DOOR-WITH

main64532-33250i201206-201507

EASY CLOSER DOOR-WITH(DOOR & TRUNK) & POWER TRUNK LID

main64532-33280i201206-201507

64532ABUSH(FOR LUGGAGE DOOR HINGE TORSION BAR)

main64519-33010i201207-201301

RH,INNER

main64519-33020i201207-201301

LH,INNER

main64519-33030i201209-201304

RH,OUTER

main64519-33040i201209-201304

LH,OUTER

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-33050i201206-201507

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-33030i201206-201507

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-33230i201206-201312

sub64607-33231

main64607-33231i201401-201507

64607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-33240i201206-201507

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-33180i201206-201507

64618ACLAMP, LUGGAGE LOCK CONTROL CABLE

main64618-30010-C0i201206-201507

BLACK,TRIM0#,1#,2#

main64618-30010-C0i201507

BLACK

64619PLATE, LUGGAGE LOCK CONTROL CABLE

main64619-30030-C0i201507-201710

BLACK,TRIM0#,1#,2#,4#,5#

main64619-30030-C0i201507-201710

BLACK,TRIM0#,1#,2#,5#

main64619-30030-C0i201206-201507

BLACK,TRIM0#,1#,2#,3#

main64619-30030-C0i201206-201507

BLACK,TRIM0#,1#,2#

main64619-30030-C1i201710

BLACK,TRIM0#,1#,2#,5#

main64619-30030-C1i201710

BLACK,TRIM0#,1#,2#,4#,5#

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30130i201206-201507

69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE

main69291-53010i201206-201210

sub69291-53012

main69291-53012i201211-201507

75129BCUSHION, REAR LICENCE PLATE

main75129-13020i201206-201208

main75129-30010i201209-201507

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9014880066

main90148-80066

9046707117

main90467-07117

25 parts on this diagram · 2 diagrams in section
