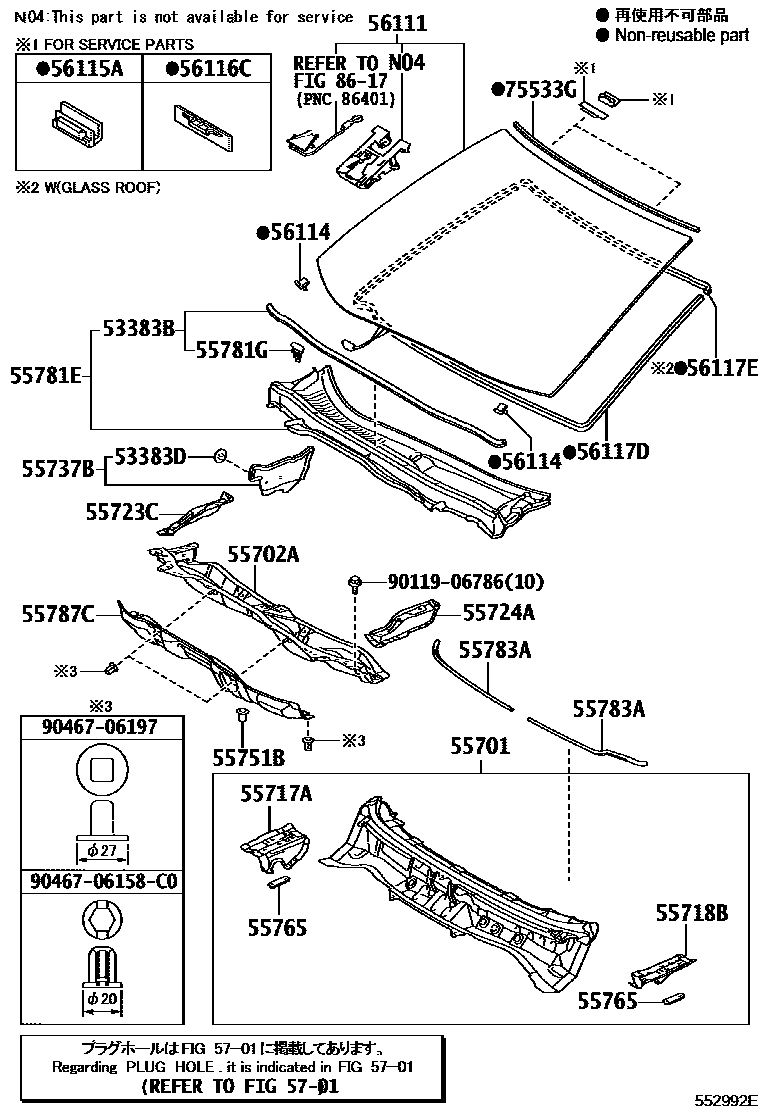

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55701PANEL SUB-ASSY, COWL
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55724AREINFORCEMENT, COWL TOP SIDE, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55751BHOSE, COWL WATER EXTRACT, NO.1
55765BRACKET, HOOD DAMPER MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
55787CINSULATOR, COWL TOP PANEL, NO.1
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
*D,L=2914
56117EDAM, WINDOW GLASS ADHESIVE
5701
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906786
main90119-06786
9046706158C0
main90467-06158C0
9046706197
main90467-06197
27 parts on this diagram · 2 diagrams in section
