SPARE WHEEL CARRIER

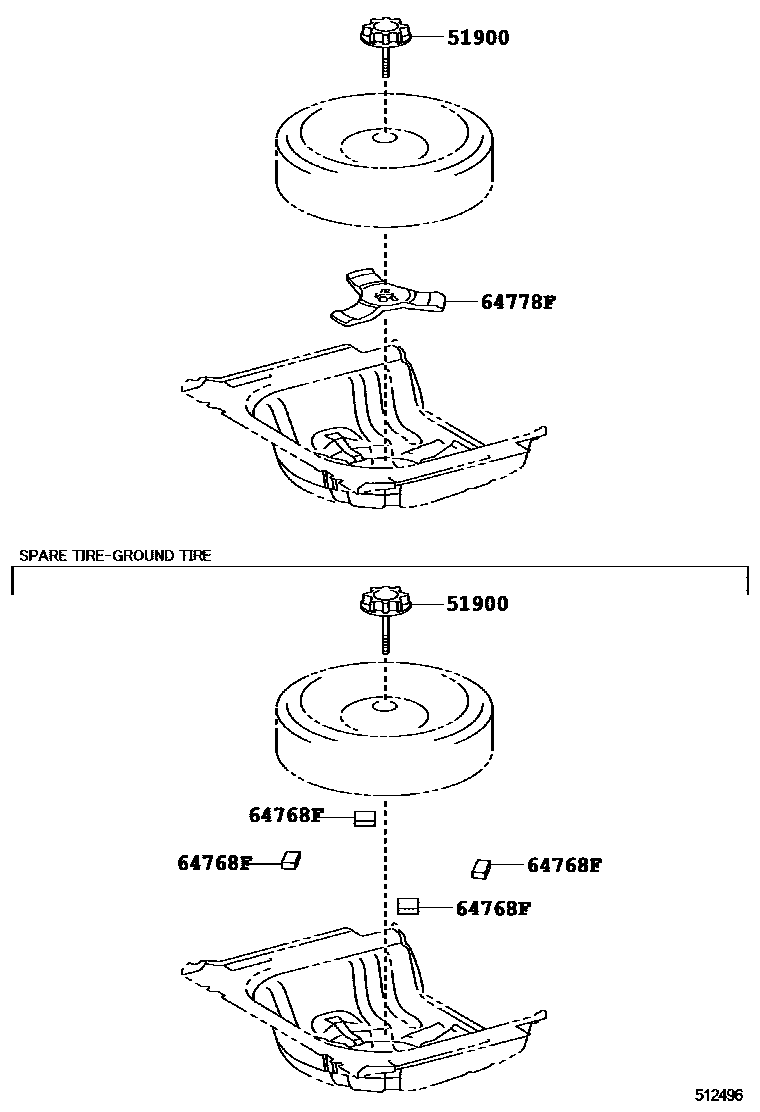

Parts diagram

51900CARRIER ASSY, SPARE WHEEL

main51931-20050supersedes 51931-33270i201206-201308

MEXICO SPEC

64768FSTOPPER, JACK COVER

main64768-33010×4i201206-201308

MEXICO SPEC

64778FPROTECTOR, SPARE WHEEL

main64778-33070i201206-201507

3 parts on this diagram · 1 diagram in section
