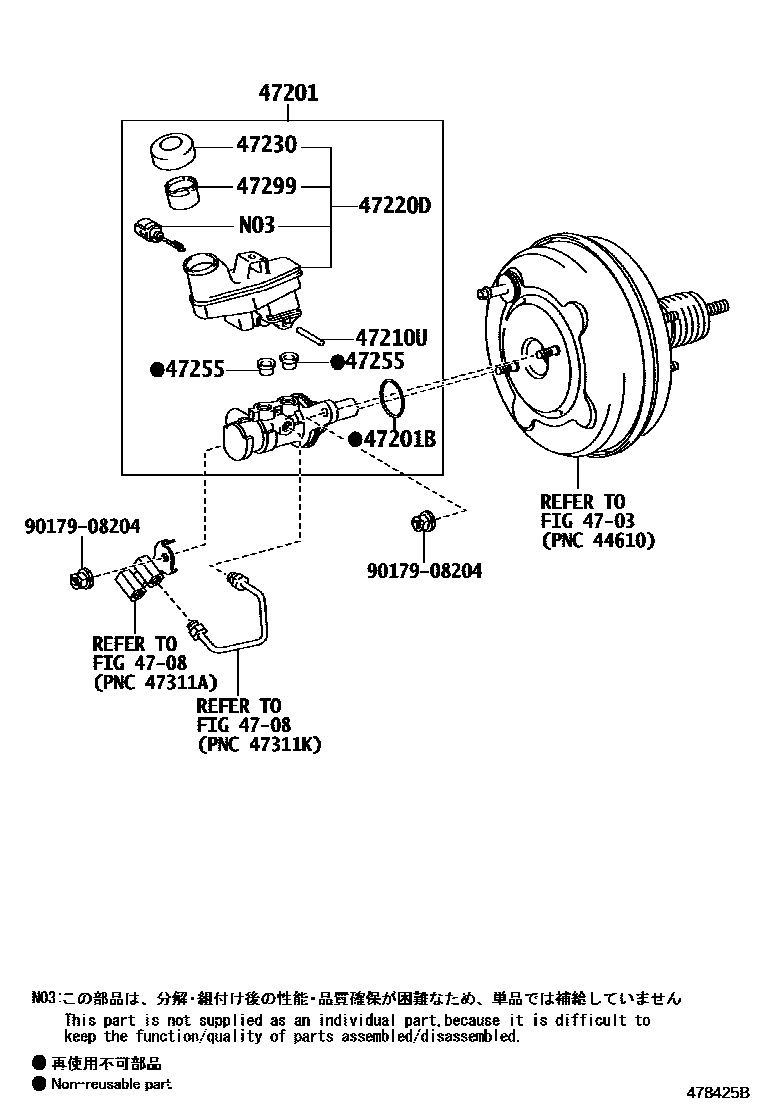

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33600iGSV60201206-201304

sub47201-33601

main47201-33601iGSV60201305-201601

sub47201-33602

main47201-33602iGSV60201602

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iGSV60201206-201507

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iGSV60201206-201507

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-33120iAVV60201206-201507

main47220-33280iGSV60201206-201507

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iAVV60201206-201507

main47230-48090iGSV60201206-201411

sub47230-48091

main47230-48091iGSV60201411-201507

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001iGSV60201206-201507

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iGSV60201206-201507

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
