DISC WHEEL & WHEEL CAP

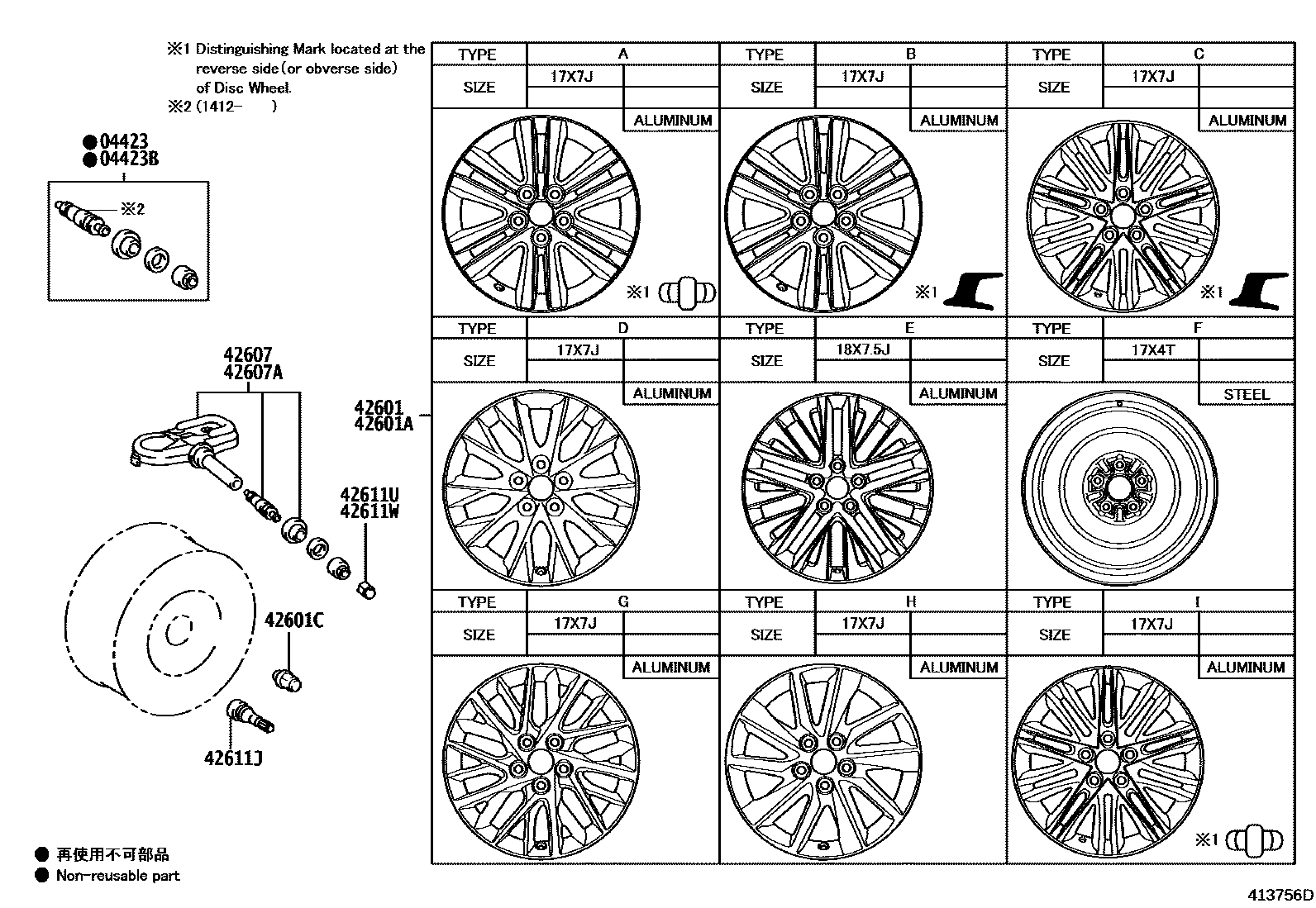

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i201206-201412
sub04423-33060
main04423-33060i201412-201507
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33030i201206-201412
USA POSSESSIONS SPEC
sub04423-33060
main04423-33030i201206-201412
USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM
sub04423-33060
main04423-33030i201206-201408
MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMINUM
sub04423-33060
main04423-33060i201412-201507
USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM
main04423-33060i201412-201507
USA POSSESSIONS SPEC
42601WHEEL, DISC
main42611-33870i201708
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE, ALUMI,TYPE G:REFER ILLUST.
main42611-33870i201708
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE, ALUMI,TYPE G:REFER ILLUST.
main42611-33880i201206-201402
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33881i201403-201507
17X7J, #,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33890i201206-201402
17X7J, #,CANADA SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33891i201403-201507
17X7J, #,CANADA SPEC,TYPE A:REFER ILLUST.
sub42611-33892
main42611-33A00i201206-201407
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A01i201408-201507
17X7J, #,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A10i201206-201407
17X7J, #,CANADA SPEC,TYPE B:REFER ILLUST.
sub42611-33A11
main42611-33A11i201408-201507
17X7J, #,CANADA SPEC,TYPE B:REFER ILLUST.
sub42611-33A12
main42611-33A20i201206-201402
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A21
main42611-33A21i201403-201507
17X7J, #,TYPE D:REFER ILLUST.
sub42611-33A22
main42611-33A30i201206-201402
17X7J, #,CANADA SPEC,TYPE D:REFER ILLUST.
sub42611-33A31
main42611-33A31i201403-201507
17X7J, #,CANADA SPEC,TYPE D:REFER ILLUST.
sub42611-33A32
main42611-33A60i201408-201507
18X7.5J, #,TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM,TYPE E:REFER ILLUST.
main42611-33A80i201408-201507
17X7J, #,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub42611-33A81
main42611-33B00i201507-201604
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B00i201507-201604
17X7J, #,PUERTO RICO SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B01
main42611-33B01i201605
17X7J, #,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,PUERTO RICO SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B01i201605
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B10i201507-201604
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
sub42611-33B11
main42611-33B11i201605
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMI GRAY,TYPE G:REFER ILLUST.
main42611-33B40i201507-201605
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B41
main42611-33B41i201606
17X7J, #,TYPE C:REFER ILLUST.
sub42611-33B42
main42611-33B50i201507-201605
17X7J, #,CANADA SPEC,TYPE C:REFER ILLUST.
sub42611-33B51
main42611-33B51i201606
17X7J, #,CANADA SPEC,TYPE C:REFER ILLUST.
sub42611-33B52
main42611-33B60i201507-201609
17X7J, #,TYPE H:REFER ILLUST.
sub42611-33B61
main42611-33B61i201610
17X7J, #,TYPE H:REFER ILLUST.
sub42611-33B71
main42611-33B70i201507-201609
17X7J, #,CANADA SPEC,TYPE H:REFER ILLUST.
sub42611-33B71
main42611-33B71i201610
17X7J, #,CANADA SPEC,TYPE H:REFER ILLUST.
main42611-33D40i201608
17X7J, #,TYPE I:REFER ILLUST.
sub42611-33D50
main42611-33D50i201608
17X7J, #,CANADA SPEC,TYPE I:REFER ILLUST.
sub42611-33B52
main4261A-33080i201206-201405
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201206-201405
17X7J, #,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33080i201206-201405
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33081i201408-201507
17X7J, #,PUERTO RICO SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201507
17X7J, #,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33081i201406-201408
17X7J, #,KOREA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-33082
main4261A-33090i201206-201402
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-33091
main4261A-33091i201403-201408
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-33092
main4261A-33100i201507
18X7.5J, #,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMI,TYPE E:REFER ILLUST.
main4261A-33100i201507
18X7.5J, #,TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMI,TYPE E:REFER ILLUST.
main4261A-33100i201507
18X7.5J, #,PUERTO RICO SPEC&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMI,TYPEE:REFER ILLUST.
main4261A-33100i201507
18X7.5J, #,KOREA SPEC&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMI,TYPE E:REFER ILLUST.
main4261A-33100i201408-201507
18X7.5J, #,PUERTO RICO SPEC&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM,TYPE E:REFER ILLUST.
main4261A-33100i201206-201507
18X7.5J, #,TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM,TYPE E:REFER ILLUST.
main4261A-33100i201206-201507
18X7.5J, #,KOREA SPEC&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM,TYPE E:REFER ILLUST.
main4261A-33110i201206-201507
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM,TYPE E:REFER ILLUST.
main4261A-33110i201507
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMI,TYPE E:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-33510i201206-201802
17X4T,TYPE F:REFER ILLUST.
main42611-33880i201206-201402
17X7J, #,MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMINUM,TYPE A:REFERILLUST.
sub42611-33881
main42611-33880i201206-201402
17X7J, #,USA POSSESSIONS SPEC,TYPE A:REFER ILLUST.
sub42611-33881
main42611-33881i201403-201408
17X7J, #,MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMINUM,TYPE A:REFERILLUST.
sub42611-33891
main42611-33881i201403-201507
17X7J, #,USA POSSESSIONS SPEC,TYPE A:REFER ILLUST.
sub42611-33891
main42611-33A00i201206-201407
17X7J, #,USA POSSESSIONS SPEC,TYPE B:REFER ILLUST.
sub42611-33A01
main42611-33A00i201206-201407
17X7J, #,MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMINUM,TYPE B:REFERILLUST.
sub42611-33A01
main42611-33A01i201408-201507
17X7J, #,USA POSSESSIONS SPEC,TYPE B:REFER ILLUST.
sub42611-33A02
main42611-33A20i201206-201402
17X7J, #,USA POSSESSIONS SPEC,TYPE D:REFER ILLUST.
sub42611-33A21
main42611-33A21i201403-201507
17X7J, #,USA POSSESSIONS SPEC,TYPE D:REFER ILLUST.
sub42611-33A22
main42611-33A80i201408-201507
17X7J, #,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub42611-33A81
main42611-33E20i201802
17X4T,TYPE J:REFER ILLUST.
main4261A-33080i201206-201405
17X7J, #,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-33081
main4261A-33081i201406-201507
17X7J, #,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-33082
42601CNUT, HUB (FOR AXLE)
main90942-01033i201206-201507
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-30060i201206-201507
main42607-30070i201206-201404
KOREA SPEC
sub42607-30071
main42607-30070i201206-201404
KOREA SPEC&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM
sub42607-30071
main42607-30070i201206-201408
KOREA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM
sub42607-30071
main42607-30071i201405-201507
KOREA SPEC
main42607-30071i201405-201507
KOREA SPEC&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM
main42607-30071i201507
KOREA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMI GRAY
main42607-30071i201507
KOREA SPEC&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMI
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-30060i201206-201408
MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMINUM
main42607-30060i201206-201507
USA POSSESSIONS SPEC
main42607-30060i201206-201507
USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i201206-201507
42611UCAP, TIRE VALVE
main90942-05037i201206-201207
main90942-05042i201207-201507
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05037i201206-201207
USA POSSESSIONS SPEC
main90942-05037i201206-201207
USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM
main90942-05037i201206-201207
MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMINUM
main90942-05042i201207-201408
MEXICO SPEC&TIRE & DISC WHEEL-215/55R17 SUMMER TIRE ALUMINUM
main90942-05042i201207-201507
USA POSSESSIONS SPEC
main90942-05042i201207-201507
USA POSSESSIONS SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM

10 parts on this diagram · 3 diagrams in section
